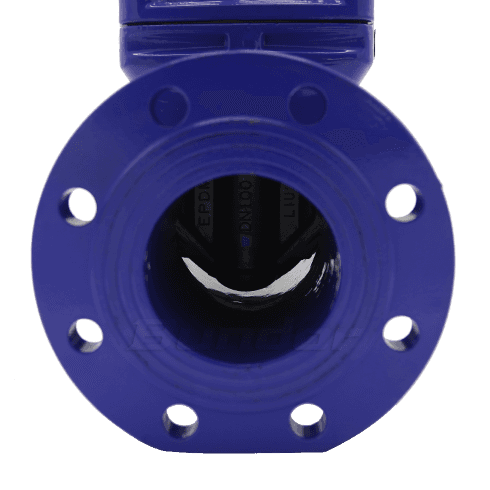

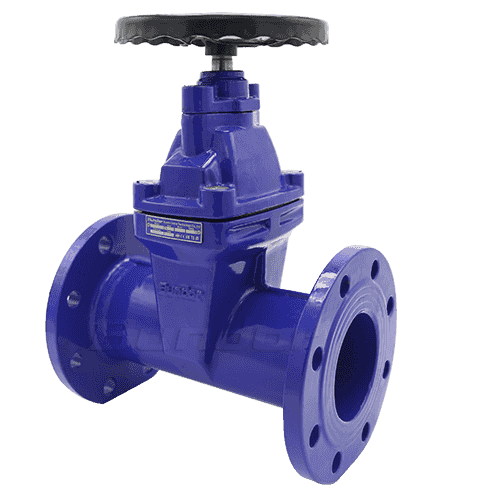

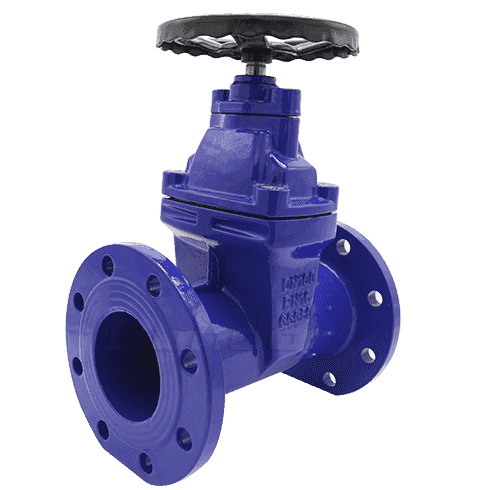

DIN 3352 F5 Resilient Seated Flanged Gate Valves

Size Range: 2''-48''/DN50-DN1200

Pressure: 10K

Body Materials: DI

Seat Materials: NBR/EPDM/PTFE

Disc Materials: DI+NBR/EPDM/PTFE

Stem Materials: 45#/2Cr13/ 304/316stainless steel

INTRODUTCTION

ADVANTAGES

  • Independent two-dimensional code identification

    Scanning code can query the inspection results of each stage in the production process of products to ensure the quality of products.

  • Provide material inspection report of main parts

    All bonde products can provide the material inspection report of the main parts.

  • The bolt has strong corrosion resistance

    The bolt is made of 304 material, which has stronger corrosion resistance.

  • Pay two back if one bad

    By CPIC 10 million quality underwrite, quality assurance 2 years, because product itself quality problem pays unconditionally.

  • The sign has a beautiful appearance and strong connection

    Laser marking, clear writing, long life.Use stainless steel rivet to fix, the appearance is more beautiful, the connection is more firm.

  • Heat-shrinkable film for independent packaging

    PE thermal shrinkable film is used to package the valve independently, and built-in desiccant, to isolate air dust, avoid damp pollution valve.

FEATURES

Product introduction:
The valves disc is rubber-packed to get excellent sealing effect by the rubber's resilient deformation.
Non-rising resilient seated gate valves solve the problem in general gate valves such as leakage, rusting etc.
and saves installation space. It is used widely in tap water industry, sewage treatment, shipping construction,
petroleum, chemicals, food, pharmacy, textile, electric power, metallurgy and energy system's pipeline to adjust and shut off fluids.

PARAMETERS

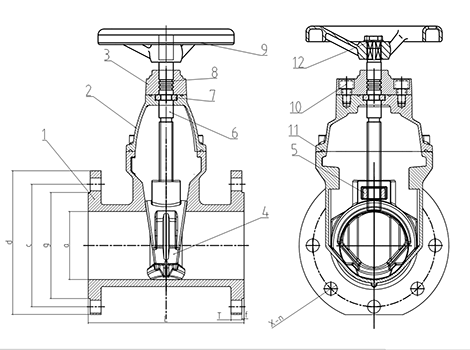

DN L-mm d-mm c-mm x-n T-mm  f-mm g-mm working pressure
PN10 PN16 PN10 PN16 10kg 16kg
50 250 165 165 125 125 4-Φ19 19 3 99 PN10/16
65 270 185 185 145 145 4-Φ19 19 3 118
80 280 200 200 160 160 8-Φ19 19 3 132
100 300 220 220 180 180 8-Φ19 19 3 156
125 325 250 250 210 210 8-Φ19 19 3 184
150 350 285 285 240 240 8-Φ23 19 3 211
200 400 340 340 295 295 8-Φ23 12-Φ23 20 3 266
250 450 395 405 350 355 12-Φ23 12-Φ26 22 3 319
300 500 445 460 400 410 12-Φ23 12-Φ26 24.5 4 370
