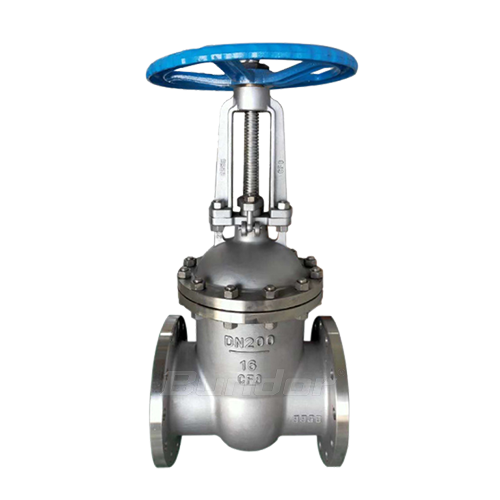

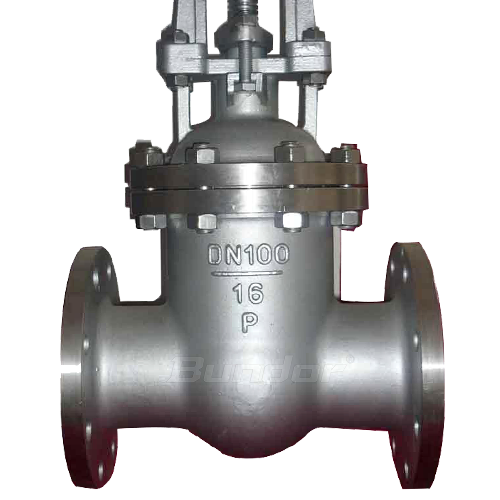

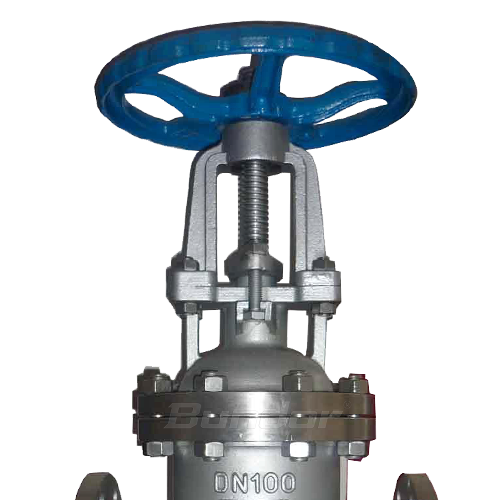

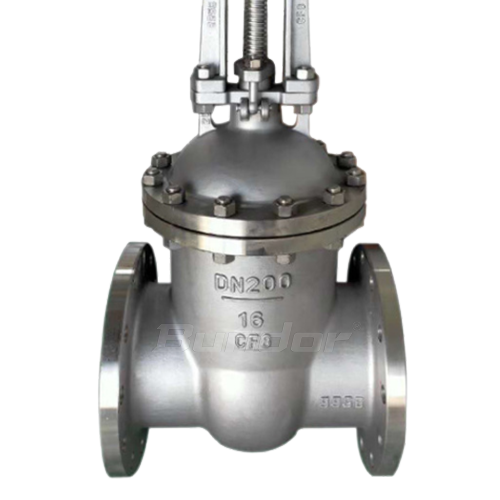

Stainless Steel Gate Valve

Size Range: DN50-DN400

Pressure: PN16/150LB

Body Materials: 304

Seat Materials: 304

Disc Materials: 304

Stem Materials: 304

INTRODUTCTION

ADVANTAGES

  • Precision casting valve body

    Precision casting valve body, smooth appearance, 2 times shot blasting after appearance processing, no trachoma.

  • CNC lathe processing

    CNC lathe processing of internal parts, guaranteed accuracy.

  • Heavy type valve body

    Heavy type valve body.

  • Inverted seal treatment

    Inverted seal treatment of contact surface between bonnet and stem to avoid leakage.

  • Pickling passivation treatment

    The corrosion resistance was improved due to the body adopt pickling passivation treatment.

  • Strict quality inspection

    Each valve will be inspected for shell and seal pressure before leaving factory.

FEATURES

Features:
Medium used: Water,Weak corrosive medium etc.
Suitable temperature:0-325℃
Application field:Water treatment, petrochemical, food and medicine, electric energy, metallurgy, etc.

The wedge is the opening and closing parts of gate valve , the wedge direction of motion is perpendicular to fluid direction. The gate valve can't adjust or throttled ,it is can only be full open and close. The wedge has two seals and the seals form a wedge.  Stainless steel  gate valve including SS304 and SS316 etc. It is widely used in chemical,  medicine, food machinery and other industry.

PARAMETERS

Optional Body Seat Disc Shaft Actuator Pressure
CF3/ CF3M/CF8/ CF8M SS/alloy steel CF3/ CF3M/CF8/CF8M 2Cr13/ 304/316 Handwheel/
Bevel Gear/ Motorized/
Pneumatic
PN16/PN25/PN40/150LB

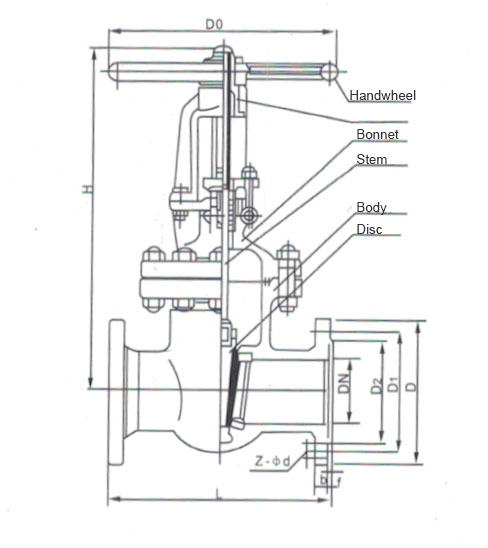

Name Design  Face to Face Pressure Test Connect  Flange
Reference standard GB/T 12234
API 600
GB/T 12221
ASME B16.10
GB/T 13927
API 598
JB/T 79
ASME B16.5

Name Body Disc Stem Seat Handwheel
Material 304 304 304 304 DI

DN PN16 150LB
DN NPS(英寸) L D D1 Z-φd L D D1 Z-φd
50  2'' 250 160 125 4-18 178 152 120.5 4-19
65  2  1/2'' 265 180 145 4-18 190 178 139.5 4-19
80  3'' 280 195 160 8-18 203 190 152.5 4-19
100  4'' 300 215 180 8-18 229 229 190.5 8-19
125  5'' 325 245 210 8-18 254 254 216 8-22
150  6'' 350 280 240 8-22 267 279 241.5 8-22
200  8'' 400 335 295 12-22 292 343 298.5 8-22
250  10'' 450 405 355 12-26 330 406 362 12-25
300  12'' 500 460 410 12-26 356 483 432 12-25
350 14'' 550 520 470 16-26 381 533 476 12-29
400 16'' 600 580 525 16-30 406 597 540 16-29
