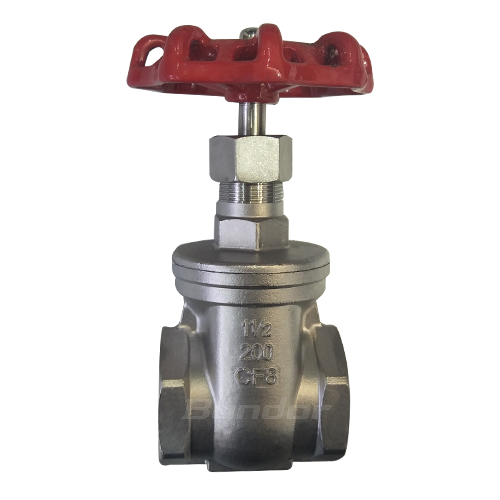

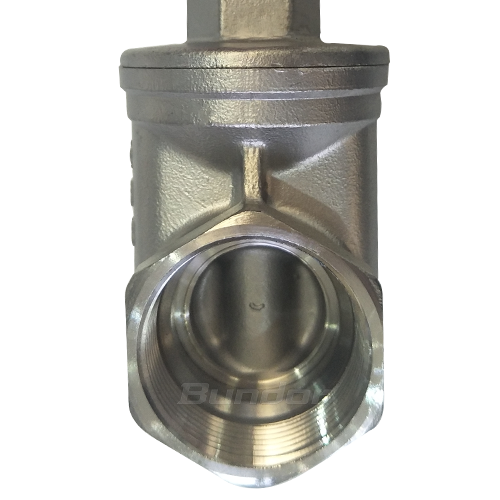

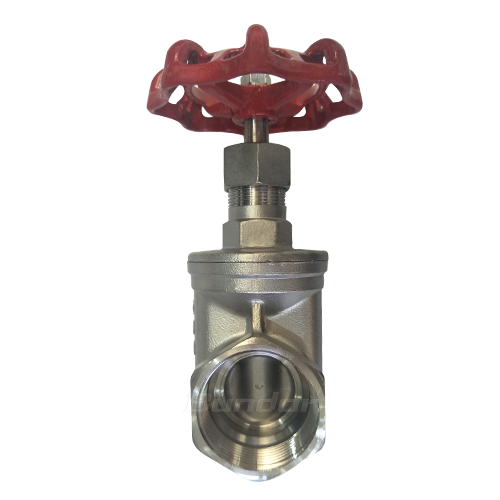

Stainless Steel Thread Gate Valve

Size Range: DN15-DN100

Pressure: PN16

Body Materials: CF8

Stem Materials: 304

INTRODUTCTION

ADVANTAGES

  • 100% guaranteed for laboratory testing

    The chemical composition and mechanical properties of the main material meet the requirements of the national regulations, 100% guaranteed for laboratory testing.

  • Ensure product accuracy

    All valve bodies and parts are processed by CNC machine tools to ensure product accuracy.

  • Long-term storage

    Use kerosene and anti-rust oil to clean the entire product by high-pressure spray before assembly. After pressure test, clean the pressure test medium and spray with anti-rust oil. The cleanliness of the inner cavity meets the requirements of JB/T7748 sta

  • Ensure pressure testing

    Each valve will be tested for pressure in accordance with national standards before leaving the factory, unqualified products will never leave the factory.

  • Prevent damage when transport

    Each valve adopts special waterline blocking to prevent damage of connecting surface when transport.

  • Thread mode can be customized production

    G thread, NPT thread, BSP and other customized threads can be provided according to customer requests.

FEATURES

Features:
Medium used: Water, steam, oil etc.
Suitable temperature:-20℃~180℃
Application field:Water treatment, food, electric power, petrochemical industry, etc.

The opening and closing part of the stainless steel threaded gate valve is a plug-shaped valve disc, the sealing surface is flat or conical, and the valve disc moves linearly along the center line of the fluid. The structure is simple, the maintenance are more convenient, and the working stroke is small, the opening and closing time is short. Good sealing performance, small friction between the sealing surfaces, and long life.

PARAMETERS

Executive standard:
Name Design and manufacture Pressure Test
Reference standard GB/T 12234 GB/T 13927

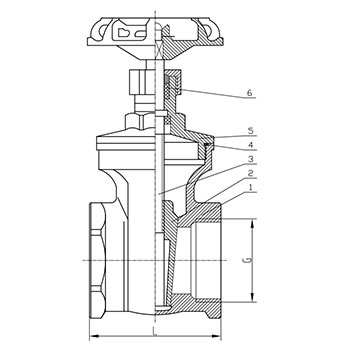

Material of Main Parts:
Name 1-Body 2-Wedge 3- Stem 4-Gasket 5-Bonnet
Material CF8 CF8 304 PTFE CF8

Dimensions:
DN G L
15 1/2'' 52
20 3/4'' 57
25 1'' 61
32 1 1/4'' 70
40 1 1/2'' 74
50 2'' 83
65 2 1/2'' 106
80 3'' 118
100 4'' 129
