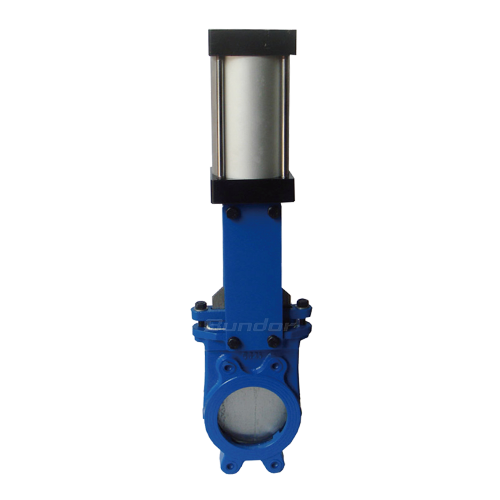

Pneumatic Wafer Knife Gate Valve

Size Range: DN50-DN300

Pressure: PN10

Body Materials: WCB

Seat Materials: Rubber/Stainless Steel/Hard Alloy/PTFE

Disc Materials: SS304

Stem Materials: SS420

INTRODUTCTION

ADVANTAGES

  • No trachoma

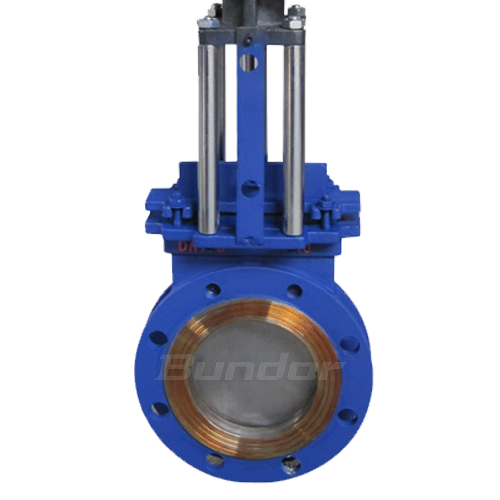

    Precision casting valve body, fine appearance, no trachoma.

  • Good sealing porformance

    Valve wedge is burnished smoothly 3 times and polished 5 times to ensure the sealing porformance.

  • Small friction, not easy to deform

    Valve stem is equipped with bearing to reduce friction.

  • Rubber coated PTFE packing seal

    Rubber coated PTFE packing seal, which can increase the elasticity and reduce the leakage of upper seal.

  • Reliable connection

    U-shaped sealing ring of the seat to ensure the strong conbation between valve seat and body.

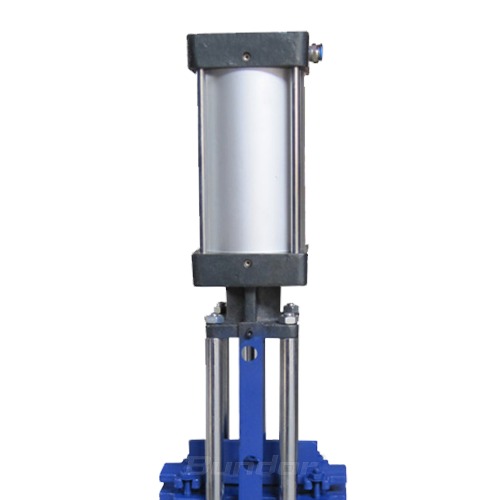

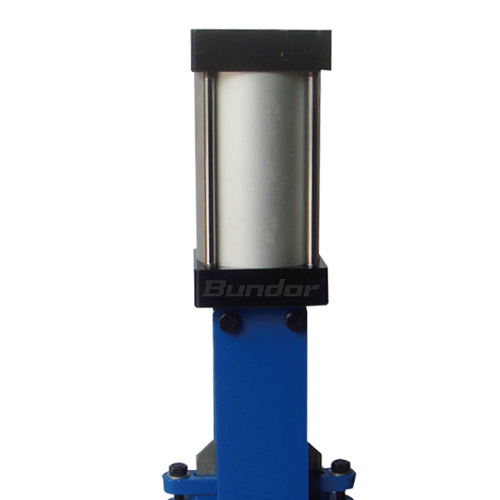

  • IP67 protection level

    The protection level of pneumatic actuator is IP67.

FEATURES

Knife gate valve is also named  slurry valve, mud valve. Its opening and closing part is a gate.The medium is cut by a blade-shaped gate that can cut fiber materials; It rises and falls in the side guide groove, and is pressed against the valve seat by the lugs at the bottom. If a higher medium tightness is required, an O-shaped sealing valve seat can be used to achieve two-way sealing. The knife gate valve has a small installation space, low working pressure, long service life and simple maintenance.

Suitable Medium:Molasses, pulp, sewage, coal pulp, ash, slag water mixture.

Working Temperature: 0℃~80℃

Application field:Chemistry, water treatment, coal power plants, food, paper, petroleum.

PARAMETERS

Optional 1 2 3 7 8
Body Seat Wedge Stem Actuator
DI/WCB/CF3/ CF3M/CF8/ CF8M Rubber/Stainless Steel/Hard Alloy/PTFE WCB/201/CF3/ CF3M/CF8/ CF8M 2Cr13/304 Pneumatic actuator

Name Design and manufacture Face to face Length Pressure Test  End Flange
Reference Standard JB/T 8691-2013
MSS SP-81
GB/T 12221-2005
MSS SP-81
GB/T 13927-2008 GB/T 9113-2010
DIN EN 1092-1
ASME B16.5

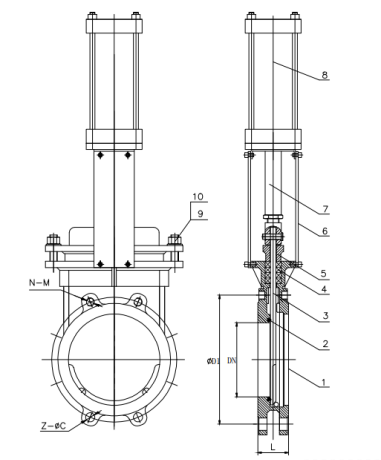

Name 1-Body 2-Seat 3-Wedge 7-Stem 8-Actuator
Material WCB EPDM SS304 SS420 Pneumatic actuator

Size   PN10 PN16 150LB
DN NPS(inch) L D1 N-M Z-φC D1 N-M Z-φC D1 N-UNC Z-φC
50  2'' 48 125 2-M16 2-φ18 125 2-M16 2-φ18 120.7 2-UNC5/8-11 2-φ19
65  2  1/2'' 48 145 2-M16 2-φ18 145 2-M16 2-φ18 139.7 2-UNC5/8-11 2-φ19
80  3'' 51 160 2-M16 2-φ18 160 2-M16 2-φ18 152.4 2-UNC5/8-11 2-φ19
100  4'' 51 180 2-M16 2-φ18 180 2-M16 2-φ18 190.5 2-UNC5/8-11 2-φ19
125  5'' 57 210 2-M16 2-φ18 210 2-M16 2-φ18 215.9 2-UNC3/4-10 2-φ22
150  6'' 57 240 2-M20 2-φ22 240 2-M20 2-φ22 241.3 2-UNC3/4-10 2-φ22
200  8'' 70 295 2-M20 2-φ22 295 2-M20 2-φ22 298.5 2-UNC3/4-10 2-φ22
250  10'' 70 350 4-M20 2-φ22 355 4-M24 2-φ26 362 4-UNC7/8-9 2-φ25
300  12'' 76 400 4-M20 2-φ22 410 4-M24 2-φ26 431.8 4-UNC7/8-9 2-φ25
