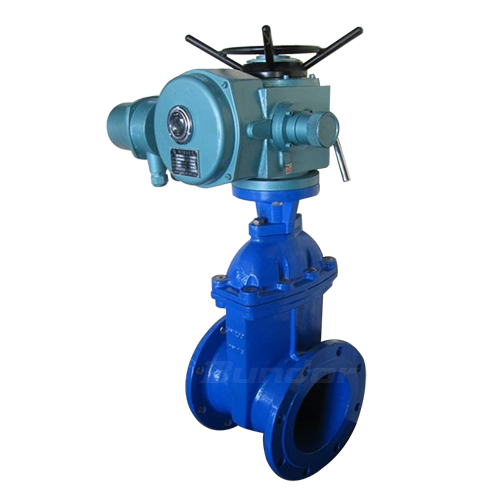

Electric Gate Valve

ADVANTAGES

High quality body material

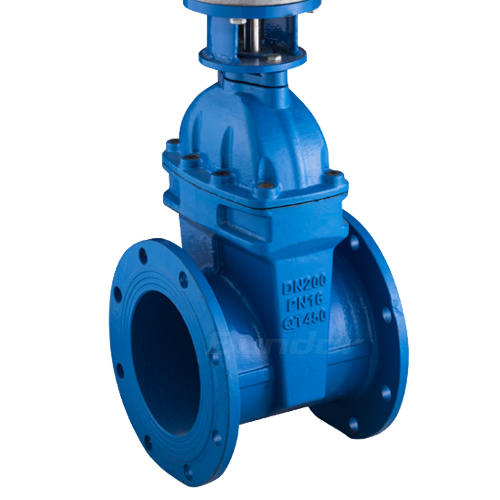

QT450-10 ductile iron body, 3 levels spheroidization rate, the tensile strength is 450MPa, the extension rate is over 10%. It is not easy to crack and freeze crack.

Prevent body corrosion and rust

Epoxy coating for both valve inside and outside. Over 250μm coating thickness. Effectively prevent valve body corrosion and rust. It can be used in sewage system.

High quality EPDM rubber seal

50% rubber content EPDM coated DI wedge. The rubber is firmly coated with wedge, which is not easy to fall off.

Small friction Avoid leakage

2Cr13 valve stem. Three O-ring sealing design. Reduce frictional resistance when switching, avoid medium exposure.

Switch smoother

Brass stem nut and positioning device, switch smoother and avoids jamming during operation.

High protection level

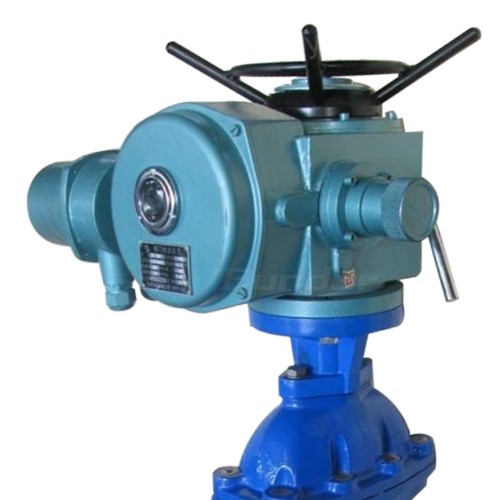

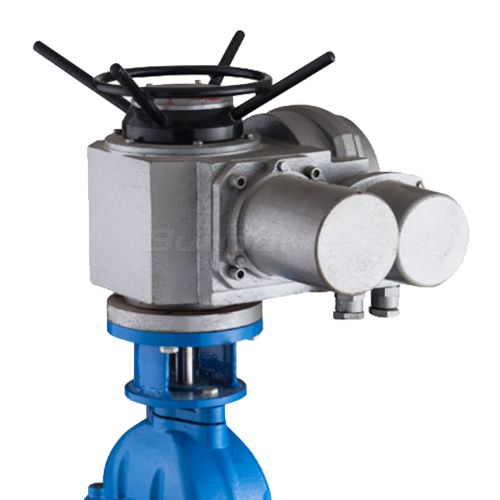

IP65 protection level electric actuator.

FEATURES

The top-mounted structure of the electric soft-sealed gate valve reduces the connecting bolts of the valve body, enhances the reliability of the valve and can overcome the influence of the weight of the system on the normal operation of the valve.
It overcomes the defects of general gate valve such as poor sealing, elastic fatigue and easy corrosion. It uses the compensation effect of the elastic gate plate to produce a small amount of deformation to achieve a good sealing effect. It has the obvious advantages of light switch, reliable sealing, good elastic memory and long service life.

Suitable Medium：Water, steam, oil, etc.
Working Temperature: 0～80℃
Application field：Electricity, construction, environmental protection, water treatment, water supply and drainage, etc.

Optional	Body	Seat	Disc	Stem	Actuator
Optional	DI/WCB/CF3/ CF3M/CF8/ CF8M	Rubber/Cr Stainless steel /304/316	DI/WCB/CF3/ CF3M/CF8/CF8M/	2Cr13/304/316	Handle wheel/ Bevel gear/ Electric/ Pneumatic

Name	Design and manufacture	Face to face Length	Pressure Test	Top Flange
Reference standard	CJ/T 216 ANSI C515	GB/T 12221 ASME B16.10	CJ/T 216 API 598	GB/T 17241.6 ASME B16.1

Nominal size			PN16		150LB

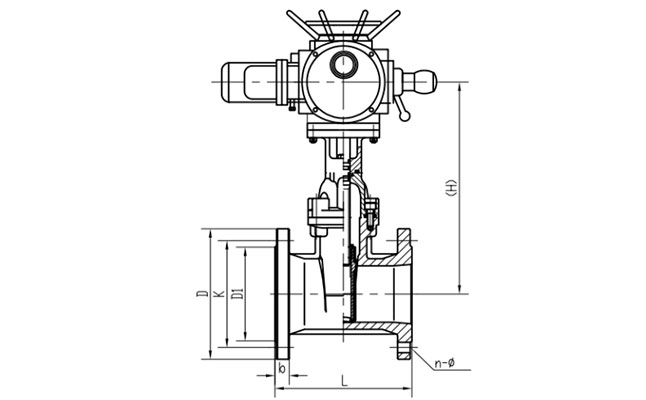

DN	NPS（inches）	L	K	n-φ	K	n-φ
50	2''	178	125	4-19	120.7	4-19
65	2 1/2''	190	145	4-19	139.7	4-19
80	3''	203	160	8-19	152.4	4-19
100	4''	229	180	8-19	190.5	8-19
125	5''	254	210	8-19	215.9	8-22
150	6''	267	240	8-23	241.3	8-22
200	8''	292	295	12-23	298.5	8-22
250	10''	330	355	12-26	362	12-25
300	12''	356	410	12-26	431.8	12-25
350	14''	381	470	16-26	476.3	12-29
400	16''	406	525	16-30	539.8	16-29
450	18''	432	585	20-30	577.9	16-32
500	20''	457	650	20-34	635	20-32
600	24''	508	770	20-37	749.3	20-35
700	28''	610	840	24-37
800	32''	660	950	24-40
900	36''	711	1050	28-40
1000	40''	811	1170	28-43
1200	48''	1015	1390	32-49

Who should we contact if there is after-sale problem?

You can send mail to info@bundorvalve.com or call us directly to Ms.Shirley. Business scopes spreads to middle China,West China,East China,South China and 76 countries &areas all over the world. We are familiar with all types of enterprises development strategy. Through reliable products and perfect services, the brand of Bundor has won extensive praise from customers.

What certificated does the factory have?

Bundor has 117 products patents and passes CE, CU-TR, API, WRAS, ISO9007, ISO18001, ISO14001, AAA credit grade certificate. Strictly in accordance with ISO, API, JIS, DIN and other standards for valve production, the factory has a perfect enterprise standardization system, has more than 80 sets of high-precision mechanical equipment and quality testing equipment. Can provide more than 10000 kinds of valve models, with a perfect computer system, with independent product research and development capabilities.

Which port is the nearest port from factory?

Bundor valve is located in jinan area, tianjin city, is a collection of scientific research, design, production, sales and after-sales service as one of the professional valve manufacturers, its main export port is tianjin port. Tianjin port is an important comprehensive port and foreign trade port in north China. After the order is confirmed, production can be arranged in 24 hours to ensure the delivery time. Bundor valve always adhere to science and technology and quality peers, dare to innovate, the pursuit of excellence.

What’s the payment terms?

T/T, L/C, D/P D/A, PayPal, Western Union, Cash, Escrow are all allowed. Bundor valve has a set of perfect international trade system. From international trade marketing promotion to international trade negotiations, the group's international trade market of Bundor has been developing steadily in developing countries and regions such as Asia, Africa and Latin America, and has successfully opened markets in developed countries and regions such as Europe and America.

Founded in 1990s, Bundor is an experienced manufacturing and trading combo specialized in the research & development, production and sales of Butterfly valve, gate valve, check valve, globe valve and other valves. 26 years adhering to the principle of manufacturing process of competent valve fittings,the control of valve manufacturing throughout all the production processes, correctly understand customer requirements, and commit to provide products that ensure customer satisfaction.Our team
