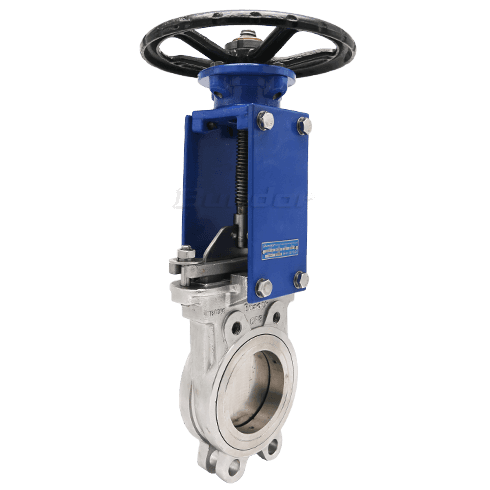

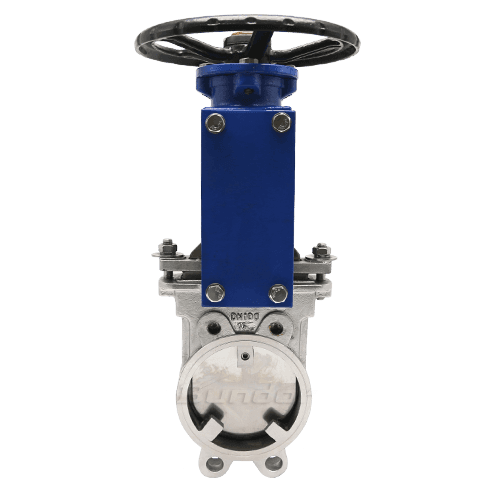

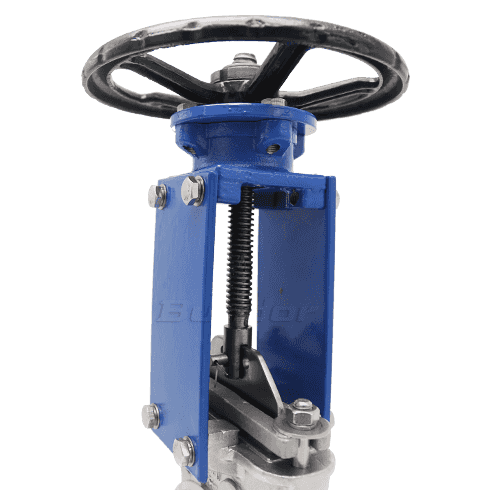

ANSI 150 Wafer Knife Gate Valve

Size Range: DN50-450

Pressure: 150LB

Body Materials: WCB/Cast Iron

INTRODUTCTION

ADVANTAGES

  • The sign has a beautiful appearance and strong connection

    Laser marking, clear writing, long life.Use stainless steel rivet to fix, the appearance is more beautiful, the connection is more firm.

  • The bolt has strong corrosion resistance

    The bolt is made of 304 material, which has stronger corrosion resistance.

  • Independent two-dimensional code identification

    Scanning code can query the inspection results of each stage in the production process of products to ensure the quality of products.

  • Provide material inspection report of main parts

    All bonde products can provide the material inspection report of the main parts.

  • Heat-shrinkable film for independent packaging

    PE thermal shrinkable film is used to package the valve independently, and built-in desiccant, to isolate air dust, avoid damp pollution valve.

  • Solid valve body, more stable

    Valve body is solid body, same caliber weight is heavier than other manufacturers.

FEATURES

Low torque operation
Rubber encapsulated wedge
Clockwise closing direction
Fusion bonded epoxy coated inside and outside

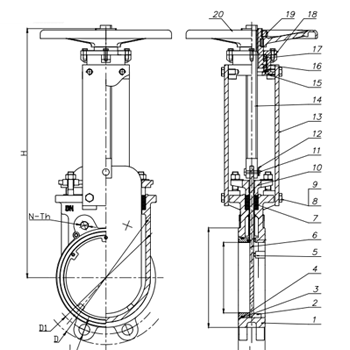

PARAMETERS

SIze
DN(MM) L D D1 D2 D0 N-Th d H
50 48 152 120 92 180 4--11 19 290
65 48 178 139 105 200 4--11 19 310
80 51 190 152 127 220 4--11 19 350
100 51 220 190 157 240 8--11 19 405
125 57 254 216 186 260 8--10 22 450
150 57 279 241 216 280 8--10 22 510
200 70 343 298 270 300 8--10 22 610
250 70 406 362 324 340 12--9 25 765
300 76 483 432 381 380 12--8 25 820
350 76 533 476 413 400 16--8 29 970
400 89 597 539 470 450 16--8 29 1024
450 89 635 578 533 530 16--8 32 1235
