Aluminium Handle Wafer Universal Butterfly Valve

Size Range: 2~8"(DN50~DN200)

Pressure: PN10, PN16, Class125

Body Materials: Cast Iron, Ductile Iron,Bronze

Seat Materials: NBR, EPDM, VITON, PTFE

Disc Materials: Ductile Iron, WCB, CF8,CF8M

Stem Materials: SS416, SS304, SS316

INTRODUTCTION

ADVANTAGES

  • Strong pressure bearing capacity of valve body wall

    Valve body wall thickness to meet the requirements of GB 26640, thick thickness, pressure strength is guaranteed.

  • Spherification rate 3, suitable for higher working pressure

    Valve body is qt450-10 material, mechanical properties are stronger, the same thickness of tensile strength is twice the iron body.

  • Wide edge seat with reliable sealing performance

    Convenient installation of valve, wide contact surface with flange boss on pipeline, reliable sealing performance.

  • Valve shaft support is strong, axial sealing is reliable

    Valve shaft and valve body with 4 oil-free bearings, 3 O sealing, valve shaft support more powerful, more reliable axial sealing.

  • Disc pin has high strength and abrasion resistance

    The pin adopts tempering treatment, high strength, abrasion resistance, safe and reliable connection.

  • Independent two-dimensional code identification

    Scanning code can query the inspection results of each stage in the production process of products to ensure the quality of products.

FEATURES

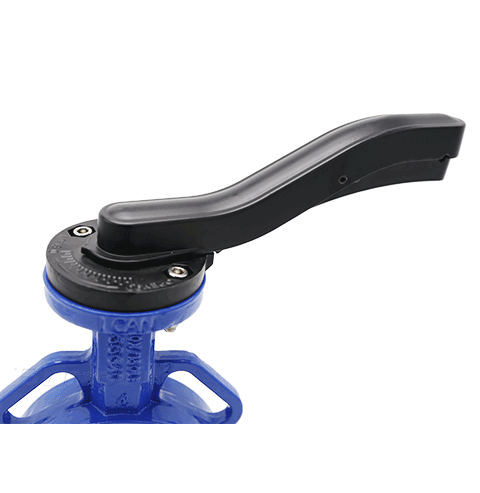

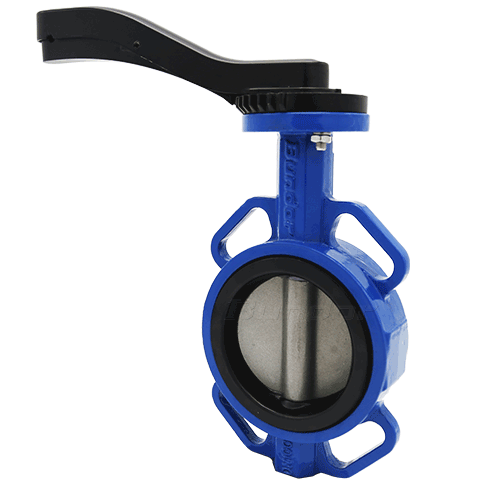

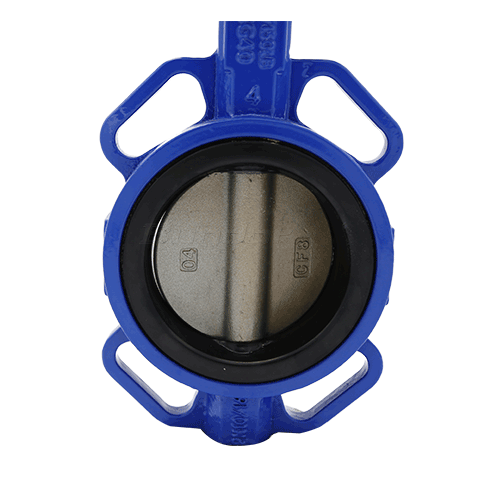

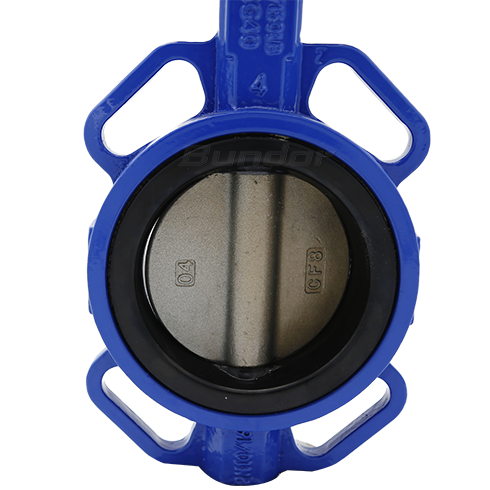

Aluminum handle wafer butterfly valve is a butterfly valve with aluminum material handle,which has low torque,long life cycle.Except the handle material, aluminum handle wafer butterfly valve have the same features as other handle wafer butterfly valve.

PARAMETERS

Parts 1 2 3 4 5
Name Body Seat Disc Stem Handle
Material  DI EPDM DI SS410 Aluminium

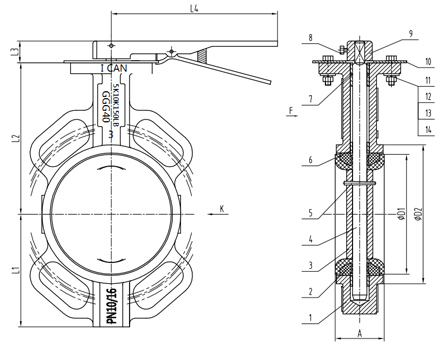

SIZE A B C L DIN PN 10 DIN PN 16 ANSI 150LB JIS 10K ISO 5211 Top
 Flange
mm in øK N-ød øK N-ød øK N-ød øK N-ød øD øD1 N-øG
40 1.5" 67 141 32 33 110 4-ø18 110 4-ø18 98.5 4-ø16 105 4-ø19 65 50 4-ø8 F05
50 2" 67 141 32 43 125 4-ø18 125 4-ø18 120.6 4-ø19 120 4-ø19 65 50 4-ø8 F05
65 2½" 75 151 32 46 145 4-ø18 145 4-ø18 139.7 4-ø19 140 4-ø19 65 50 4-ø8 F05
80 3" 95 160 32 46 160 8-ø18 160 8-ø18 152.4 4-ø19 150 8-ø19 65 50 4-ø8 F05
100 4" 111 180 32 52 180 8-ø18 180 8-ø18 190.5 8-ø19 175 8-ø19 90 70 4-ø10 F07
125 5" 129 193 32 56 210 8-ø18 210 8-ø18 215.9 8-ø22.4 210 8-ø23 90 70 4-ø10 F07
150 6" 142 207 32 56 240 8-ø22 240 8-ø22 241.3 8-ø22.4 240 8-ø23 90 70 4-ø10 F07
200 8" 170 240 45 60 295 8-ø22 295 12-ø22 298.4 8-ø22.4 290 12-ø23 125 102 4-ø12 F10
250 10" 206 270 45 68 350 12-ø22 355 12-ø22 361.9 12-ø25.4 355 12-ø25 125 102 4-ø12 F10
300 12" 238 316 45 78 400 12-ø22 410 12-ø26 431.8 12-ø25.4 400 16-ø25 125 102 4-ø12 F10
350 14" 267 368 45 78 460 16-ø22 470 16-ø26 476.2 12-ø28.4 445 16-ø25 125 102 4-ø12 F10
400 16" 298 400 51 86 515 12-ø26 525 16-ø30 539.7 16-ø28.4 510 16-ø27 175 140 4-ø18 F14
450 18" 318 422 51 105 565 20-ø26 585 20-ø30 577.8 16-ø31.8 565 20-ø27 175 140 4-ø18 F14
500 20" 349 479 57 130 620 20-ø26 650 20-ø33 635 20-ø31.8 620 20-ø27 175 140 4-ø18 F14
600 24" 410 562 70 152 725 20-ø30 770 20-ø36 749.3 20-ø35.1 730 24-ø33 210 165 4-ø22 F16
