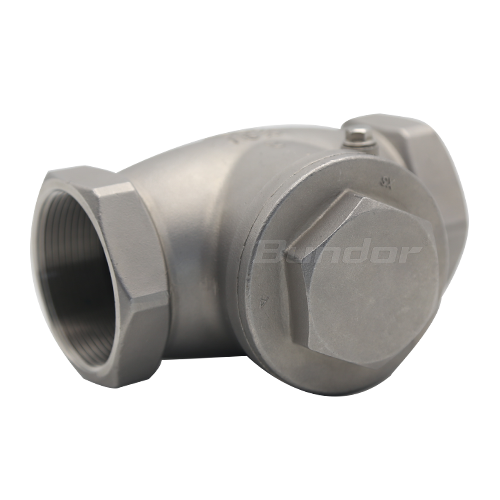

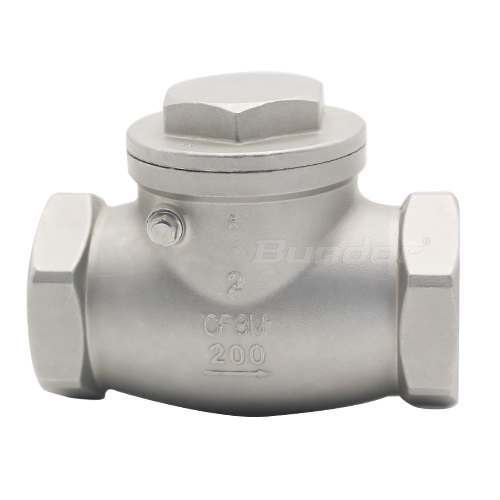

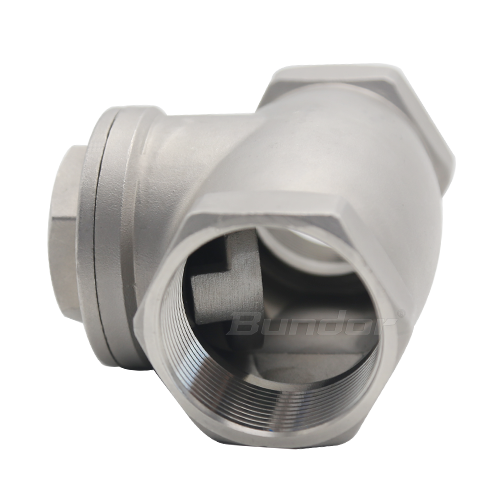

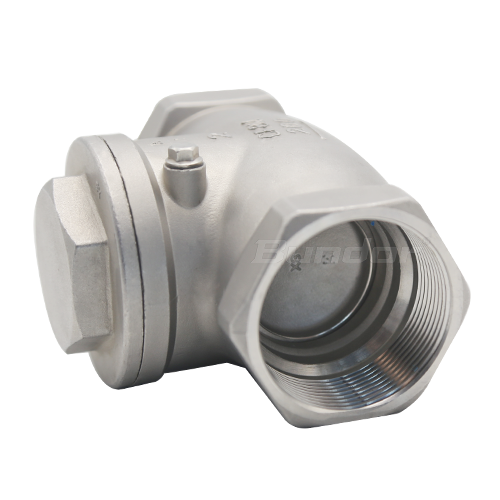

Thread swing check valve

Size Range: DN15-DN100

Pressure: PN16

Body Materials: CF8/CF8M/CF3M

INTRODUTCTION

ADVANTAGES

  • The main meets the regulations.

    The main material meets the requirements of national regulations.

  • All valve accessories are processed product accuracy.

    All valve accessories are processed by CNC machine tools to ensure product accuracy.

  • The product meets the long-term storage requirements of the valve.

    After pressure test, the valve will be cleaned again, the anti-rust oil is sprayed.It is easier for long term storage. The cleanliness of the inner cavity meets the requirements of JB/T7748.

  • Each valve is pressure tested according to the national standard.

    Each valve must be tested pressure as per national standards when leaving the factory, unqualified products will not be delivered.

  • Each valve is sealed with special thread for protection.

    Each valve adopts special thread blocking protection to prevent thread damage during transportation.

  • The thread can be customized according to customers' requirements.

    G thread, NPT thread, BSP and other customized threads can be provided according to customer needs.

FEATURES

Swing check valve refers to a valve that automatically opens and closes the valve clack depending on the flow of the medium itself to prevent the medium from flowing back.
The structure is swing type, except for the gasket and sealing ring used in the middle flange, there is no leakage point as a whole, which reduces the possibility of leakage of the valve. It has been used in many fields such as water supply, chemical industry, metallurgy, pharmacy and so on.

PARAMETERS

Name Design and manufacture Standard of pressure test
Executive standard GB/T 12236 GB/T 13927

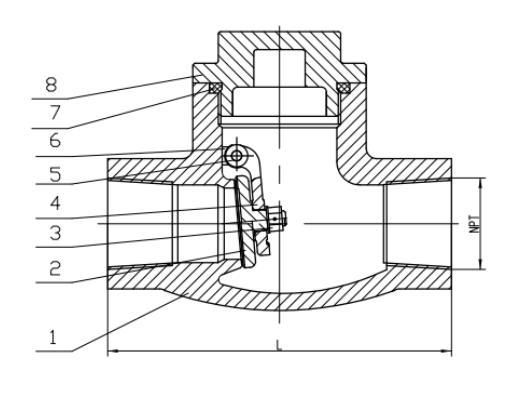

Name 1-Body 2-Disc 4-Joystick 7-Sealling 8-Gasket
Material CF8 CF8 CF8 PTFE CF8
Size PN16
DN NPT L
15 1/2'' 63
20 3/4'' 75
25 1'' 84
32 1 1/4'' 100
40 1 1/2'' 115
50 2'' 135
65 2 1/2'' 160
80 3'' 187
100 4'' 240
