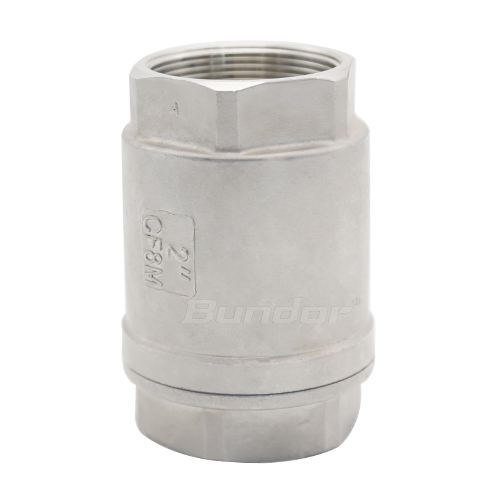

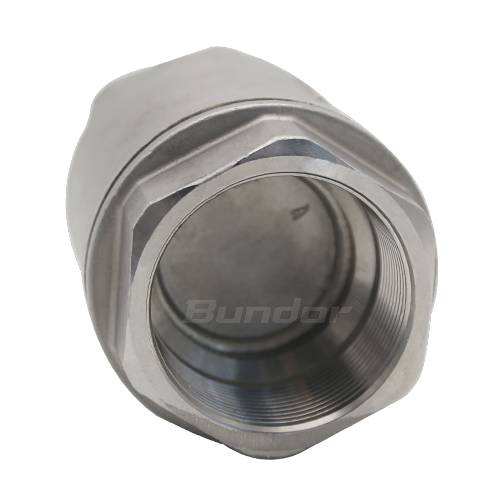

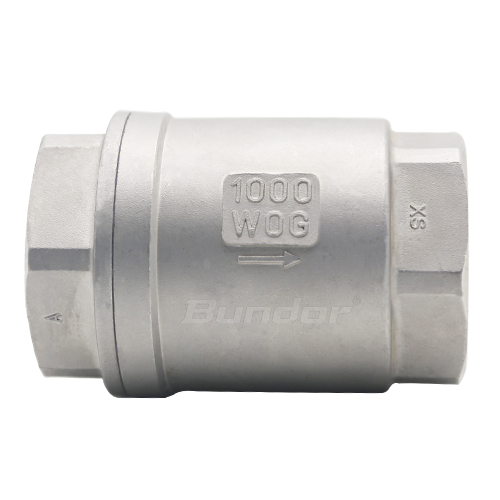

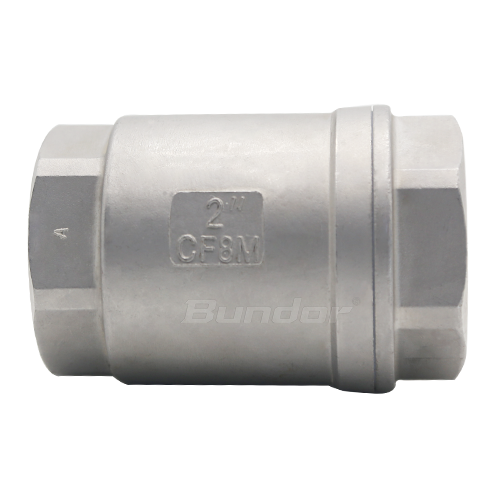

Stainless Steel Lift Check Valve

Size Range: DN15-DN80

Pressure: PN16

Body Materials: CF8/CF8M/CF3M

INTRODUTCTION

ADVANTAGES

  • The material meets the requirements of regulations.

    The main material meets the requirements of national regulations.

  • All valve accessories are processed product accuracy.

    All valve accessories are processed by CNC machine tools to ensure product accuracy.

  • The product meets the long-term storage requirements of the valve.

    After pressure test, the valve will be cleaned again, the anti-rust oil is sprayed.It is easier for long term storage. The cleanliness of the inner cavity meets the requirements of JB/T7748.

  • Each valve is pressure tested according to the national standard.

    Each valve must be tested pressure as per national standards when leaving the factory, unqualified products will not be delivered.

  • Each valve is sealed with special thread for protection.

    Each valve adopts special thread blocking protection to prevent thread damage during transportation.

  • The thread can be customized according to customers' requirements.

    G thread, NPT thread, BSP and other customized threads can be provided according to customer needs.

FEATURES

Working temperature:-29℃~180℃
Suitable medium:Water, steam, oil, etc.
Application: Municipal construction,electricity, water supply and drainage,water treatment,oil.


Product Identification:

Liftcheck valve is a regular valve. It is installed vertically, and its disc is positioned along the center to move up and down.

PARAMETERS

Name Design and manufacture Standard of pressure test
Executive standard GB/T 12235 GB/T 13927

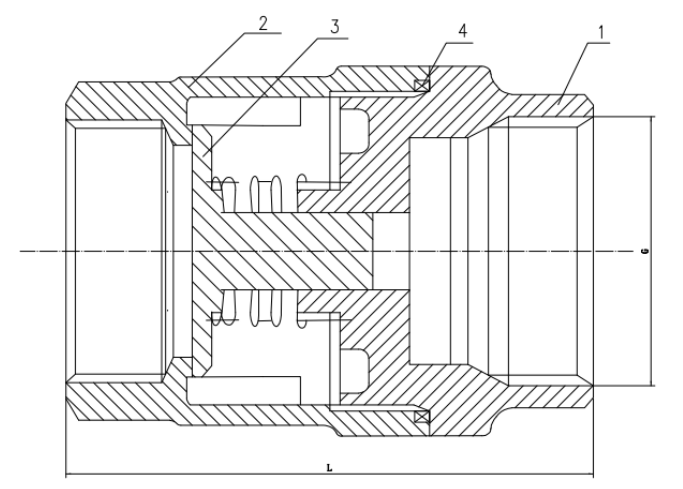

Name 1-Body 2-Seat 3-Disc 4-Gasket
Material CF8 CF8 304 PTFE
Size PN16
DN NPT L
15 1/2'' 59
20 3/4'' 67
25 1'' 78
32 1 1/4'' 90
40 1 1/2'' 99
50 2'' 117
65 2 1/2'' 148
80 3'' 172
