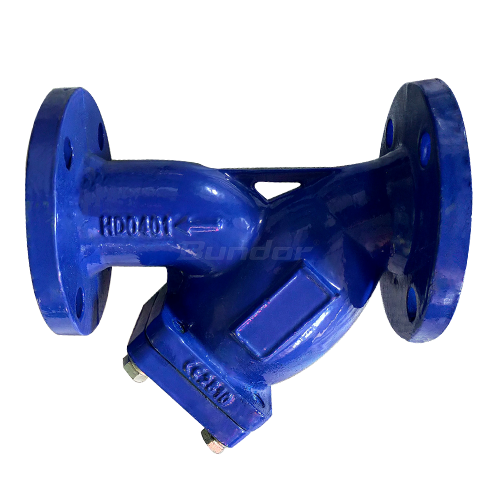

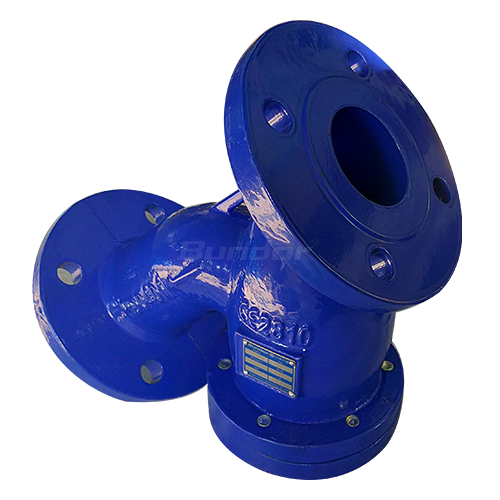

ASME Ductile Iron Y strainer

Size Range: DN15-DN600

Pressure: 150LB

Body Materials: Ductile iron



  • High tensile strength, not easy to break

    The body is ductile iron,high level than national stanard.Tensile strength is 450Mpa,elongation is large than 10%,can not be broken easily when transport.

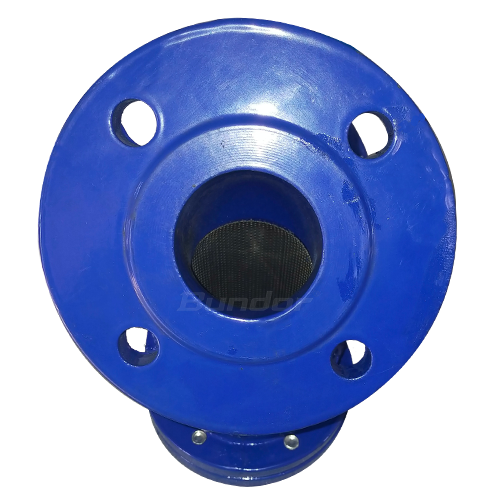

  • 304 screen is resistant to erosion and corrosion

    The screen adopts 304 steel plate punching, rolling, spot welding, mesh mesh can be customized according to customer requirements, DN200 and above size with reinforcement structure design, high strength of the screen, with erosion resistance.

  • Use graphite gasket to resist high temperature

    Sealing gasket made of graphite material, high temperature resistance, long service life.

  • Streamlined design, low fluid resistance

    The strainer adopts full size form and streamline design to reduce the fluid resistance coefficient of the strainer.The diameter and length of the screen increase, increase the effective filtration area of the screen, reduce the pressure loss.

  • Large cavity reduces pressure loss

    The valve cavity becomes larger, and the circulation area between the screen and the inner wall of the valve body is more than half of the flow channel area, which effectively improves the utilization rate of the mesh at the back of the screen.

  • Anti-rust with epoxy coating

    Both inner and out part is epoxy coating, the thickness is 250μm minimum,can prevent rust well,can be used in sewage system.



Size Range: DN15~DN600
Pressure: 150LB
Body Materials: Ductile iron
Screen Materials: 304
Working Temperature:-10~200°C
Medium:Water, Oil
Applications:Municipal construction, water project, electricity, water supply and drainage, water treatment, petrolum.
Connection Flange Size:ASME B16.5

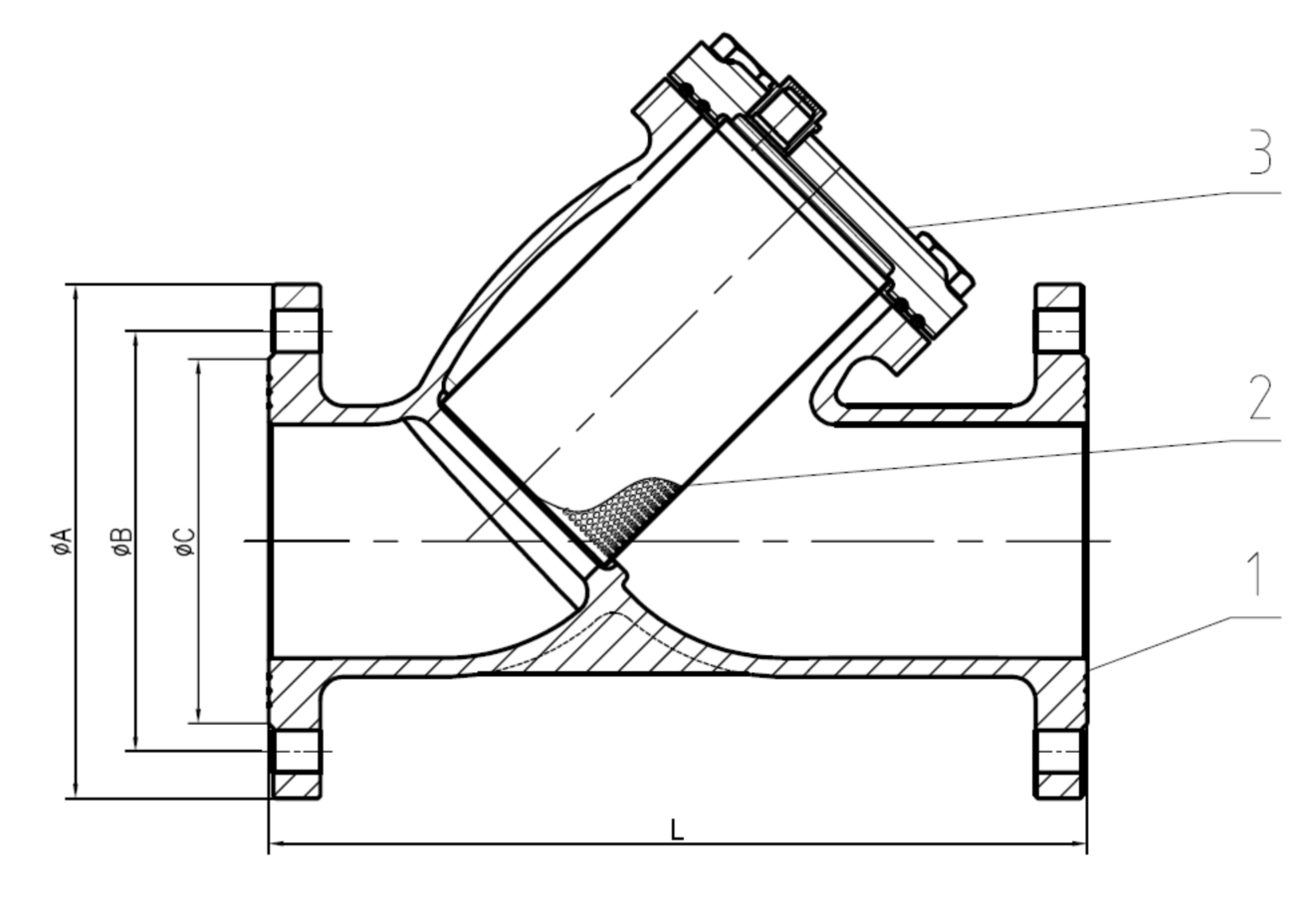

Nominal Size L 150LB
DN NPS(inch) ΦA ΦB ΦC n-d
15 1/2'' 130 90 60.3 35 4-16
20 3/4'' 150 100 69.9 43 4-16
25 1'' 160 110 79.4 51 4-16
32 1  1/4'' 180 115 88.9 64 4-16
40 1  1/2'' 200 125 98.4 73 4-16
50 2'' 225.4 150 120.7 92 4-19
65 2  1/2'' 273 180 139.7 105 4-19
80 3'' 292 190 152.4 127 4-19
100 4'' 352 230 190.5 157 8-19
125 5'' 416 255 216 186 8-22
150 6'' 470 280 241.3 216 8-22
200 8'' 543 345 298.5 270 8-22
250 10'' 660.4 405 362 324 12-25
300 12'' 762 485 431.8 381 12-25
350 14'' 980 535 476.3 413 12-29
400 16'' 1100 595 539.8 470 16-29
450 18'' 1200 635 577.9 533 16-32
500 20'' 1250 700 635 584 20-32
600 24'' 1450 815 749.3 692 20-35
