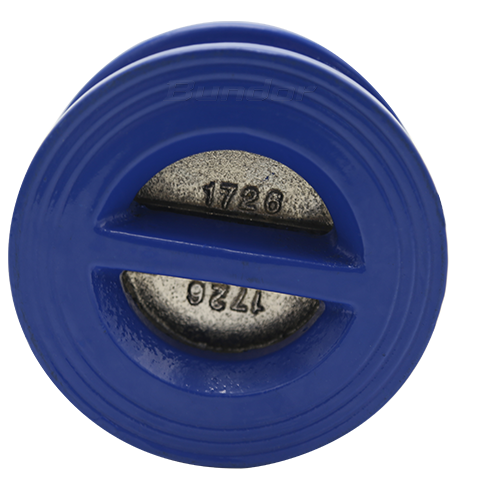

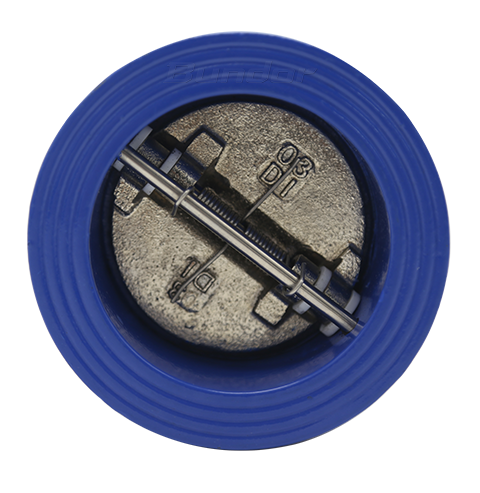

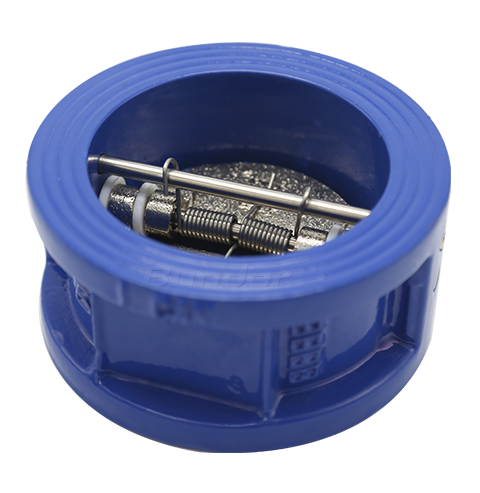

Wafer Check Valve

Size Range: DN50-DN300

Pressure: PN16

Body Materials: DI

Seat Materials: NBR, EPDM

Disc Materials: DI

Stem Materials: 410

INTRODUTCTION

ADVANTAGES

  • Spherification rate 3, suitable for higher working pressure

    Valve body is qt450-10 material, mechanical properties are stronger, the same thickness of tensile strength is twice the iron body.

  • The seat has a long service life

    Valve seat is made of imported rubber, with 50% rubber content, long service life and more than 10000 opening and closing times.

  • Solid valve body, more stable

    Valve body is solid body, same caliber weight is heavier than other manufacturers.

  • Ultrasonic cleaning before packaging

    Eliminate impurities in the valve body, ensure the cleanliness of the valve and prevent the valve itself to pipe water pollution.

  • Valve body spray brand epoxy resin plastic powder

    Valve body spray using brand aksu epoxy resin plastic powder, can deposit thicker thickness, melt curing adhesion is stronger.

  • Heat-shrinkable film for independent packaging

    PE thermal shrinkable film is used to package the valve independently, and built-in desiccant, to isolate air dust, avoid damp pollution valve.

FEATURES

Applicable medium:Water and non-corrosive liquids
Suitable temperature:- 20 ~ 120 ℃
Application field:Municipal construction, water conservancy projects, water supply and drainage, water treatment, etc

PARAMETERS

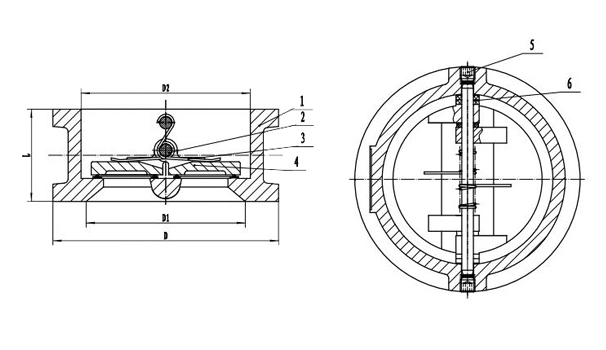

DN NPS(INS) L±1.5 D D1 D2
50 2'' 43 101 58 65
65 2  1/2'' 46 118 75 80
80 3'' 64 132 85 94
100 4'' 64 157 105 117
125 5'' 70 186 125 145
150 6'' 76 213 165 170
200 8'' 89 272 215 224
250 10'' 114 328 260 265
300 12'' 114 378 300 310
