WCB Wafer Check Valve

Size Range: 2~24"(DN50~DN600)

Pressure: PN10, PN16, Class125

Body Materials: A105,304,316

Seat Materials: EPDM

Disc Materials: Ductile iron /SS304/ SS316

Stem Materials: 2cr13



  • Strong pressure bearing capacity of valve body wall

    Valve body wall thickness to meet the requirements of GB 26640, thick thickness, pressure strength is guaranteed.

  • Spherification rate 3, suitable for higher working pressure

    Valve body is qt450-10 material, mechanical properties are stronger, the same thickness of tensile strength is twice the iron body.

  • The seat has a long service life

    Valve seat is made of imported rubber, with 50% rubber content, long service life and more than 10000 opening and closing times.

  • Wide edge seat with reliable sealing performance

    Convenient installation of valve, wide contact surface with flange boss on pipeline, reliable sealing performance.

  • Solid valve body, more stable

    Valve body is solid body, same caliber weight is heavier than other manufacturers.

  • Valve shaft support is strong, axial sealing is reliable

    Valve shaft and valve body with 4 oil-free bearings, 3 O sealing, valve shaft support more powerful, more reliable axial sealing.


The wafer flange clamped butterfly check valve is a energy-save product.It is manufactured based the foreign advanced technology and in accordance with relative international standards.This product is featured by excellent retaining per-formance,high safety and reliability and low flow resistance.It is suitable for systems in the industries of petrochemical food processing,medicine,textile,paper-making.Water,supply,drainage,metallurgy,energy,and light industry,etc,used as a check valve in one way.


 Valve main parts and material

No Parts Name Materials
Arm WCB LCB LCC WC6 WC9 CF8
Bolt B7 L7M L7M B16 B16 B8 B8 B8 B8
Nut 2H 7M 7M 4 4 8 8 8 8
Design&Manufacture API 594 API6D JB/TB937
Face to face API594 DIN3202 JB/T8937
Pressre-Temperature ASME B16.34 DIN2401 GB/T9124
Pipe Flange JB/71-90 JB/T9112-9124

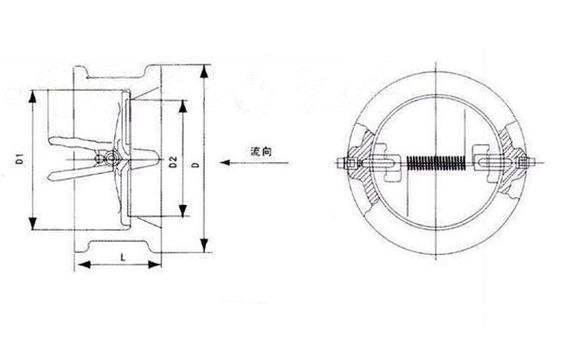

PN Mpa SIZE(mm) L D D3 D2
1.6Mpa 40 60 96 46 41
50 60 109 56 51
65 67 129 73 65
80 73 144 88 80
100 73 164 108 102
125 86 194 132 127
150 98 220 160 152
200 127 275 210 203
250 146 332 266 254
300 181 387 310 305
350 184 447 355 350
400 191 498 405 400
450 203 558 455 450
500 219 618 505 500
600 222 732 605 600
700 305 802 700 695
800 305 912 800 796
900 368 1012 903 898
1000 432 1124 1055 1050
1200 524 1340 1200 1400


Check valves, globe valves, ball valves, filters, rubber joints, etc. are commonly used pipe accessories in fluid pipelines, with functions such as cut-off, regulation, diversion, prevention of backflow, pressure regulation, diversion, or pressure relief. It is commonly used to control the flow of various types of fluids such as air, water, steam, various corrosive media, mud, oil products, liquid metals, and radioactive media.
