Swing Check Valve

Size Range: 2”-24”(DN50-DN600)

Pressure: PN16, PN25,CL125 ,CL150,CL250

Body Materials: Cast iron,ductile iron

Disc Materials: Cast iron,Ductile iron+Brass/Ductile +NBR

Stem Materials: Brass,SS

INTRODUTCTION

ADVANTAGES

  • Disc pin has high strength and abrasion resistance

    The pin adopts tempering treatment, high strength, abrasion resistance, safe and reliable connection.

  • The bolt has strong corrosion resistance

    The bolt is made of 304 material, which has stronger corrosion resistance.

  • The position of signboard is humanized

    The position of the signboard is humanized and set on both sides of the valve body for users to view after installation.

  • Heat-shrinkable film for independent packaging

    PE thermal shrinkable film is used to package the valve independently, and built-in desiccant, to isolate air dust, avoid damp pollution valve.

  • Valve body spray brand epoxy resin plastic powder

    Valve body spray using brand aksu epoxy resin plastic powder, can deposit thicker thickness, melt curing adhesion is stronger.

  • Ultrasonic cleaning before packaging

    Eliminate impurities in the valve body, ensure the cleanliness of the valve and prevent the valve itself to pipe water pollution.

FEATURES

1.  The valve flow is streamlined,low resistance
2.  The open-close part is control by medium itself to prevent backflow.
3.  Seal the pair of pairs of advanced and reasonable, disc, valve seat sealing surface with iron-based alloy or Si Tai Li cobalt-based carbide welding, wear, high temperature, corrosion resistance, anti-scratch ability, long service life.
4.  Products can be used in a variety of piping flange and flange standard and flange seal type, to meet a variety of engineering needs and user requirements.
5.  Valve body variety, gasket can be based on actual conditions or user requirements reasonable matching, can be applied to a variety of pressure, temperature and medium conditions.
6.Bundor company specialized intentions since 1994, has a professional production, sales, research, after-sales team, is your strong backing of sales and use.

PARAMETERS

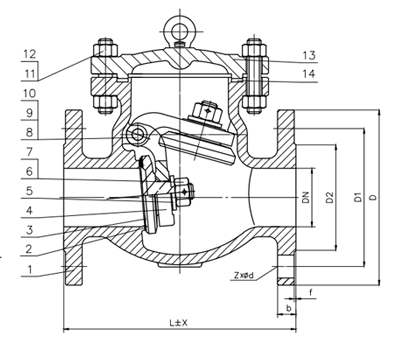

DN D D1 D2 L b Z-d H
∅40 ∅127 ∅98.5 ∅73 165 15 4-∅16 120
∅50 ∅152 ∅120.5 ∅92 203 16 4-∅19 137
∅65 ∅178 ∅139.5 ∅105 216 17.5 4-∅19 147
∅80 ∅191 ∅152.5 ∅127 241 19 4-∅19 159
∅100 ∅229 ∅190.5 ∅157 292 24 8-∅19 180
∅125 ∅254 ∅216 ∅186 330 24 8-∅22 203
∅150 ∅279 ∅241.5 ∅216 356 25.5 8-∅22 223
∅200 ∅343 ∅298.5 ∅270 495 29 8-∅22 258
∅250 ∅406 ∅362 ∅324 622 30 12-∅25 290
∅300 ∅483 ∅432 ∅381 698 32 12-∅25 325
∅350 ∅533 ∅476 ∅413 787 35 12-∅29 361
∅400 ∅597 ∅540 ∅470 914 37 16-∅29 388

RELATED PRODUCT

Check valves, globe valves, ball valves, filters, rubber joints, etc. are commonly used pipe accessories in fluid pipelines, with functions such as cut-off, regulation, diversion, prevention of backflow, pressure regulation, diversion, or pressure relief. It is commonly used to control the flow of various types of fluids such as air, water, steam, various corrosive media, mud, oil products, liquid metals, and radioactive media.
