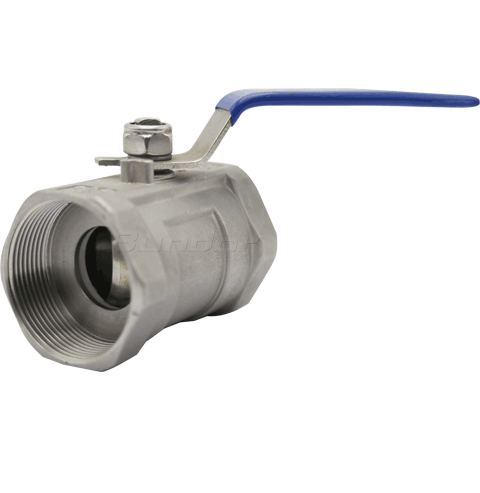

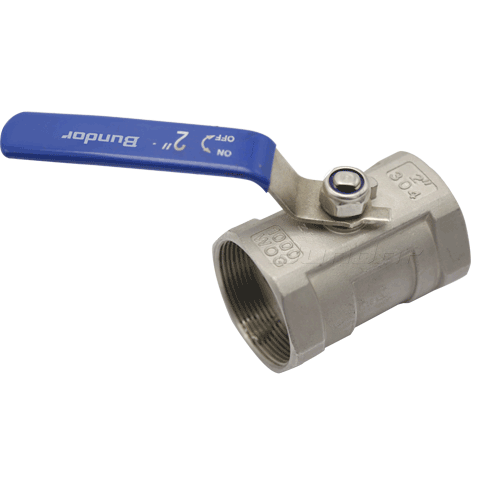

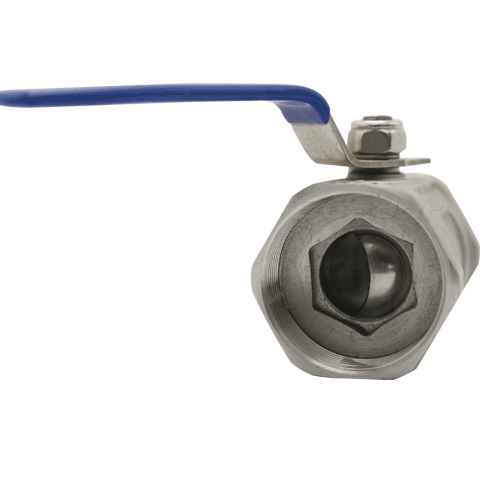

Stainless Steel Ball Valve-1PC Ball Valve

Size Range: 1/4~4"

Pressure: 1000PSI

Body Materials: SS201, SS304, SS316, WCB

Seat Materials: PTFE

INTRODUTCTION

ADVANTAGES

  • Spherification rate 3, suitable for higher working pressure

    Valve body is qt450-10 material, mechanical properties are stronger, the same thickness of tensile strength is twice the iron body.

  • The seat has a long service life

    Valve seat is made of imported rubber, with 50% rubber content, long service life and more than 10000 opening and closing times.

  • Strong pressure bearing capacity of valve body wall

    Valve body wall thickness to meet the requirements of GB 26640, thick thickness, pressure strength is guaranteed.

  • Valve body spray brand epoxy resin plastic powder

    Valve body spray using brand aksu epoxy resin plastic powder, can deposit thicker thickness, melt curing adhesion is stronger.

  • Heat-shrinkable film for independent packaging

    PE thermal shrinkable film is used to package the valve independently, and built-in desiccant, to isolate air dust, avoid damp pollution valve.

  • The position of signboard is humanized

    The position of the signboard is humanized and set on both sides of the valve body for users to view after installation.

FEATURES

Adoptive Standards:
Valve Design: ASME B16.34, GB/T12237
Pressure Test: API 598 , JB/T9092
Thread standard: NPT, BSP

Standard Test:
Body Test: 1.5 times the working pressure with water. This test is performed after valve assembly and with disc in half position open, it is called as a body hydro test.
Seat Test: 1.1 times the working pressure with water.
Function / Operation Test: At the time of final inspection, each valve and its actuator (Flow-Control Lever / Gear / Pneumatic Actuator), under goes a complete operating test (Open/Close). This test carried out without pressure and at ambient temperature. It ensures the correct operation of the valve / actuator assembly with accessories such as solenoid valve, limit switches, air filter regulator etc.
Special Test: On request, any other test can be carried out according to special instruction by client.

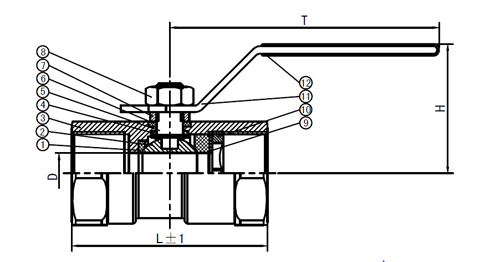

PARAMETERS

SIZE 1/4" 3/8" 1/2" 3/4" 1" 1 1/4" 1 1/2" 2" 2 1/2" 3" 4"
DN 8 10 15 20 25 32 40 50 65 80 100
D 5 7 8.5 12 15 20 25 32
L     53 56 68 77 82 96 110 133 185
H 32 32 35 38 52 57 61 66
T 75 85 98 98 110 114 143 143
