Cast Iron Ball Valve

Size Range: DN40-DN200

Pressure: PN16/150LB/10K

Body Materials: HT200

Seat Materials: PTFE

Stem Materials: 2Cr13

INTRODUTCTION

ADVANTAGES

  • HT200 cast iron body

    HT200 cast iron body, fully comply with GB / t12226-2005, tensile strength 180-210mpa.

  • Solid and heavy body

    Solid and heavy body. Thickness of valve body meets the requirements of GB26640 standard.

  • Stainless steel 304 ball

    Stainless steel 304 ball.

  • Processed by precision CNC machine tools

    The internal parts are processed by precision CNC machine tools to ensure the accuracy.

  • Epoxy coating

    Epoxy coating.

  • Pressure test for seal and shell

    Each valve will be made pressure test for seal and shell before leaving factory.

FEATURES

Suitable medium:Water, steam, oil, etc
Working temperature: -10℃~150℃
Application field: Municipal construction,electricity, water supply and drainage,water treatment,oil.

PARAMETERS

Parameter Information
Executive standard
Name Design and manufacture Face to face Length End Flange  Inspection and test
DINPN16 DIN 3357 DIN 3202 DIN EN1092-2 DIN 3230
ASME150LB ASME B16.34 ASME B16.10 ASME B16.5 API 598
JIS10K     JIS B2239 JIS B2003

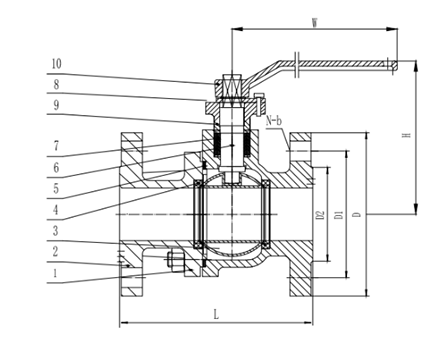

Material of Main Parts
Name 1-Body 3-Ball 4-Seat 6-Stem 10-Handle
Material HT200 304 PTFE 2Cr13 CI
Dimensions
SIZE   PN16     150LB     10K
DN NPS L D1 N-b L D1 N-b L D1 N-b
40 1  1/2'' 140 110 4-Φ18 165 98.5 4-Φ16 165 105 4-Φ19
50 2'' 150 125 4-Φ18 178 120.5 4-Φ19 180 120 4-Φ19
65 2  1/2'' 170 145 4-Φ18 190 139.5 4-Φ19 190 140 4-Φ19
80 3'' 180 160 8-Φ18 203 152.5 4-Φ19 200 150 8-Φ19
100 4'' 190 180 8-Φ18 229 190.5 8-Φ19 230 175 8-Φ19
125 5'' 325 210 8-Φ18 356 216 8-Φ22 300 210 8-Φ23
150 6'' 350 240 8-Φ23 394 241.5 8-Φ22 340 240 8-Φ23
200 8'' 400 295 12-Φ23 457 298.5 8-Φ22 450 290 12-Φ23
