Ball Valve with High Platform

Size Range: DN15-DN100

Pressure: PN16

Body Materials: CF8/CF8M

Seat Materials: PTFE

Stem Materials: 304/316

INTRODUTCTION

ADVANTAGES

  • Chemical composition and mechanical properties meet the national standards

    Chemical composition and mechanical properties of valve body material completely meet the national standards.

  • The cleanliness meets the requirements of JB/T7748

    The cleanliness of valve chamber meets the requirements of JB/T7748.

  • Each valve must be tested

    Each valve must be tested in accordance with the national standard before leaving factory.

  • Explosion-proof design

    Explosion-proof design valve stem.

  • Locking device

    Handle with locking device.

FEATURES

Model:Q11F-16P
Name:Ball Valve with High Platform
Size: DN15-DN100
Pressure:PN16
Working temperature:-20℃~120℃
Suitable medium: Water, steam, oil, etc
Body :Stainless Steel 304
Application: Municipal construction, water conservancy projects, electricity, water supply and drainage, water treatment, oil

PARAMETERS

1. Executive standard:
Name Design and manufacture Face to face Length Pressure Test  Thread Standard
Reference standard GB/T 12237-2007 GB/T 12221-2005 GB/T 13927-2008 ASME B1.20.1(NPT)
DIN259/DIN2999
BS 21
ISO 288-1/ISO 7-1

2. Material of Main Parts:
Name Body Ball Bonnet Seat Stem Handle
Material CF8 CF8 CF8 PTFE 304 201

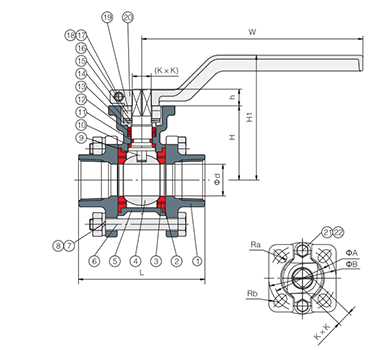

3. Dimensions:
DN NPS(Inch) Φd L W K*K
15 1/2'' 15 68.5 140 9*9
20 3/4'' 20 79 140 9*9
25 1'' 25 89 170 11*11
32 1  1/4'' 32 100.5 170 11*11
40 1  1/2'' 38 111 200 14*14
50 2'' 50 129 200 14*14
65 2  1/2'' 65 169.5 300 17*17
80 3'' 80 191 300 17*17
100 4'' 100 242 300 17*17
