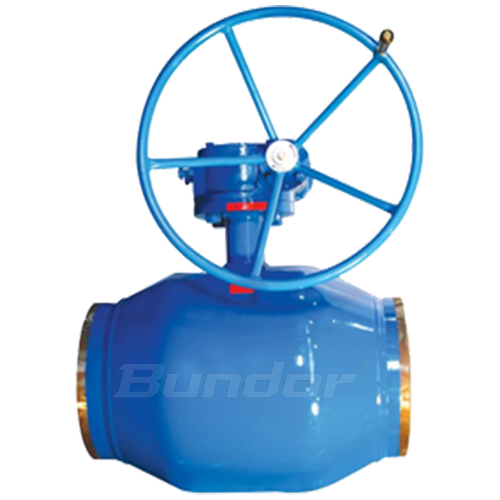

Full Welded Ball Valve

Size Range: DN25-DN350

Pressure: PN25

Body Materials: 20#

Seat Materials: PTFE

Stem Materials: 2Cr13

INTRODUTCTION

ADVANTAGES

  • Full welded structure

    Full welded structure valve body, no external leakage. Compact valve structure, easy for construction and installation.

  • Imported raw materials

    Valve seat and O-ring are made of impored raw marterials. Excellent self-lubrication, low friction coefficient, high structure density and good anti-aging performance.

  • Anti blowout structure

    Anti blowout structure and the center shaft and the center shaft sealing system are replaceable.

  • Single side double seal valve seat

    Single side double seal valve seat (double side quadruple seal) greatly increases the service life of the valve.

  • Pressure test for seal and shell

    Each valve will be inspected for shell and seal pressure before leaving factory.

FEATURES

Suitable medium:Water, oil, gas, etc
Working temperature:-20℃~150℃
Application field:Municipal construction, central heating, gas pipelines, etc.

PARAMETERS

Parameter Information
Executive standard
Name Design and manufacture Face to face Length Pressure Test  End  Flange
Reference standard GB/T 19672
ASME B16.34
GB/T 12221
ASME B16.10
GB/T 13927
API 598
GB/T 12224
ASME B16.25

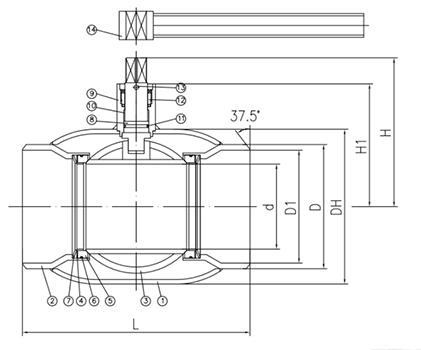

Material of Main Parts
Name 1-Body 3-Ball 5-Seat 8-Stem 14-Actuator
Material 20# 304 PTFE 2Cr13 Handle/Worm Gear
Dimensions
SIZE
DN NPS L d D1 D H
25 1'' 230 20 25 34 81
32 1  1/4'' 260 25 32 42 83.5
40 1  1/2'' 260 32 38 48 101.5
50 2'' 300 40 48 60 129
65 2  1/2'' 300 50 60 76 155
80 3'' 300 65 73 89 169.5
100 4'' 325 80 98 114 178.5
125 5'' 325 100 125 141 194.5
150 6'' 350 125 143 159 215
200 8'' 400 150 199 219 269.5
250 10'' 560 200 253 273 305.5
300 12'' 635 250 298 325 370
350 14'' 762 300 350 377 404
