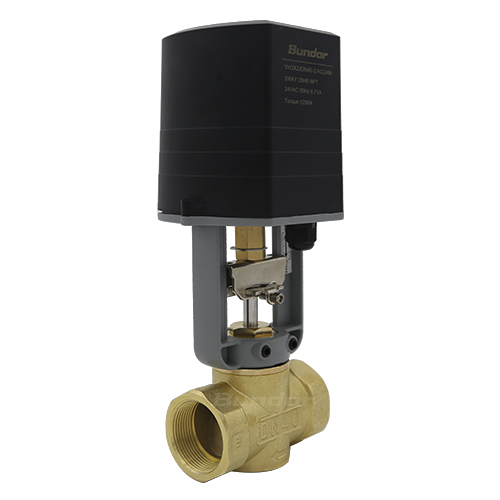

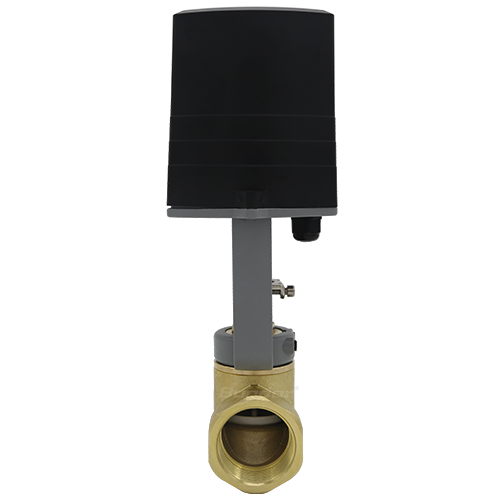

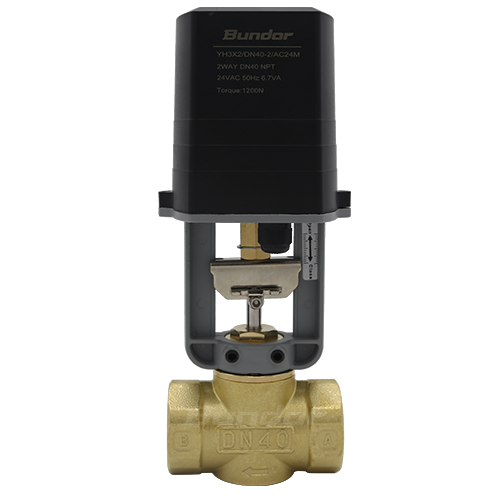

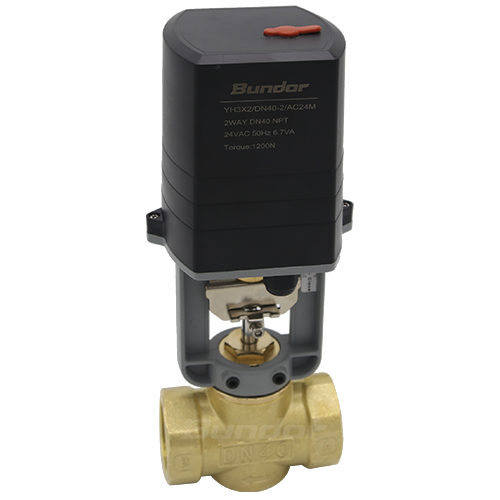

Electric Control Valve Modulating

Size Range: DN20-DN65

Pressure: PN20

Body Materials: Brass59-1

Seat Materials: NBR

Stem Materials: Stainless steel

INTRODUTCTION

ADVANTAGES

  • One-time hot forging brass

    One-time hot forging brass valve body, higher density, intensity 5 times than casting item.

  • 4 layer sealing protection

    Valve stem with 4 layer sealing protection, extend the usage life.

  • Die-casting aluminum bracket and actuator cover, steel gears

    Die-casting aluminum bracket and actuator cover, steel gears, to keep the valve acting stable and safety.

  • AC synchronous motor, built-in two floating auxiliary switch

    AC synchronous motor, built-in two floating auxiliary switch, equip with shut power function while in position to protect motor.High control precision, quick response speed, low power consumption, low noise.

  • With manual lever easy to operate valve while power off.

    With manual lever easy to operate valve while power off.

  • Configuration travel self-adaption

    Configuration travel self-adaption, easy to install and test.

FEATURES

Name:Electric Control Valve
Size:DN20-DN65
Pressure:PN20
Working temperature:2~90℃
Suitable medium:Chiled/hot water
Body :Brass
Voltage:AC24V,AC220V  50/60Hz
Control Signal:DC0-10V(4-20mA)
Application : Air conditioning, refrigeration, heating and building automation system

PARAMETERS

 Material of Main Parts:
Name Body Core Seat Stem
Material Brass59-1 Brass+NBR NBR Stainless steel

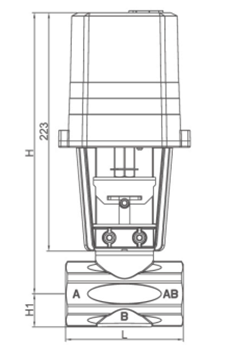

Dimensions:
DN NPS(Inch) L H H1
20 3/4" 69 262 18.5
25 1" 80 262 22
32 1-1/4" 92 262 27.5
40 1-1/2" 110 263 31
50 2" 125 268 38
65 2-1/2" 150 276 48
