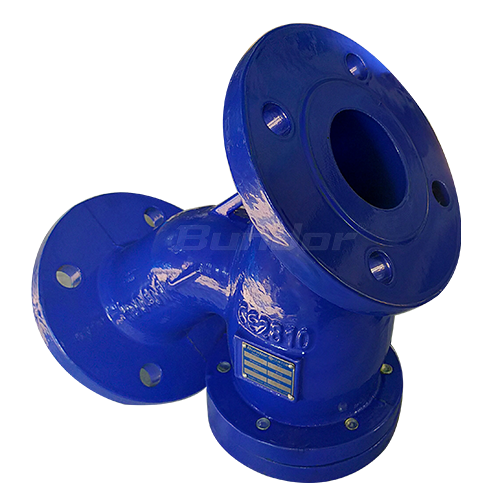

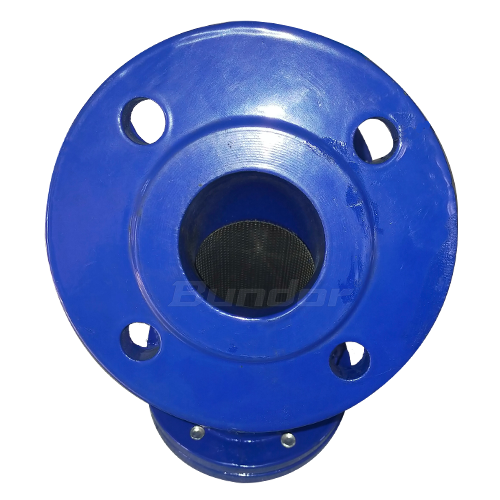

DIN Flanged Y Strainer

Size Range: DN15~DN450

Pressure: PN10, PN16

Body Materials: Cast Iron, Ductile Iron



  • The position of signboard is humanized

    The position of the signboard is humanized and set on both sides of the valve body for users to view after installation.

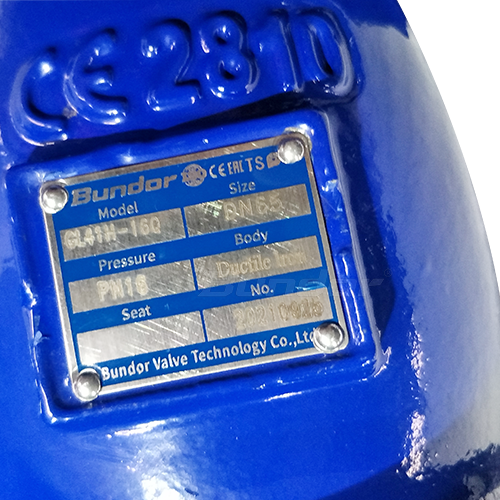

  • The sign has a beautiful appearance and strong connection

    Laser marking, clear writing, long life.Use stainless steel rivet to fix, the appearance is more beautiful, the connection is more firm.

  • The bolt has strong corrosion resistance

    The bolt is made of 304 material, which has stronger corrosion resistance.

  • Disc pin has high strength and abrasion resistance

    The pin adopts tempering treatment, high strength, abrasion resistance, safe and reliable connection.

  • Independent two-dimensional code identification

    Scanning code can query the inspection results of each stage in the production process of products to ensure the quality of products.

  • Provide material inspection report of main parts

    All bonde products can provide the material inspection report of the main parts.


DIN PN16 Y Strainer
Size Range: DN15~DN450
Pressure: PN10, PN16
Body Materials: Cast Iron, Ductile Iron
Screen Materials: SS304
End Connection: Flange

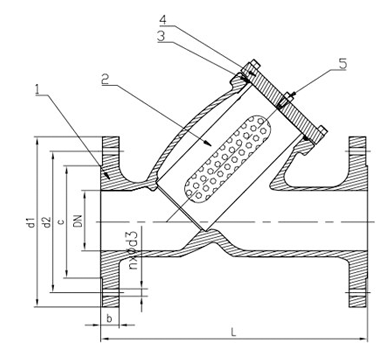

SIZE DN D D1 D2 L b f Z-d H
1/2" Φ15 Φ95 Φ65 Φ46 130 14 2 4-Φ14 93
3/4" Φ20 Φ105 Φ75 Φ56 150 16 2 4-Φ14 103
1" Φ25 Φ115 Φ85 Φ65 160 16 3 4-Φ14 114
1 1/4" Φ32 Φ140 Φ100 Φ76 180 18 3 4-Φ19 132
1 1/2" Φ40 Φ150 Φ110 Φ84 200 18 3 4-Φ19 152
2" Φ50 Φ165 Φ125 Φ99 230 20 3 4-Φ19 154
2 1/2" Φ65 Φ185 Φ145 Φ118 290 20 3 4-Φ19 173
3" Φ80 Φ200 Φ160 Φ132 310 22 3 8-Φ19 195
4" Φ100 Φ220 Φ180 Φ156 350 24 3 8-Φ19 225
5" Φ125 Φ250 Φ210 Φ184 400 26 3 8-Φ19 268
6" Φ150 Φ285 Φ240 Φ211 480 26 3 8-Φ23 328
8" Φ200 Φ340 Φ295 Φ266 600 30 3 12-Φ23 425
10" Φ250 Φ405 Φ355 Φ319 730 32 3 12-Φ28 497
12" Φ300 Φ460 Φ410 Φ370 850 32 4 12-Φ28 564
14" Φ350 Φ520 Φ470 Φ429 980 36 4 16-Φ28 636
16" Φ400 Φ580 Φ525 Φ480 1100 38 4 16-Φ31 719
18" Φ450 Φ640 Φ585 Φ548 1200 40 4 20-Φ31 800


Check valves, globe valves, ball valves, filters, rubber joints, etc. are commonly used pipe accessories in fluid pipelines, with functions such as cut-off, regulation, diversion, prevention of backflow, pressure regulation, diversion, or pressure relief. It is commonly used to control the flow of various types of fluids such as air, water, steam, various corrosive media, mud, oil products, liquid metals, and radioactive media.
