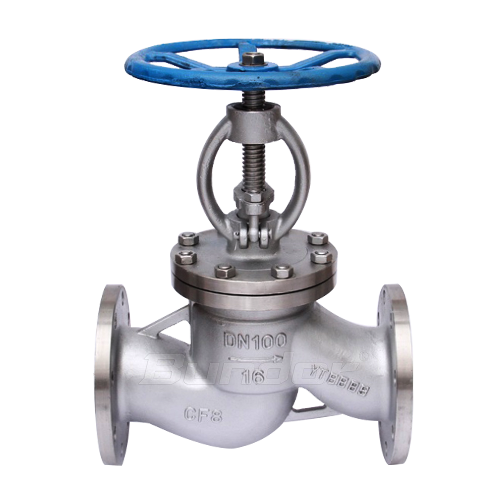

Bellows Globe Valve

Size Range: DN15-DN400

Pressure: PN16/25/40

Body Materials: WCB/CF8

Disc Materials: A105+13Cr/CF8

Stem Materials: 2Cr13/304



  • Precision casting valve body

    Precision casting valve body. Qualified material. Fine appearance, no sand hole.

  • The inner part is processed by CNC lathe

    The inner part is processed by CNC lathe. Twice polish will ensure sealing performance.

  • Heavy type body

    Heavy type body.

  • Better wear-resisting and sealing performance

    Cr13 seat, better wear-resisting and sealing performance.

  • Inverted seal treatment

    Between cover and stem contact surface with inverted seal treatment to avoid leakage.

  • SS304 Bellows

    SS304 Bellows.

  • Double-layer pressure detection

    Each valve will be tested shell and sealing as per related standard before leaving factory.


Working temperature:-29℃~425℃
Suitable medium:Water,Oil,Gas etc
Application : Municipal construction, Power, Medicine, Petroleum industry

Product Identification

Bellows globe valve also called bellows seal globe valve. Through automatic roll welding, a metal barrier is formed between the fluid medium and the atmosphere to ensure the stem is designed for zero leakage.

The inner parts of bellows globe valve adopts bellows structure  and the lower end of the stainless steel bellows is welded to the stem to prevent the  fluid  eroding the stem. The other end is placed between the valve body and the valve cover to form a static seal. The double sealing design will avoid leakage if the bellows fails and the stem packing will also avoid leakage. The bellows is welded to the valve stem to maintain stable operating performance and avoid valve stem vibration caused by valve plug vibration. It is most suitable for pipelines with steam, flammable, explosive, heat transfer oil, high purity, toxic and other media.


Parameter Information:
Executive standard:
Name Design Face to face length Pressure Test
DIN EN 13709 DIN EN 558-1 DIN EN 1092-1 DIN EN 12266
Material of Main Parts:
Name 1-Body 2-Disc 3-Shaft 7-Bellows
Material WCB/CF8 A105+13Cr/CF8 2Cr13/304 304

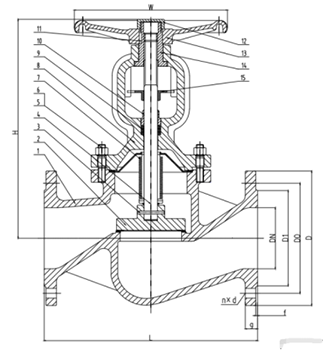

DN NPS L φD φD0 φD1 g n*d
15 1/2'' 130 95 65 45 16 4*14
20  3/4'' 150 105 75 58 18 4*14
25 1'' 160 115 85 68 18 4*14
32 1 1/4'' 180 140 100 78 18 4*18
40 1 1/2'' 200 150 110 88 18 4*18
50 2'' 230 165 125 102 18 4*18
65 2  1/2'' 290 185 145 122 18 4*18
80 3'' 310 200 160 138 20 8*18
100 4'' 350 220 180 158 20 8*18
125 5'' 400 250 210 188 22 8*18
150 6'' 480 285 240 212 22 8*22
200 8'' 600 340 295 268 24 12*22
250 10'' 730 405 355 320 26 12*26
300 12'' 850 460 410 378 28 12*26
350 14'' 980 520 470 428 30 16*26
400 16'' 1100 580 525 490 32 16*30
