Stainless Steel Y-strainer

Size Range: DN50-DN600

Pressure: PN16

Body Materials: CF8

INTRODUTCTION

ADVANTAGES

  • Precision casting body

    Precision casting body, fine appearance, no trachoma.

  • Heavy type valve body

    Heavy type valve body.

  • Stainless steel 304 filter screen

    Stainless steel 304 filter screen.

  • Full welding process for filter screen

    Full welding process for filter screen, the opening rate of screen reaches 80%. Wear and corrosion resistance are improved.

  • Double-layer pressure detection

    Each valve will be inspected for shell and seal pressure before leaving factory.

FEATURES

Name: Stainless Steel Y-strainer
Size: DN50-DN600
Pressure: PN16
Working temperature: 0℃~200℃
Suitable medium: Water, steam, oil, etc
Application :  Municipal construction, water conservancy projects, electricity, water supply and drainage, water treatment, chemical industry

PARAMETERS

Executive standard:
Name Design and manufacture Face to face Length Pressure Test  End flange
Reference standard SH/T 3411-1999 GB/T 14382-2008 GB/T 13927-2008
API 598
HG/T 20592-2009(PN series)
HG/T 20615-2009(Class series)

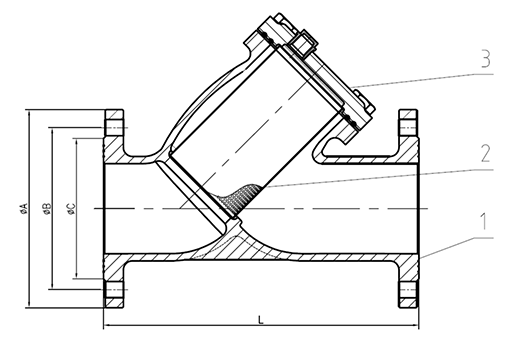

 Material of Main Parts:
Name Body Filter Screen End cover
Material CF8 304 CF8
Dimensions:
Size L PN16 Class150
DN NPS(Inch) ΦA ΦB ΦA ΦB
50 2'' 215 165 125 150 120.7
65 2  1/2'' 250 185 145 180 139.7
80 3'' 285 200 160 190 152.4
100 4'' 305 220 180 230 190.5
125 5'' 345 250 210 255 215.9
150 6'' 385 285 240 280 241.3
200 8'' 487 340 295 345 298.5
250 10'' 454 405 355 405 362
300 12'' 605 460 410 485 431.8
350 14'' 680 520 470 535 476.3
400 16'' 757 580 525 595 539.8
450 18'' 850 640 585 635 577.9
500 20'' 895 715 650 700 635
600 24'' 1070 840 770 815 749.3
