Size Range: DN25-DN150
Pressure: PN10/16
Body Materials: Aluminium alloy
Seat Materials: NBR/EPDM
Disc Materials: 304/316
Stem Materials: 410/304

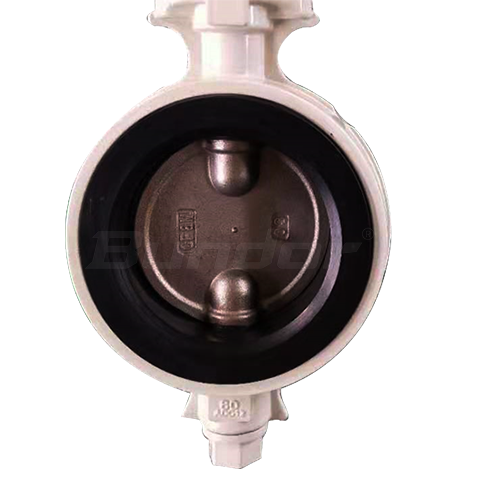

The valve body is made of high-performance aluminum alloy material, which can effectively prevent the temperature difference of the valve body and achieve no condensation on the surface of actuator and flange.
The valve body material has low water absorption, corrosion resistance, heat insulation and cold insulation, which is 4 times of the common material.
The valve plate is made of 304 material, and its mechanical properties and anti-corrosion properties are up to standard.
The rubber of valve seat uses EPDM rubber that meets the standard, which makes the resilience and pulling force of butterfly valve super stable and reliable, and there is no leakage even if it opend or closed more than 10000 times.
PE heat shrinkable plastic packaging technology are used in product packaging. Each Bundor product is individually packed with heat shrinkable film and built-in desiccant, which isolates air dust and helps to store and avoid product corrosion caused by mo
Each product of Bundor has its own QR code mark and unique ID number from the accessories to the finished products. By scanning the codes, the inspection results of each stage in the production process can be inquired to achieve traceability of product qu
Bundor's intelligent detection equipment integrates standard data measurement and pressure detection, and each inspection report is automatically generated, and each data and report is kept for 5 years to ensure that the factory qualification rate reache
As for the products of Bundor, they are insured by the Pacific insurance company with the quality of 10 million yuan, and the warranty lasts for 2 years. If they are damaged within two years, they will be compensated for the product's quality problem wit
Applicable medium：Clear water, sewage, sea water, weak acid and alkali, air, steam, etc
| Executive standard | Name | Design and manufacture | Structural length | Pressure-Testing Standards | Upper flange size | |||||||
| Reference standard | JIS B2032 | JIS B2002 | GB/T 13927-2008 | ISO 5211 | ||||||||

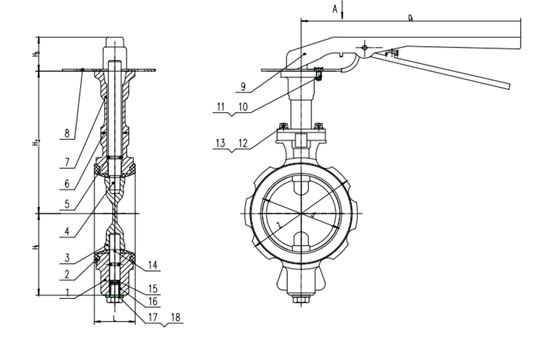

| Parts | Name | Body | Seat | Disc | Stem | Handle | ||||||
| Material | Aluminium alloy | NBR/EPDM | 304/316 | 416/304/316 | Aluminium alloy | |||||||
| Size | Caliber | d | L | Z | H1 | H2 | H3 | L1 | L2 | D1 | Weight/kg | |
| DN25-32 | 1" | 33 | 33 | 70 | 40 | 95 | 27 | 30 | 33 | 113 | 0.5 | |
| DN40 | 1.5" | 44 | 33 | 81 | 43 | 100 | 27 | 30 | 33 | 113 | 0.6 | |
| DN50 | 2" | 52 | 43 | 101 | 65 | 130 | 28 | 49 | 63 | 180 | 1.4 | |
| DN65 | 2.5" | 67 | 46 | 121 | 75 | 140 | 28 | 49 | 63 | 180 | 1.8 | |
| DN80 | 3" | 81.5 | 46 | 130.7 | 83 | 153 | 28 | 49 | 63 | 180 | 1.85 | |
| DN100 | 4" | 103 | 52 | 156 | 97 | 168 | 39 | 53 | 63 | 228 | 2.65 | |
| DN125 | 5" | 125 | 56 | 185.9 | 119 | 203 | 39 | 53 | 63 | 228 | 4.35 | |
| DN150 | 6" | 149 | 59 | 218 | 134 | 215 | 39 | 53 | 63 | 228 | 5.3 | |
