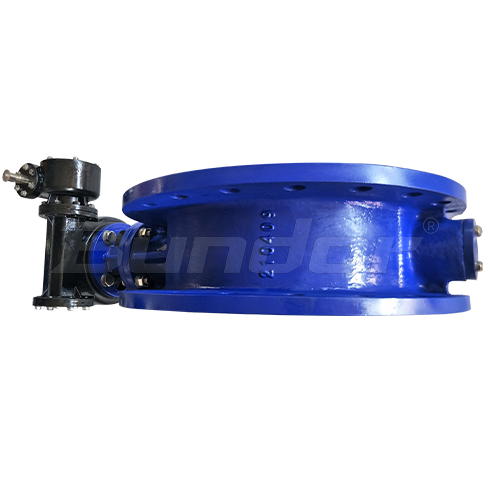

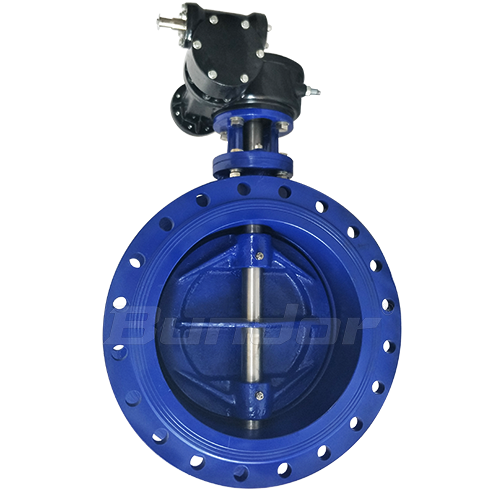

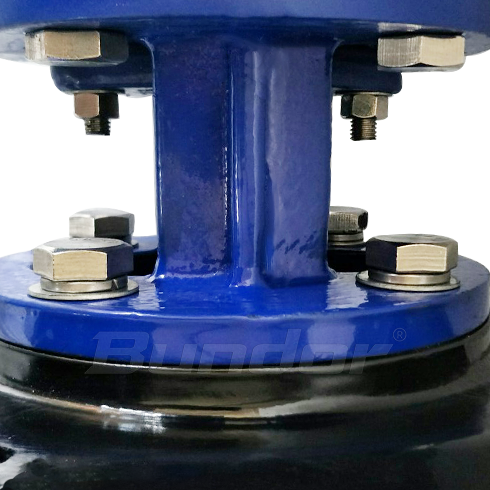

Ductile Iron Double Eccentric Butterfly Valve

Size Range: DN100-DN3000

Pressure: PN10/16

Body Materials: Ductile Iron/WCB

Seat Materials: 304+NBR

Disc Materials: QT450-10

Stem Materials: 2Cr13

INTRODUTCTION

ADVANTAGES

  • Ductile Iron/WCB body

    The body material is QT450 or WCB, and the chemical composition and mechanical properties meet the requirements of national standards. Material reports can be provided.

  • Processed by CNC precision machine

    The valve body and inner parts are processed by CNC precision machine with high precision.

  • Two-way sealing

    Adopt body sealing structure, which is different from the conventional plate sealing structure in the market, and can realize two-way sealing.

  • Multiple seats available

    There are rubber soft seals and stainless steel hard seals available. The valve plate and other parts can also be selected according to the working conditions.

  • More wear-resistant

    The valve seat is welded with stainless steel, which is more wear-resistant and has a longer service life.

  • Reduce torque

    The valve shaft is supported by self-lubricating sleeve bearings, which can reduce the friction produced during valve shaft transmission and reduce torque.

FEATURES

Applicable medium:Water, gas, oil, etc.
Suitable temperature:0℃~80℃
Application field:Water treatment, municipal construction, drainage, power plants, etc.

PARAMETERS

1. Executive standard:
Name Design and manufacture Face to face Length End  Flange Pressure Test
Reference Standard GB/T 12238 GB/T 12221 GB/T 17241.6 GB/T 13927

2. Material of Main Parts:
Name 5-Body 7-Disc 6-Stem 10-Disc Sealing 11-Body Sealing
Material QT450-10 QT450-10 2Cr13 NBR 304

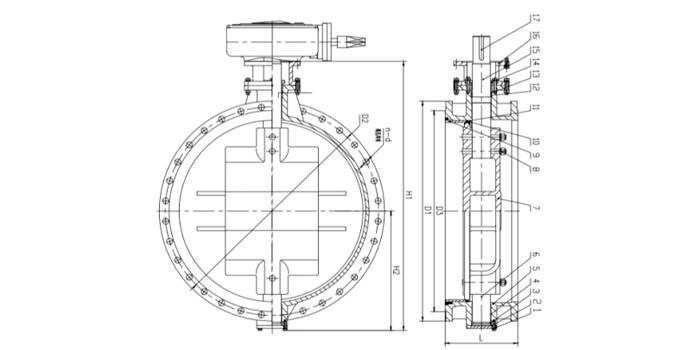

3.Dimensions:
Size   PN10 PN16
DN NPT L D2 n-d D2 n-d
100 4" 127 180 8-φ19 180 8-φ19
125 5" 140 210 8-φ19 210 8-φ19
150 6'' 140 240 8-φ22 240 8-φ22
200 8'' 152 295 8-φ22 295 12-φ22
250 10'' 165 350 12-φ22 355 12-φ28
300 12'' 178 400 12-φ22 410 12-φ28
350 14'' 190 460 16-φ22 470 16-φ28
400 16'' 216 515 16-φ28 525 16-φ31
450 18'' 222 565 20-φ28 585 20-φ31
500 20'' 229 620 20-φ28 650 20-φ24
600 24'' 267 725 20-φ31 770 20-φ37
700 28'' 292 840 24-φ31 840 24-φ37
800 32'' 318 950 24-φ34 950 24-φ40
900 36'' 330 1050 28-φ34 1050 28-φ40
1000 40'' 410 1160 28-φ37 1170 28-φ43
1200 48'' 470 1380 32-φ40 1390 32-φ49
1400 56'' 530 1590 36-φ43 1590 36-φ49
1600 64'' 600 1820 40-φ49 1820 40-φ56
1800 72'' 670 2020 44-φ49 2020 44-φ56
2000 80'' 760 2230 48-φ49 2230 48-φ62
2200 88'' 800 /
2400 96'' 850
2600 104'' 900
2800 112'' 950
3000 120'' 1000
