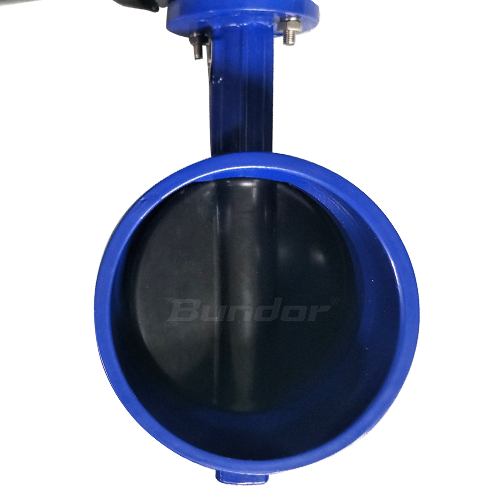

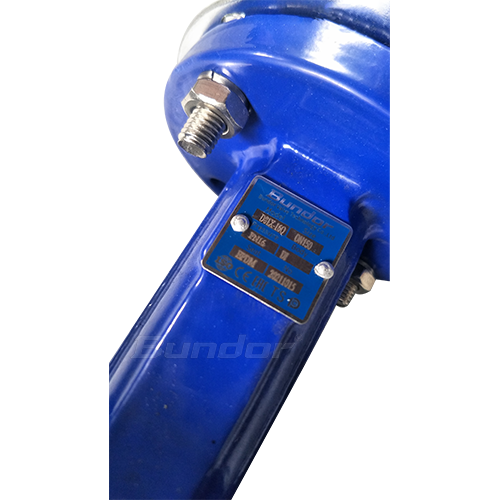

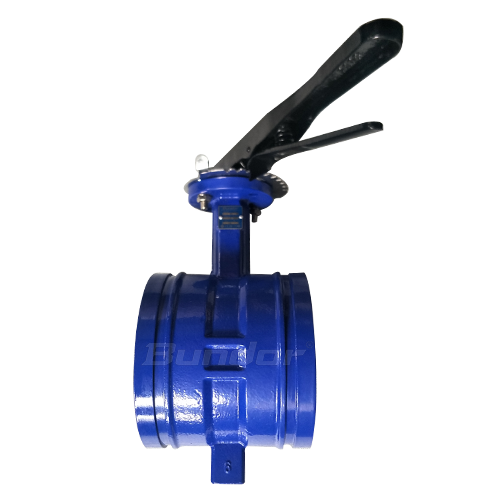

Grooved butterfly valve

Size Range: DN50-DN200

Pressure: PN16

Body Materials: Ductile iron

Disc Materials: QT450+EPDM

Stem Materials: 2Cr13

INTRODUTCTION

ADVANTAGES

  • Level 3 spheroidal rate

    QT450-10 ductile iron body. Level 3 spheroidal rate. 450Mpa tensile strength. Over 10% extension rate.

  • 50% rubber content

    EPDM seat is made of imported Germany Bayer brand raw materials. 50% rubber content. No leakage after 10,000 times Opening and closing test.

  • Easy to install

    One-piece shaft design,easy to install and replace.

  • High safety

    There is a circlip groove which fixed on 4.the upper end of shaft,to prevent the valve shaft from blowing out during use and improve safety.

  • Self-sealing

    The valve shaft seal adopts the combination structure of oil-free bearing and packing to realize self-sealing.

  • Rigorous stress testing

    Before leaving the factory, each valve is tested for pressure according to national standards to ensure that it is qualified.

FEATURES

Applicable medium:Water.
Suitable temperature:0~80℃
Application field:Fire pipeline, water treatment.

PARAMETERS

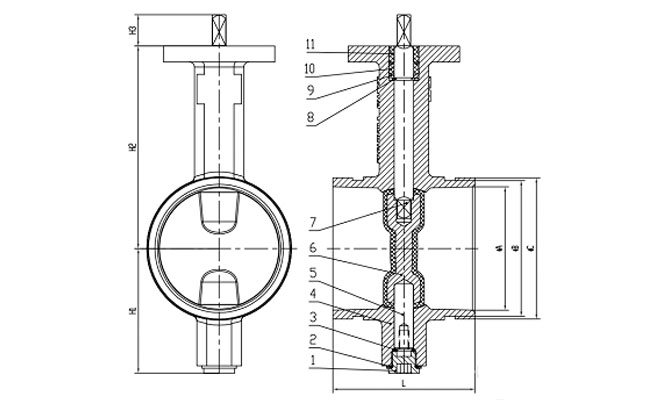

Name Design and manufacture Pressure Test  End Flange
Reference standard GB 5135.6 GB 5135.6 GB 5135.11
Name 4-Body 6-Disc 7-Shaft
Material QT450 QT450+EPDM 2Cr13
DN NPS (Inch) L φA φB φC
50 2'' 90 50 57 60.3
65 2  1/2'' 97 61 69 73
80 3'' 97 78 85 88.9
100 4'' 116 101 110 114.3
125 5'' 134 127 137 141.3
150 6'' 134 150 164 168.3
200 8'' 148 202 214.4 219.1
