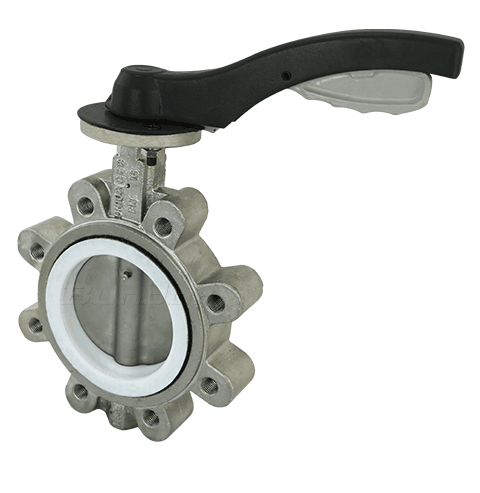

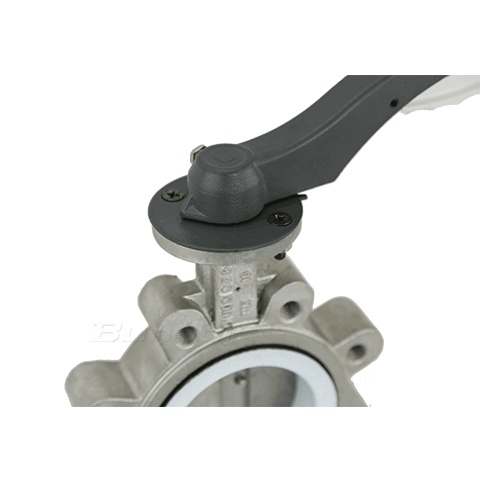

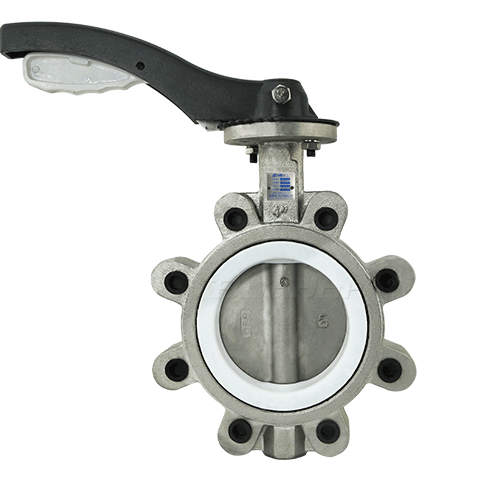

With-pin Type Lug Butterfly Valve

Size Range: 2~8"(DN50~DN200)

Pressure: PN10, PN16, Class125

Body Materials: Cast Iron, Ductile Iron

Seat Materials: NBR, EPDM, VITON, PTFE

Disc Materials: Ductile Iron, WCB, CF8,CF8M, Al-bronze C958

Stem Materials: SS416, SS304, SS316

INTRODUTCTION

ADVANTAGES

  • Solid body valve body, more stable

    Valve body is solid body, same caliber weight is heavier than other manufacturers.

  • Meet drinking water standards

    Provides rubber seats and epoxy spray to meet potable water standards.

  • Independent two-dimensional code identification

    Scanning code can query the inspection results of each stage in the production process of products to ensure the quality of products.

  • Humanized design of label location

    The label is set on both sides of the valve for the convenience of users.

  • The seat has a long service life

    Valve seat is made of imported rubber, with 50% rubber content, long service life and more than 10000 opening and closing times.

  • Ultrasonic cleaning before packaging

    Eliminate impurities in the valve body, ensure the cleanliness of the valve and prevent the valve itself to pipe water pollution.

  • Heat-shrinkable film for independent packaging

    PE thermal shrinkable film is used to package the valve independently, and built-in desiccant, to isolate air dust, avoid damp pollution valve.

FEATURES

Standard Test :

Body Test: 1.5 times the working pressure with water. This test is performed after valve assembly and with disc in half position open, it is called as a body hydro test.

Seat Test: 1.1 times the working pressure with water.

Function / Operation Test: At the time of final inspection, each valve and its actuator (Flow-Control Lever / Gear / Pneumatic Actuator), under goes a complete operating test (Open/Close). This test carried out without pressure and at ambient temperature. It ensures the correct operation of the valve / actuator assembly with accessories such as solenoid valve, limit switches, air filter regulator etc.

Special Test: On request, any other test can be carried out according to special instruction by client.

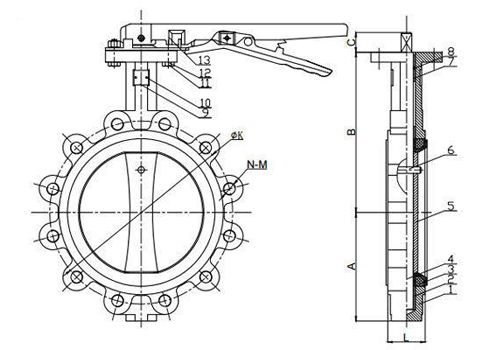

PARAMETERS

SIZE A B C L ANSI 150B DIN PN 10 DIN PN 16 JIS 10K ISO  5211 Top Flange
mm in øK N-ød øK N-ød øK N-ød øK N-ød øD øD1 N-øG
40 1.5" 67 141 32 33 98.5 4-ø16 110 4-ø18 110 4-ø18 105 4-ø19 65 50 4-ø8 F05
50 2" 67 141 32 43 120.6 4-ø19 125 4-ø18 125 4-ø18 120 4-ø19 65 50 4-ø8 F05
65 2½" 75 151 32 46 139.7 4-ø19 145 4-ø18 145 4-ø18 140 4-ø19 65 50 4-ø8 F05
80 3" 95 160 32 46 152.4 4-ø19 160 8-ø18 160 8-ø18 150 8-ø19 65 50 4-ø8 F05
100 4" 111 180 32 52 190.5 8-ø19 180 8-ø18 180 8-ø18 175 8-ø19 90 70 4-ø10 F07
125 5" 129 193 32 56 215.9 8-ø22.4 210 8-ø18 210 8-ø18 210 8-ø23 90 70 4-ø10 F07
150 6" 142 207 32 56 241.3 8-ø22.4 240 8-ø22 240 8-ø22 240 8-ø23 90 70 4-ø10 F07
200 8" 170 240 45 60 298.4 8-ø22.4 295 8-ø22 295 12-ø22 290 12-ø23 125 102 4-ø12 F10
250 10" 206 270 45 68 361.9 12-ø25.4 350 12-ø22 355 12-ø26 355 12-ø25 125 102 4-ø12 F10
300 12" 238 316 45 78 431.8 12-ø25.4 400 12-ø22 410 12-ø26 400 16-ø25 125 102 4-ø12 F10
350 14" 267 368 45 78 476.2 12-ø28.4 460 16-ø22 470 16-ø26 445 16-ø25 125 102 4-ø12 F10
400 16" 298 400 51 86 539.7 16-ø28.4 515 12-ø26 525 16-ø30 510 16-ø27 175 140 4-ø18 F14
450 18" 318 422 51 105 577.8 16-ø31.8 565 20-ø26 585 20-ø30 565 20-ø27 175 140 4-ø18 F14
500 20" 349 479 57 130 635 20-ø31.8 620 20-ø26 650 20-ø33 620 20-ø27 175 140 4-ø18 F14
600 24" 410 562 70 152 749.3 20-ø35.1 725 20-ø30 770 20-ø36 730 24-ø33 210 165 4-ø22 F16
