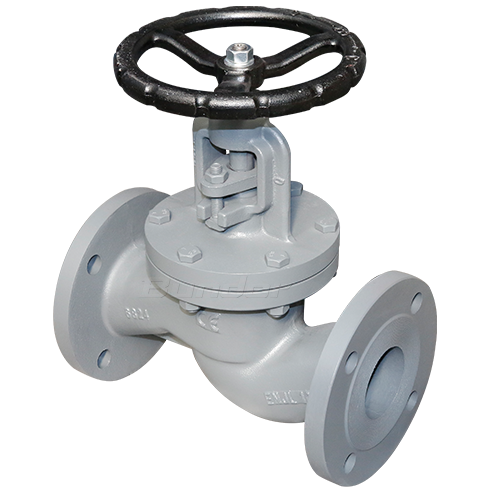

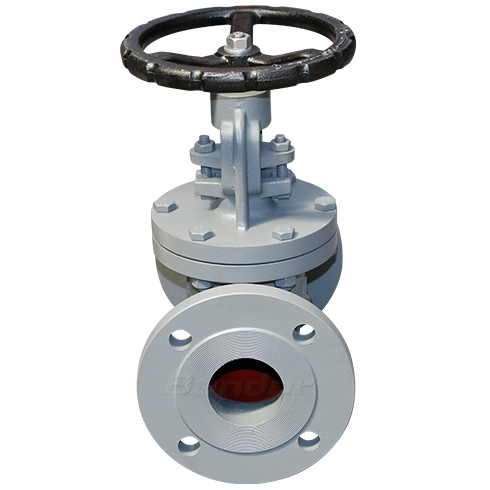

J41Type Flange Cast Iron Globe Valve

Body Materials: Bonnet: Grey iron, Ductile iron

Disc Materials: Grey iron, Ductile iron

Stem Materials: Carbon steel, Stainless steel

INTRODUTCTION

ADVANTAGES

  • The position of signboard is humanized

    The position of the signboard is humanized and set on both sides of the valve body for users to view after installation.

  • The sign has a beautiful appearance and strong connection

    Laser marking, clear writing, long life.Use stainless steel rivet to fix, the appearance is more beautiful, the connection is more firm.

  • The bolt has strong corrosion resistance

    The bolt is made of 304 material, which has stronger corrosion resistance.

  • Disc pin has high strength and abrasion resistance

    The pin adopts tempering treatment, high strength, abrasion resistance, safe and reliable connection.

  • Independent two-dimensional code identification

    Scanning code can query the inspection results of each stage in the production process of products to ensure the quality of products.

  • Pay two back if one bad

    By CPIC 10 million quality underwrite, quality assurance 2 years, because product itself quality problem pays unconditionally.

FEATURES

Adoptive Standards:
Body Test: 1.5 times the working pressure with water. This test is performed after valve assembly and with disc in half position open, it is called as a body hydro test.
Seat Test: 1.1 times the working pressure with water.
Function / Operation Test: At the time of final inspection, each valve and its actuator (Flow-Control Lever / Gear / Pneumatic Actuator), under goes a complete operating test (Open/Close). This test carried out without pressure and at ambient temperature. It ensures the correct operation of the valve / actuator assembly with accessories such as solenoid valve, limit switches, air filter regulator etc.
Special Test: On request, any other test can be carried out according to special instruction by client.

PARAMETERS

PN(Mpa) 1.6
Applicable Temperature ≤200℃
Applicable Medium Water, Oil, Gas and corrosive medium
Main Material Cast iron, brass, carbon chrome-plated)

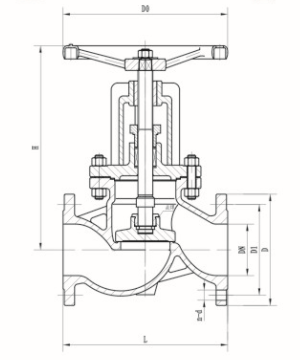

DN(mm) L D D1 H D0 Weight(kg)
15 130 95 65 105-125 73 4.25
20 150 105 75 105-125 73 4.7
25 160 115 85 115-135 95 5.85
32 180 135 100 120-140 95 9.2
40 200 145 110 140-165 125 11.35
50 230 160 125 160-185 125 16.6
65 290 180 145 196-220 170 20.3
80 310 195 160 285-330 217 30
100 350 215 180 305-360 260 40
125 400 245 210 367-396 280 56
150 480 280 240 431-465 320 80
200 600 335 295 513-562 400 122
250 650 405 355 577-635 400 179
