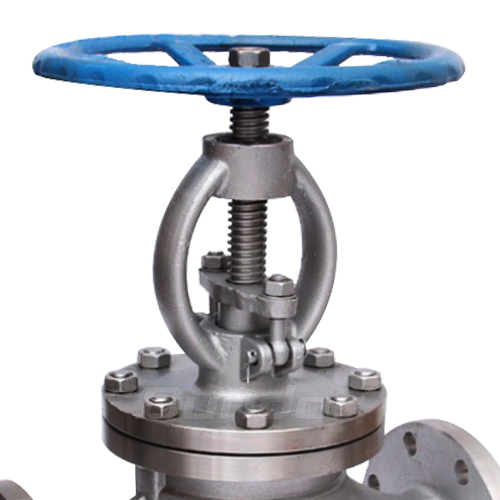

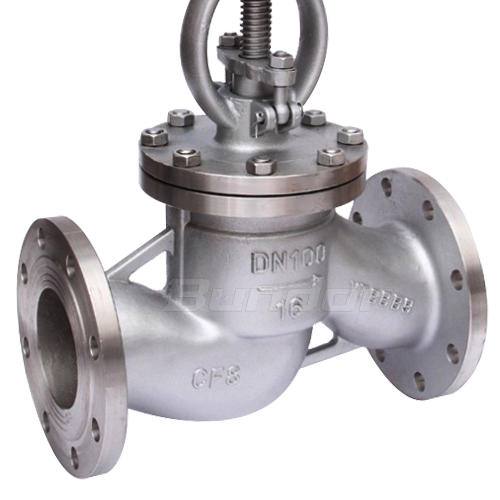

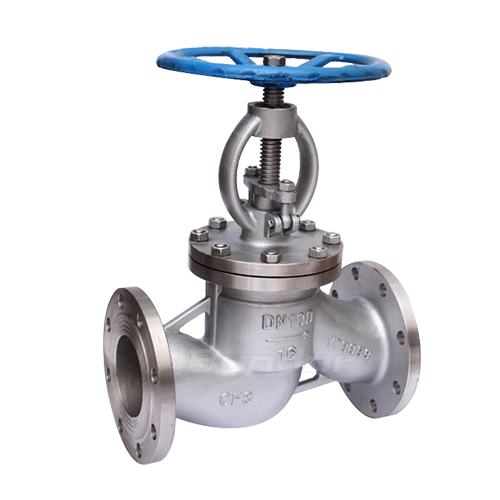

Stainless Steel Globe Valve

Size Range: DN50-DN300

Pressure: PN16/150LB

Body Materials: 304

Seat Materials: 304

Disc Materials: 304

Stem Materials: 304

INTRODUTCTION

ADVANTAGES

  • Precision casting

    Precision casting valve body,2 shot blasting treatment,smooth appearance, no trachoma.

  • CNC lathe processing

    CNC lathe processing of internal parts.

  • Heavy type valve body

    Heavy type valve body.

  • Ensure better sealing

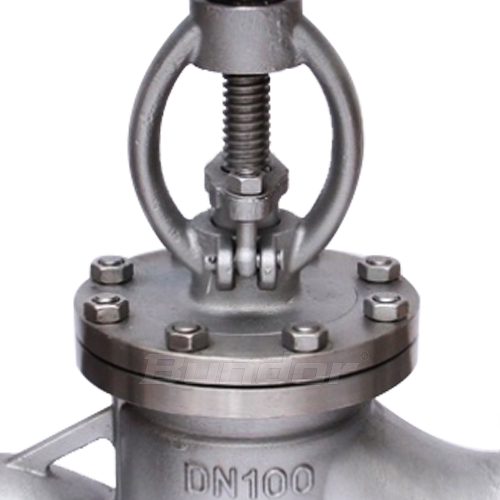

    Inverted seal treatment of contact surface between bonnet and stem to ensure better sealing.

  • Pickling passivation treatment

    Each valve body is pickled and passivated to make the casting uniform and bright and improve corrosion resistance.

  • Strict quality inspection

    Each valve will be inspected for shell and seal pressure before leaving factory.

FEATURES

Working temperature:0-325℃
Suitable medium:Water, weak corrosive medium, etc.
Application : Water treatment, petrochemical, food and medicine, electric energy, metallurgy, etc.


Product Identification

The axis of the valve stem is perpendicular to the sealing surface of the valve seat, the stem is opened or closed relatively short, which makes the valve is very suitable for cutting off or regulating the medium; The valve body usually is  304, 316 ,etc. It widely used in chemical, shipping, medicine, food machinery and other industries.

PARAMETERS

Optional Body Seat Seal Disc Stem Actuator Pressure
CF3/ CF3M/CF8/ CF8M stainless steel / alloy steel CF3/ CF3M/CF8/CF8M 2Cr13/ 304/316 Handwheel/
Bevel Gear/ Motorized/
Pneumatic
PN16/PN25/PN40/150LB

Name Design and manufacture Face to face Length Pressure Test  Connection Flange
Reference
Standard
GB/T 12235
ANSI B16.34
GB/T 12221
ASME B16.10
GB/T 13927
API 598
JB/T 79
ASME B16.5

Name Body Disc Stem Seat Seal Handwheel
Material 304 304 304 304 DI

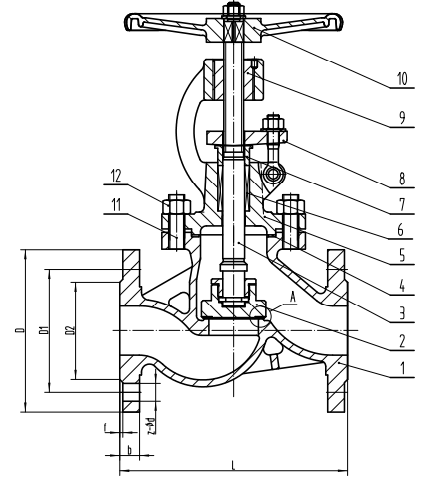

Size PN16 150LB
DN NPS(inch) L D D1 Z-φd L D D1 Z-φd
50  2'' 230 160 125 4-18 203 152 120.5 4-19
65  2  1/2'' 290 180 145 4-18 216 178 139.5 4-19
80  3'' 310 195 160 8-18 241 190 152.5 4-19
100  4'' 350 215 180 8-18 292 229 190.5 8-19
125  5'' 400 245 210 8-18 356 254 216 8-22
150  6'' 480 280 240 8-22 406 279 241.5 8-22
200  8'' 600 335 295 12-22 495 343 298.5 8-22
250  10'' 650 405 355 12-26 622 406 362 12-25
300  12'' 750 460 410 12-26 698 483 432 12-25



RELATED PRODUCT

Check valves, globe valves, ball valves, filters, rubber joints, etc. are commonly used pipe accessories in fluid pipelines, with functions such as cut-off, regulation, diversion, prevention of backflow, pressure regulation, diversion, or pressure relief. It is commonly used to control the flow of various types of fluids such as air, water, steam, various corrosive media, mud, oil products, liquid metals, and radioactive media.
