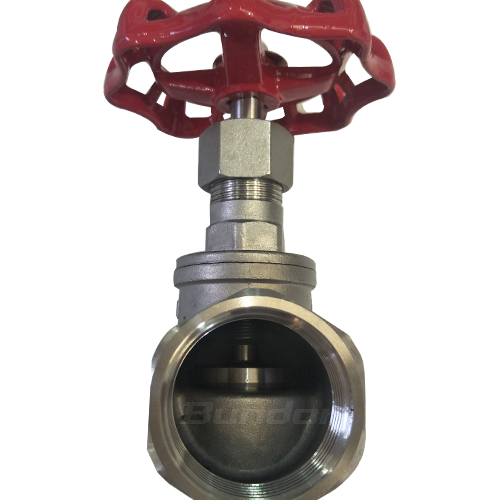

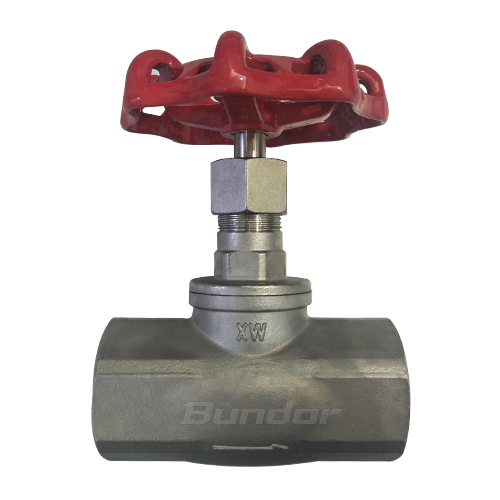

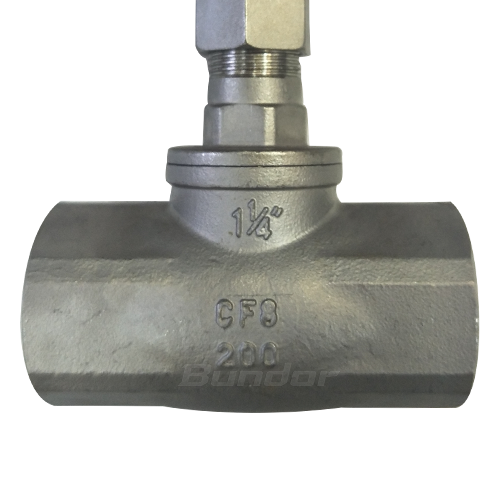

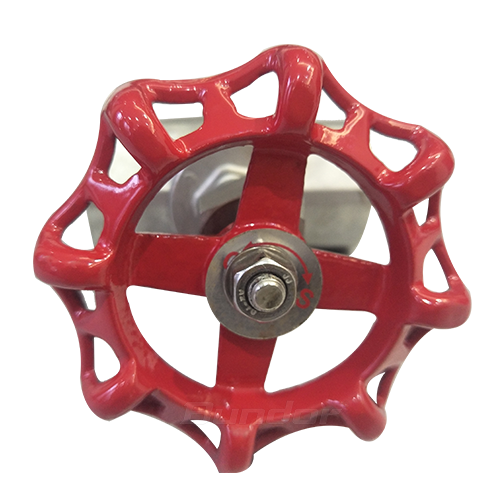

Stainless steel thread B type globe valve

Size Range: DN15-DN50

Pressure: PN16

Body Materials: CF8

Disc Materials: CF8

Stem Materials: 304

INTRODUTCTION

ADVANTAGES

  • Meets the national standard

    The material meets the national standard.

  • Ensure processing accuracy

    All valve body and parts are processed by CNC machines to make sure processing accuracy.

  • Long-term storage

    After pressure test, each valve is sprayed with anti-rust oil to ensure long-term storage of the valve, and the cleanliness of the inner cavity reaches the JB/T7748 standard;

  • Pressure tested

    Each valve is tested pressure as per national standards.

  • Prevent damage when transport

    Each valve use waterline blocking protection to avoid the damage of connecting surface during transportation.

  • Thread mode can be customized production

    G thread, NPT thread, BSP and other customized thread can be provided according to customer needs.

FEATURES

Working temperature:-20℃~180℃
Suitable medium:Water, oil, gas etc.
Application : Water treatment, Petrochemical, food , electric energy, etc.


PARAMETERS

Executive standard:
Name Design and manufacture Pressure Test
Reference standard GB/T 12235 GB/T 13927

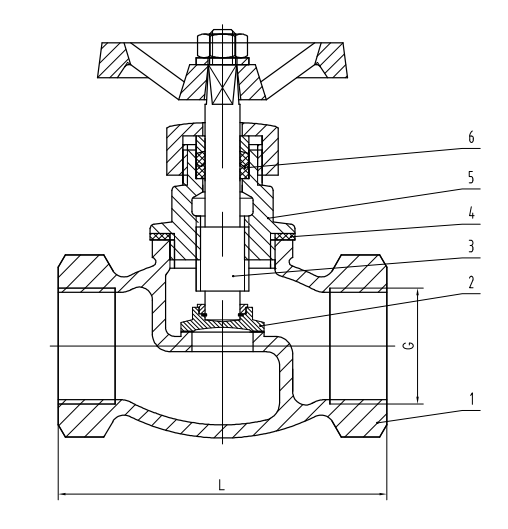

Material of Main Parts:
Name 1-Body 2-Disc 3-Stem 4-Gasket 5-Bonnet
Material CF8 CF8 304 PTFE CF8

Dimensions:
Size B type
DN G L
15 1/2'' 64
20 3/4'' 74
25 1'' 84
32 1 1/4'' 102
40 1 1/2'' 113
50 2'' 132
