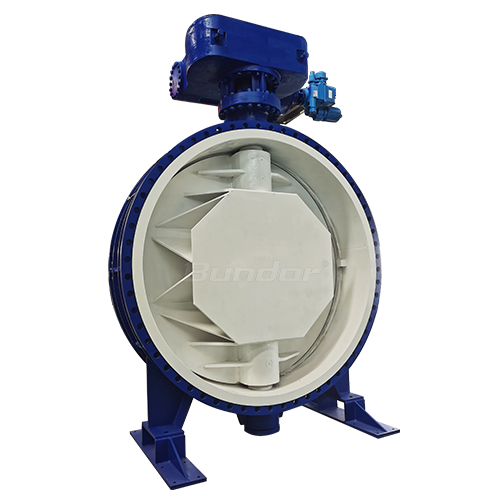

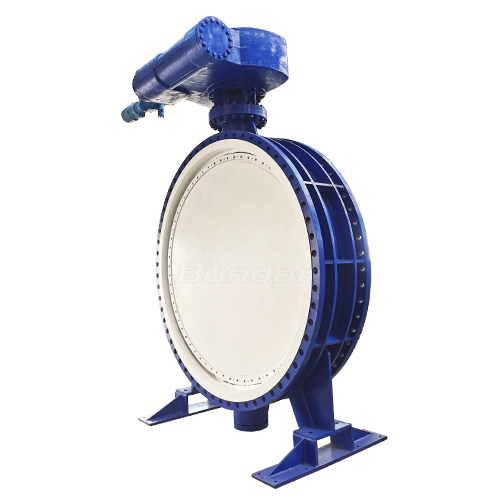

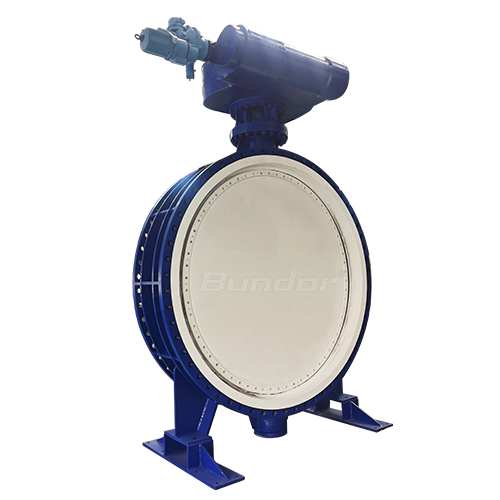

The body material is QT450 or WCB, and the chemical composition and mechanical properties meet the requirements of national standards. Material reports can be provided.
Size Range: DN100-DN3000
Pressure: PN10/16
Body Materials: Ductile Iron/WCB
Seat Materials: 304+NBR
Disc Materials: QT450-10
Stem Materials: 2Cr13
The body material is QT450 or WCB, and the chemical composition and mechanical properties meet the requirements of national standards. Material reports can be provided.
The valve body and inner parts are processed by CNC precision machine with high precision.
All Bundor products can provide the material inspection report of the main parts.
There are rubber soft seals and stainless steel hard seals available. The valve plate and other parts can also be selected according to the working conditions.
The valve seat is welded with stainless steel, which is more wear-resistant and has a longer service life.
The valve shaft is supported by self-lubricating sleeve bearings, which can reduce the friction produced during valve shaft transmission and reduce torque.
| Name | Design and manufacture | Face to face Length | End Flange | Pressure Test |
| Reference Standard | GB/T 12238 | GB/T 12221 | GB/T 17241.6 | GB/T 13927 |
| Name | 5-Body | 7-Disc | 6-Stem | 10-Disc Sealing | 11-Body Sealing |
| Material | QT450-10 | QT450-10 | 2Cr13 | NBR | 304 |
| Size | PN10 | PN16 | ||||
| DN | NPT | L | D2 | n-d | D2 | n-d |
| 100 | 4" | 127 | 180 | 8-φ19 | 180 | 8-φ19 |
| 125 | 5" | 140 | 210 | 8-φ19 | 210 | 8-φ19 |
| 150 | 6'' | 140 | 240 | 8-φ22 | 240 | 8-φ22 |
| 200 | 8'' | 152 | 295 | 8-φ22 | 295 | 12-φ22 |
| 250 | 10'' | 165 | 350 | 12-φ22 | 355 | 12-φ28 |
| 300 | 12'' | 178 | 400 | 12-φ22 | 410 | 12-φ28 |
| 350 | 14'' | 190 | 460 | 16-φ22 | 470 | 16-φ28 |
| 400 | 16'' | 216 | 515 | 16-φ28 | 525 | 16-φ31 |
| 450 | 18'' | 222 | 565 | 20-φ28 | 585 | 20-φ31 |
| 500 | 20'' | 229 | 620 | 20-φ28 | 650 | 20-φ24 |
| 600 | 24'' | 267 | 725 | 20-φ31 | 770 | 20-φ37 |
| 700 | 28'' | 292 | 840 | 24-φ31 | 840 | 24-φ37 |
| 800 | 32'' | 318 | 950 | 24-φ34 | 950 | 24-φ40 |
| 900 | 36'' | 330 | 1050 | 28-φ34 | 1050 | 28-φ40 |
| 1000 | 40'' | 410 | 1160 | 28-φ37 | 1170 | 28-φ43 |
| 1200 | 48'' | 470 | 1380 | 32-φ40 | 1390 | 32-φ49 |
| 1400 | 56'' | 530 | 1590 | 36-φ43 | 1590 | 36-φ49 |
| 1600 | 64'' | 600 | 1820 | 40-φ49 | 1820 | 40-φ56 |
| 1800 | 72'' | 670 | 2020 | 44-φ49 | 2020 | 44-φ56 |
| 2000 | 80'' | 760 | 2230 | 48-φ49 | 2230 | 48-φ62 |
| 2200 | 88'' | 800 | / | |||
| 2400 | 96'' | 850 | ||||
| 2600 | 104'' | 900 | ||||
| 2800 | 112'' | 950 | ||||
| 3000 | 120'' | 1000 | ||||
