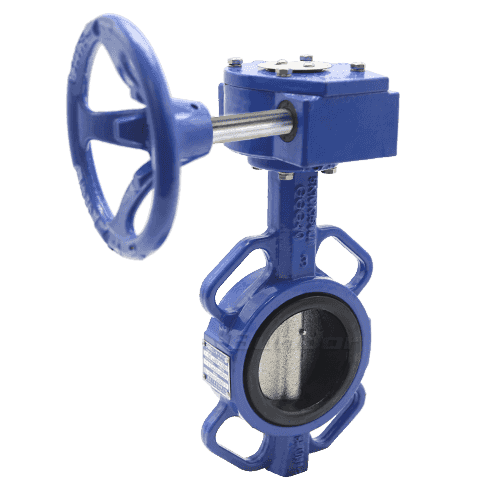

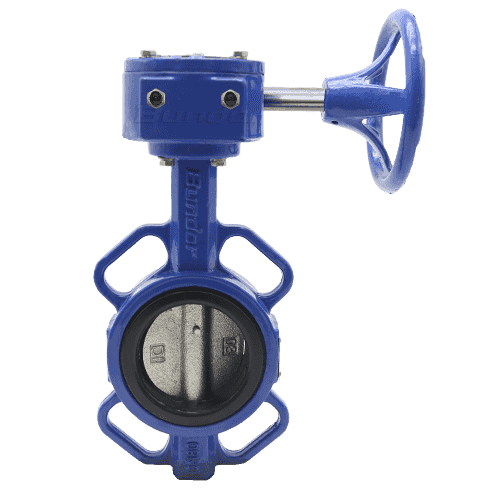

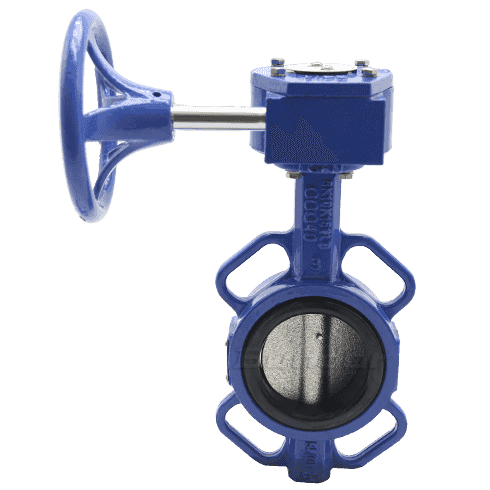

Ductlie Iron Worm Gear Operated Butterfly Valve

Size Range: 3’’/DN80

Pressure: 5K/10K/150LB

Body Materials: Ductile Iron

Seat Materials: EPDM

Disc Materials: Ductile Iron

Stem Materials: 420stainless steel

INTRODUTCTION

ADVANTAGES

  • Solid valve body, more stable

    Valve body is solid body, same caliber weight is heavier than other manufacturers.

  • Valve shaft support is strong, axial sealing is reliable

    Valve shaft and valve body with 4 oil-free bearings, 3 O sealing, valve shaft support more powerful, more reliable axial sealing.

  • Ultrasonic cleaning before packaging

    Eliminate impurities in the valve body, ensure the cleanliness of the valve and prevent the valve itself to pipe water pollution.

  • Valve body spray brand epoxy resin plastic powder

    Valve body spray using brand aksu epoxy resin plastic powder, can deposit thicker thickness, melt curing adhesion is stronger.

  • Heat-shrinkable film for independent packaging

    PE thermal shrinkable film is used to package the valve independently, and built-in desiccant, to isolate air dust, avoid damp pollution valve.

  • The position of signboard is humanized

    The position of the signboard is humanized and set on both sides of the valve body for users to view after installation.

FEATURES

Applicable medium:fresh water, sewage, sea water, weak acid and alkali, air, steam, etc.
Suitable temperature:-20 degrees Celsius to 120 degrees Celsius
Application field: Municipal construction, water treatment, electricity, water supply and drainage, water conservancy projects.

PARAMETERS

Parts 1 2 3 4 5 6
Name Body Seat Disc Stem O-rings Handle
Material  DI EPDM/NBR DI/CF8/CF8M SS304/SS316 EPDM/NBR Cast Iron

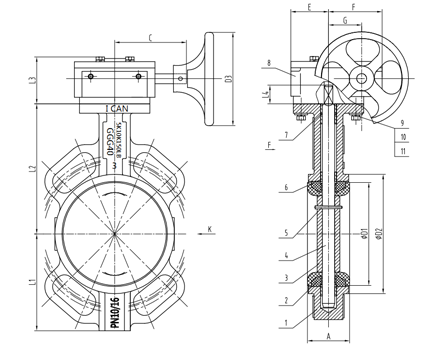

NPS DN A D1 D2 L1 L2 L3 L4 B C E F G φD3 Top Flanged
2″ DN50 45 73.3 92.3 75 129 59 24 9 110 45 67 44 136 F05
2.5″ DN65 49 86 107 82 136 59 24 9 110 45 67 44 136 F05
3″ DN80 49 100.9 122 99 153 59 24 9 110 45 67 44 136 F05
4″ DN100 55 132 153 110 167 59 24 11 110 45 67 44 136 F07
5″ DN125 58.5 156 179 125 193 59 24 14 110 45 67 44 136 F07
6″ DN150 59 185.4 208.4 145 209 59 24 14 110 45 67 44 136 F07
8″ DN200 64.5 235.2 262.3 170 251 75 30 17 172 61 85 53 277 F10
10″ DN250 72 289.4 316.3 213 283 75 30 22 172 61 85 53 277 F10
12″ DN300 82 341.2 372 240 315 82 30 22 165 78 109 79 277 F10
