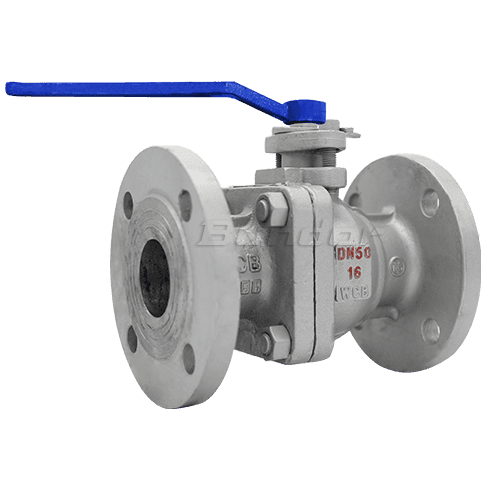

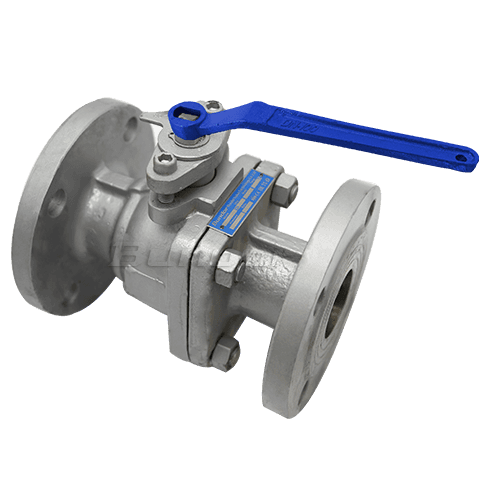

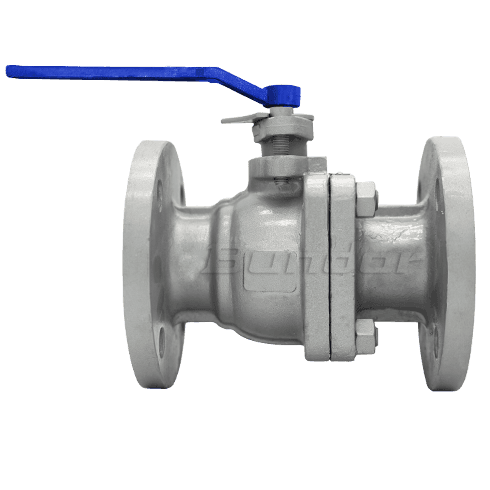

Cast Steel Ball Valve

Size Range: DN25-DN250

Pressure: PN16/25/40/63

Body Materials: WCB

Seat Materials: PTFE

Disc Materials: 201stainless steel

Stem Materials: WCB

INTRODUTCTION

ADVANTAGES

  • Solid valve body, more stable

    Valve body is solid body, same caliber weight is heavier than other manufacturers.

  • The position of signboard is humanized

    The position of the signboard is humanized and set on both sides of the valve body for users to view after installation.

  • The sign has a beautiful appearance and strong connection

    Laser marking, clear writing, long life.Use stainless steel rivet to fix, the appearance is more beautiful, the connection is more firm.

  • The bolt has strong corrosion resistance

    The bolt is made of 304 material, which has stronger corrosion resistance.

  • Disc pin has high strength and abrasion resistance

    The pin adopts tempering treatment, high strength, abrasion resistance, safe and reliable connection.

  • Independent two-dimensional code identification

    Scanning code can query the inspection results of each stage in the production process of products to ensure the quality of products.

FEATURES

Applicable medium:Water, steam, oil.
Suitable temperature:-29℃~180℃
Application field: Municipal construction, water treatment, electricity, petroleum, water supply and drainage, water conservancy projects.

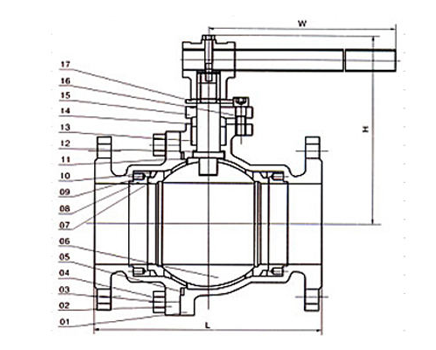

PARAMETERS

SIZE PN16 PN25
DN NPS L ΦA ΦB ΦC L ΦA ΦB ΦC
25 1'' 150 115 85 68 150 115 85 68
32 1  1/4'' 165 140 100 78 165 140 100 78
40 1  1/2'' 180 150 110 88 180 150 110 88
50 2'' 200 165 125 102 200 165 125 102
65 2  1/2'' 220 185 145 122 220 185 145 122
80 3'' 250 200 160 138 250 200 160 138
100 4'' 280 220 180 158 280 235 190 162
125 5'' 320 250 210 188 320 270 220 188
150 6'' 360 285 240 212 360 300 250 218
200 8'' 400 340 295 268 400 360 310 278
250 10'' 450 405 355 320 450 425 370 335
