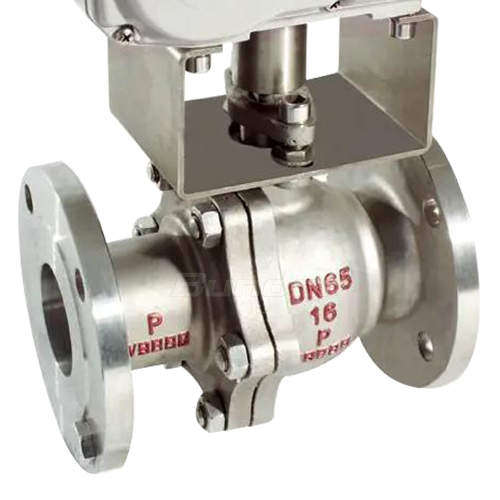

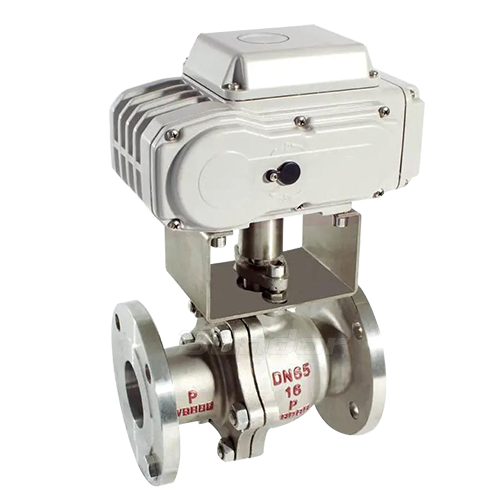

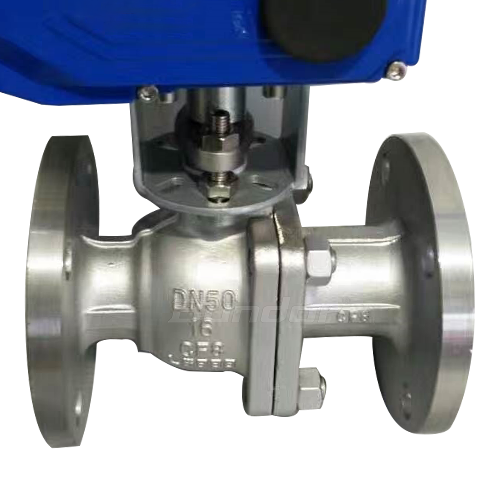

Electric Ball Valve

Size Range: DN15-DN300

Pressure: PN16

Body Materials: WCB/Stainless steel

Seat Materials: PTFE/Stainless steel /Hard alloy

Disc Materials: 201/304/316/316L

Stem Materials: 2Cr13/304/316

INTRODUTCTION

ADVANTAGES

  • Precision casting valve body

    The valve body is a precision casting valve body, the material is up to standard, the appearance is fine, and there is no trachoma.

  • Durable valve body

    The valve body is a solid durable body.

  • Stainless steel forged sphere

    The sphere is a stainless steel forged sphere.

  • Excellent safety performance

    Anti blow-out shaft design with excellent safety performance.

  • IP67 protection level

    The protection level of electric actuator reaches IP67.

  • Strict quality inspection

    Each valve will be inspected for shell and seal pressure before leaving factory.

FEATURES

The electric ball valve is a ball valve equipped with an electric actuator to realize local control and remote centralized control. The valve can be controlled on and off in the control room, and there is no need to go to the site or bring manual control to high altitude and dangerous places. To a large extent It saves human resources and time and improves safety.

Suitable medium:Water ,steam,oil products etc.
Working temperature:-20℃~150℃.
Application field:Municipal construction, water conservancy projects, powe station, water supplier and drainage, water treatment, oil & petrochemical industry.

PARAMETERS

Optional configuration Name Body Seat seal Ball Shaft
Material WCB/CF3M/CF8/ CF8M PTFE/Stainless steel /Hard alloy 201/304/316/316L 2Cr13/304/316

1.Executive standard:
Name Design and manufacture Face to face Length Inspection Standard End  Flange
Reference standard GB/T 12237 GB/T 12221 GB/T 13927 JB/T 79

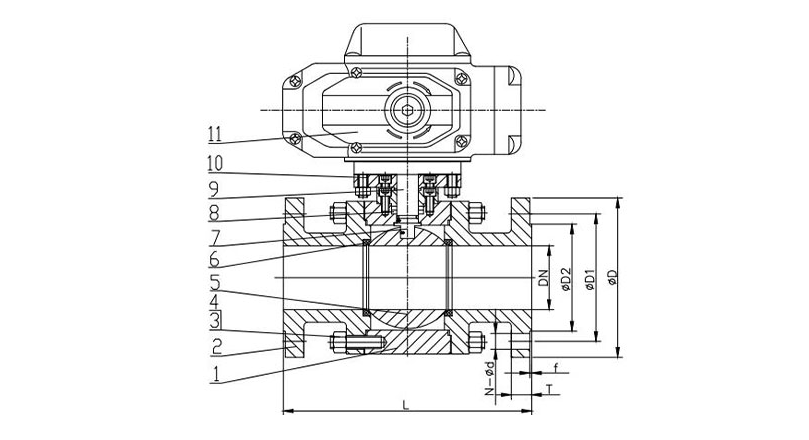

2.Material of Main Parts:
Name 1-Body 6-Seat seal 5-Ball 7-Shaft 11-Elecrtric actuator
Materials CF8 PTFE 304 304 Aluminium alloy

3.Dimensions:
DN NPS L ΦD ΦD1 ΦD2 Z-Φd
15 1/2'' 130 95 65 45 4-14
20 3/4'' 140 105 75 55 4-14
25 1'' 150 115 85 65 4-14
32 1  1/4'' 165 135 100 78 4-18
40 1  1/2'' 180 145 110 85 4-18
50 2'' 200 160 125 100 4-18
65 2  1/2'' 220 180 145 120 4-18
80 3'' 250 195 160 135 8-18
100 4'' 280 215 180 155 8-18
125 5'' 320 245 210 185 8-18
150 6'' 360 280 240 210 8-23
200 8'' 400 335 295 265 12-23
250 10'' 450 405 355 320 12-25
300 12'' 620 460 410 375 12-25
