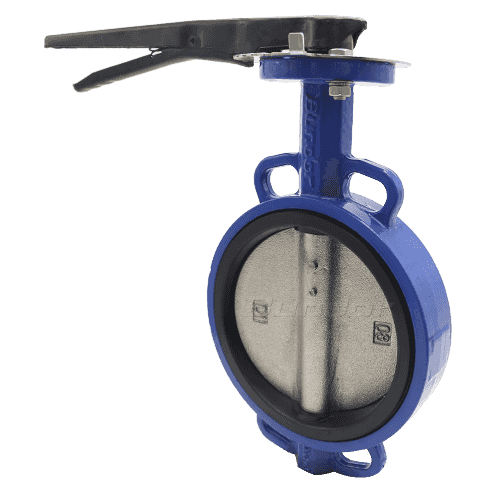

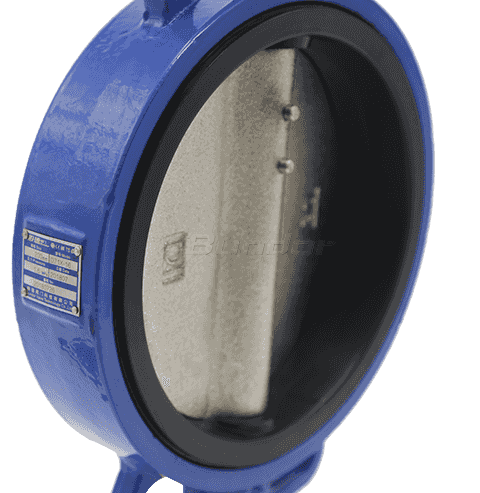

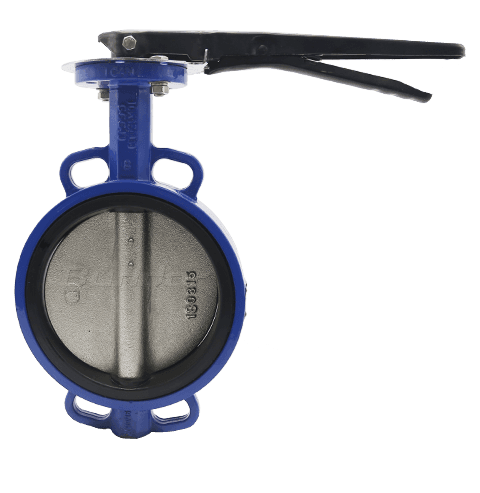

Wafer Style Butterfly Valve

Size Range: 8''/DN200

Pressure: 5k/10k/150LB

Body Materials: Ductile Iron

Seat Materials: EPDM

Disc Materials: 304stainless steel

Stem Materials: 304stainless steel

INTRODUTCTION

ADVANTAGES

  • The seat has a long service life

    Valve seat is made of imported rubber, with 50% rubber content, long service life and more than 10000 opening and closing times.

  • Wide edge seat with reliable sealing performance

    Convenient installation of valve, wide contact surface with flange boss on pipeline, reliable sealing performance.

  • Solid valve body, more stable

    Valve body is solid body, same caliber weight is heavier than other manufacturers.

  • Ultrasonic cleaning before packaging

    Eliminate impurities in the valve body, ensure the cleanliness of the valve and prevent the valve itself to pipe water pollution.

  • Valve body spray brand epoxy resin plastic powder

    Valve body spray using brand aksu epoxy resin plastic powder, can deposit thicker thickness, melt curing adhesion is stronger.

  • Heat-shrinkable film for independent packaging

    PE thermal shrinkable film is used to package the valve independently, and built-in desiccant, to isolate air dust, avoid damp pollution valve.

FEATURES

Applicable medium:fresh water, sewage, sea water, weak acid and alkali, air, steam, etc.
Suitable temperature:according to seat material
Application field: municipal construction, water treatment, power, water supply and drainage, water conservancy projects.

PARAMETERS

Parts 1 2 3 4 5 6
Name Body Seat Disc Stem O-rings Handle
Material  DI EPDM DI 45#galvanized NBR Iron

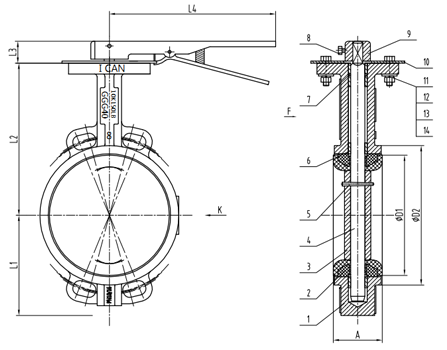

DN NPS A D1 D2 L1 L2 L3 L4 B Top Flange
DN50 2" 45 73.3 92.3 75 129 24 220 9 F05
DN65 2.5" 49 86 107 82 136 24 220 9 F05
DN80 3" 49 100.9 122 99 153 24 220 9 F05
DN100 4" 55 132 153 110 167 24 250 11 F07
DN125 5" 58.5 156 179 125 193 24 250 14 F07
DN150 6" 59 185.4 208.4 145 209 24 302 14 F07
DN200 8" 64.5 235.2 262.3 170 251 30 360 17 F10
