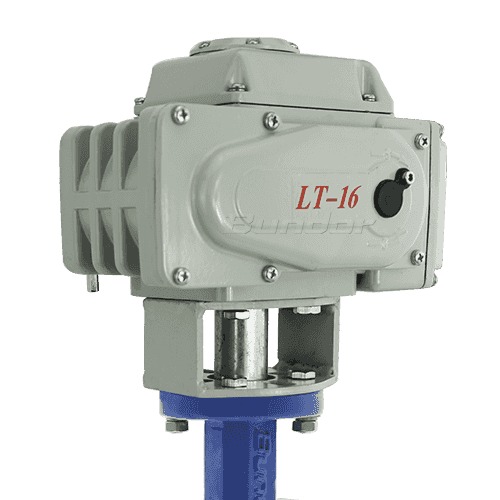

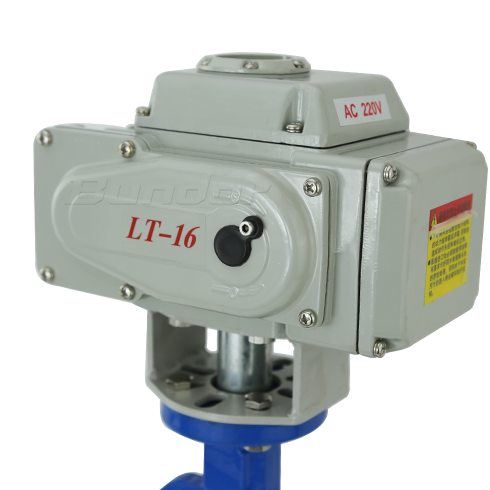

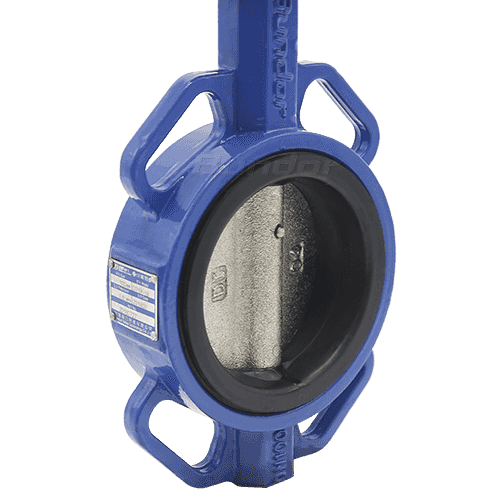

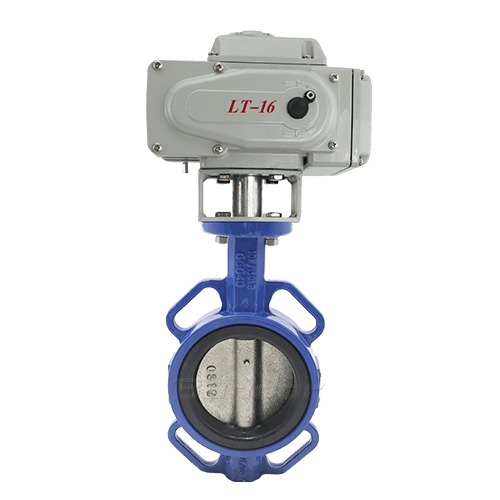

Motorized Wafer Butterfly Valve

Size Range: 2~32"(DN50~DN800)

Pressure: PN10, PN16, Class125

Body Materials: Cast Iron, Ductile Iron

Seat Materials: NBR, EPDM, VITON, PTFE

Disc Materials: Ductile Iron, WCB, CF8,CF8M, Al-bronze C958

Stem Materials: SS416, SS304, SS316

INTRODUTCTION

ADVANTAGES

  • Heat-shrinkable film for independent packaging

    PE thermal shrinkable film is used to package the valve independently, and built-in desiccant, to isolate air dust, avoid damp pollution valve.

  • The position of signboard is humanized

    The position of the signboard is humanized and set on both sides of the valve body for users to view after installation.

  • The sign has a beautiful appearance and strong connection

    Laser marking, clear writing, long life.Use stainless steel rivet to fix, the appearance is more beautiful, the connection is more firm.

  • The bolt has strong corrosion resistance

    The bolt is made of 304 material, which has stronger corrosion resistance.

  • Disc pin has high strength and abrasion resistance

    The pin adopts tempering treatment, high strength, abrasion resistance, safe and reliable connection.

  • Pay two back if one bad

    By CPIC 10 million quality underwrite, quality assurance 2 years, because product itself quality problem pays unconditionally.

FEATURES

24 months guarantee
Zero Leakage
Bi-Directional
Low Torque,long life cycle
360°polished disc assures positive on-off
Epoxy coated body,smooth surface
Various kinds of materials,applicable to different medium

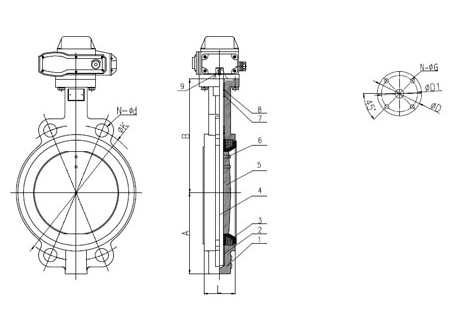

PARAMETERS

SIZE A B L ANSI 150B DIN PN 10 DIN PN 16 JIS 10K ISO 5211 TOP
FLANGE
mm in ΦK N-Φd ΦK N-Φd ΦK N-Φd ΦK N-Φd ΦD ΦD1 N-ΦG
40 1.5" 67 141 33 98.5 4-Φ16 110 4-Φ18 110 4-Φ18 105 4-Φ19 65 50 4-Φ8 F05
50 2" 67 141 43 120.6 4-Φ19 125 4-Φ18 125 4-Φ18 120 4-Φ19 65 50 4-Φ8 F05
65 2.5" 75 151 46 139.7 4-Φ19 145 4-Φ18 145 4-Φ18 140 4-Φ19 65 50 4-Φ8 F05
80 3" 95 160 46 152.4 4-Φ19 160 8-Φ18 160 8-Φ18 150 8-Φ19 65 50 4-Φ8 F05
100 4" 111 180 52 190.5 8-Φ19 180 8-Φ18 180 8-Φ18 175 8-Φ19 90 70 4-Φ10 F07
125 5" 129 193 56 215.9 8-Φ22.4 210 8-Φ18 210 8-Φ18 210 8-Φ23 90 70 4-Φ10 F07
150 6" 142 207 56 241.3 8-Φ22.4 240 8-Φ22 240 8-Φ22 240 8-Φ23 90 70 4-Φ10 F07
200 8" 170 240 60 298.4 8-Φ22.4 295 8-Φ22 295 12-Φ22 290 12-Φ23 125 102 4-Φ12 F10
250 10" 206 270 68 361.9 12-Φ25.4 350 12-Φ22 355 12-Φ26 355 12-Φ25 125 102 4-Φ12 F10
300 12" 238 316 78 431.8 12-Φ25.4 400 12-Φ22 410 12-Φ26 400 16-Φ25 125 102 4-Φ12 F10
350 14" 267 368 78 476.2 12-Φ28.4 460 16-Φ22 470 16-Φ26 445 16-Φ25 125 102 4-Φ12 F10
400 16" 298 400 86 539.7 16-Φ28.4 515 12-Φ26 525 16-Φ30 510 16-Φ27 175 140 4-Φ18 F14
450 18" 318 422 105 577.8 16-Φ31.8 565 20-Φ26 585 20-Φ30 565 20-Φ27 175 140 4-Φ18 F14
500 20" 349 479 130 635 20-Φ31.8 620 20-Φ26 650 20-Φ33 620 20-Φ27 175 140 4-Φ18 F14
600 24" 410 562 152 749.3 20-Φ35.1 725 20-Φ30 770 20-Φ36 730 24-Φ33 210 165 4-Φ22 F16
