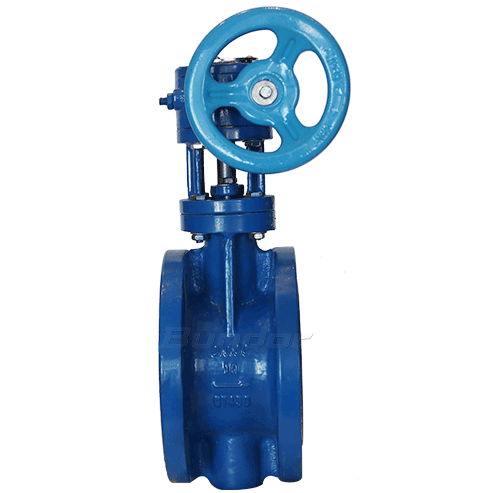

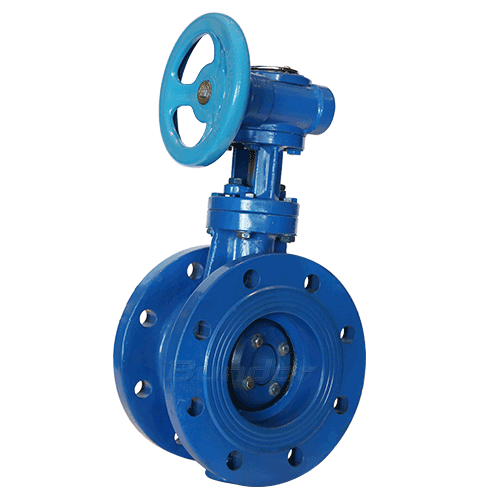

Three Eccentric Flange Butterfly valve

Size Range: 2~20"(DN50~DN500)

Pressure: 1.0~4.0 MPa

Body Materials: WCB , Stainless Steel

Seat Materials: SS, Stellite

Disc Materials: WCB , Stainless Steel

Stem Materials: 40Cr, Stainless Steel

INTRODUTCTION

ADVANTAGES

  • Strong pressure bearing capacity of valve body wall

    Valve body wall thickness to meet the requirements of GB 26640, thick thickness, pressure strength is guaranteed.

  • The seat has a long service life

    Valve seat is made of imported rubber, with 50% rubber content, long service life and more than 10000 opening and closing times.

  • Wide edge seat with reliable sealing performance

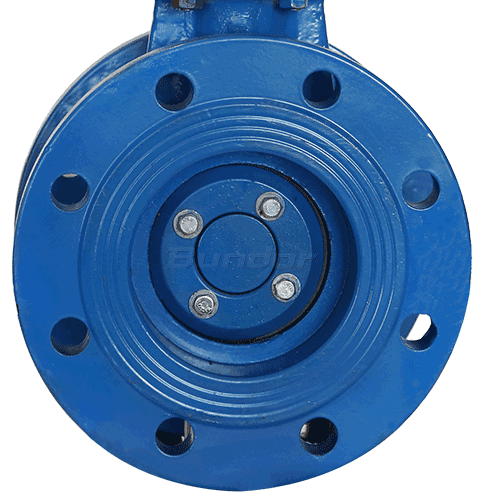

    Convenient installation of valve, wide contact surface with flange boss on pipeline, reliable sealing performance.

  • Valve shaft support is strong, axial sealing is reliable

    Valve shaft and valve body with 4 oil-free bearings, 3 O sealing, valve shaft support more powerful, more reliable axial sealing.

  • Heat-shrinkable film for independent packaging

    PE thermal shrinkable film is used to package the valve independently, and built-in desiccant, to isolate air dust, avoid damp pollution valve.

  • The bolt has strong corrosion resistance

    The bolt is made of 304 material, which has stronger corrosion resistance.

FEATURES

Standard Test :
Body Test: 1.5 times the working pressure with water. This test is performed after valve assembly and with disc in half position open, it is called as a body hydro test.
Seat Test: 1.1 times the working pressure with water.
Function / Operation Test: At the time of final inspection, each valve and its actuator (Flow-Control Lever / Gear / Pneumatic Actuator), under goes a complete operating test (Open/Close). This test carried out without pressure and at ambient temperature. It ensures the correct operation of the valve / actuator assembly with accessories such as solenoid valve, limit switches, air filter regulator etc.
Special Test: On request, any other test can be carried out according to special instruction by client.


PARAMETERS

el D343H-10 D343H-10P D343H-10R
D343H-16 D343H-16P D343H-16R
D343H-25 D343H-25P D343H-25R
D343H-40 D343H-40P D343H-40R
Working Pressure(MPa) 1.0~4.0
Temperature(℃) ≤425 ≤200
Medium Water, Oil, or Non corrosive nitric acid Acetic Acid
Material Body, Disc WCB CF8/304 CF3M/316L
Stem 2Cr13 304 316L
Body Sealing bead welding 507
Disc Sealing 304+flexible graphite 304+PTFE 304+PTFE
Packing flexible graphite PTFE PTFE

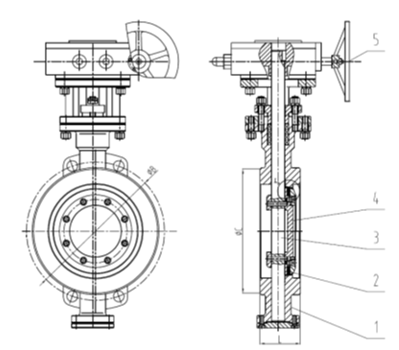

mm inch L H Dt343H Dt643H Dt943H PN4.0MPa
Short Pattern long Pattern H1 A1 B1 H2 A2 B2 H3 A3 B3 D D1 Z-d
50 2 108 150 112 350 180 200       530 250 255 165 125 4-18
65 2.5 112 170 115 370 180 200 625 355 92 550 250 255 185 145 8-18
80 3 114 180 120 380 180 200 625 355 92 565 250 255 200 160 8-18
100 4 127 190 138 420 180 200 645 355 92 600 250 255 235 190 8-22
125 5 140 200 164 460 180 200 675 550 138 640 250 255 270 220 8-26
150 6 140 210 175 555 270 280 715 550 138 705 300 315 300 250 8-26
200 8 152 230 208 605 270 280 800 550 138 775 300 315 375 320 12-30
250 10 165 250 243 680 270 280 850 550 138 945 300 315 450 385 12-33
300 12 178 270 283 800 380 420 925 450 220 1070 300 315 515 450 16-33
350 14 190 290 310 830 380 420 1035 450 220 1140 300 315 580 510 16-36
400 6 216 310 350 915 450 470 1070 650 280 1210 300 315 660 585 16-39
450 8 222 330 380 960 480 490 1190 650 280 1335 575 714 685 610 20-39
500 20 229 350 410 1020 480 490       1415 575 714 755 670 20-42
