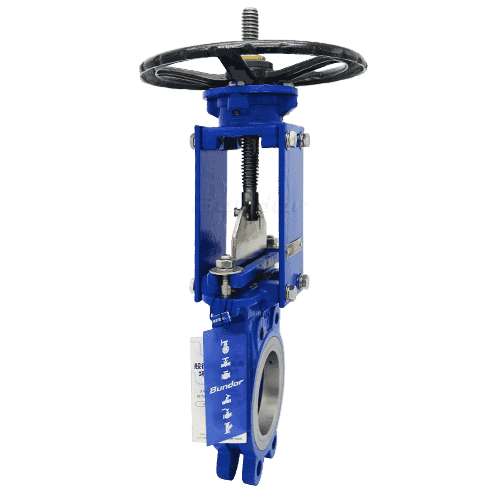

DIN Wafer Knife Gate Valve

Size Range: 2’’-16’’/DN50-400

Pressure: PN1.0/1.6mpa

Body Materials: WCB

Seat Materials: 2cr13stainless steel

Disc Materials: 304stainless steel

Stem Materials: 2cr13stainless steel

INTRODUTCTION

ADVANTAGES

  • Pay two back if one bad

    By CPIC 10 million quality underwrite, quality assurance 2 years, because product itself quality problem pays unconditionally.

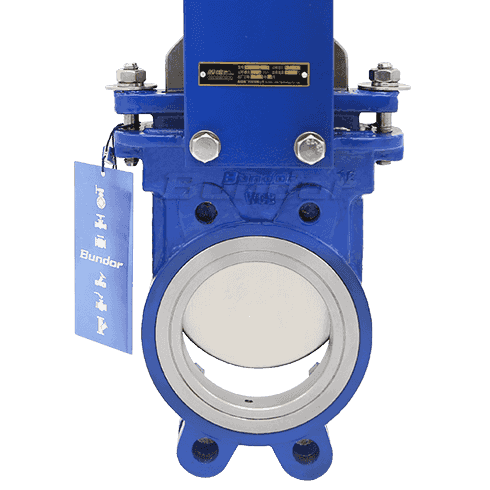

  • Wide edge seat with reliable sealing performance

    Convenient installation of valve, wide contact surface with flange boss on pipeline, reliable sealing performance.

  • Independent two-dimensional code identification

    Scanning code can query the inspection results of each stage in the production process of products to ensure the quality of products.

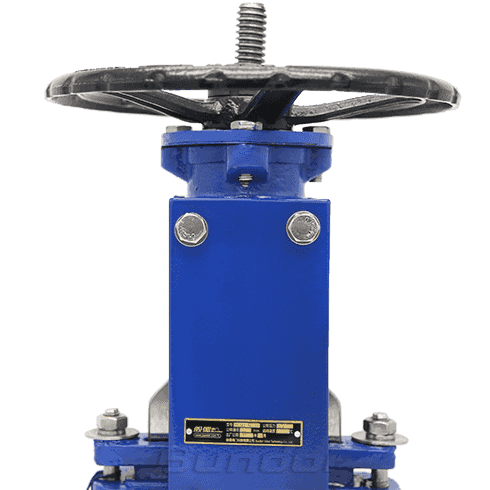

  • The sign has a beautiful appearance and strong connection

    Laser marking, clear writing, long life.Use stainless steel rivet to fix, the appearance is more beautiful, the connection is more firm.

  • Valve body spray brand epoxy resin plastic powder

    Valve body spray using brand aksu epoxy resin plastic powder, can deposit thicker thickness, melt curing adhesion is stronger.

  • Valve shaft support is strong, axial sealing is reliable

    Valve shaft and valve body with 4 oil-free bearings, 3 O sealing, valve shaft support more powerful, more reliable axial sealing.

FEATURES

Medium used: syrup, pulp, sewage, coal slurry, ash, slag water mixture.
Suitable temperature:below 80 degrees Celsius
Application field:municipal construction, water treatment, power, water supply and drainage, water conservancy projects.

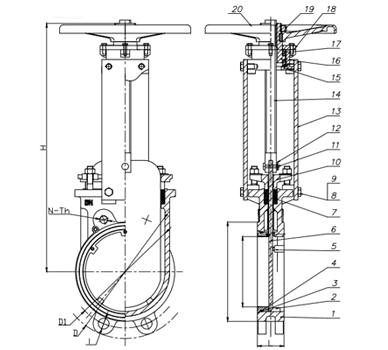

PARAMETERS

DN(mm) L D0 H1
50 48 180 295
65 48 200 315
80 51 220 360
100 51 240 400
125 57 260 450
150 57 280 510
200 70 300 585
250 70 340 695
300 76 380 795
350 76 400 950
400 89 450 1000
