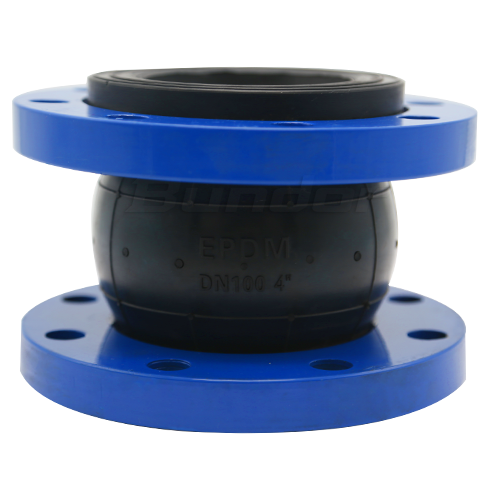

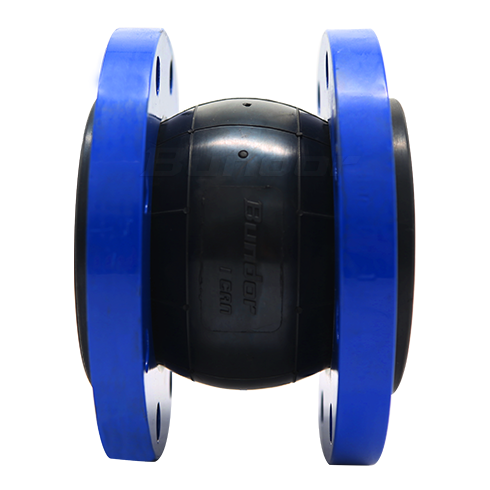

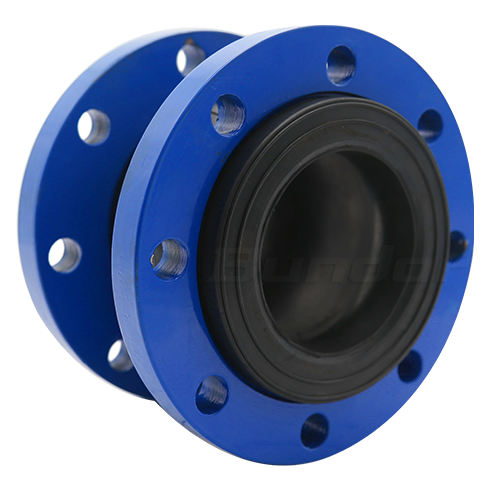

Size Range: 1.5''-24''/DN40-DN600
Pressure: 1.0/1.6MPa
Body Materials: EPDM composites/natural rubber /NBR/PTFE/ silicone rubber
Steel ring Materials: Carbon steel
Flanged Materials: Carbon steel
Valve body is solid body, same caliber weight is heavier than other manufacturers.
Valve shaft and valve body with 4 oil-free bearings, 3 O sealing, valve shaft support more powerful, more reliable axial sealing.
Valve body spray using brand aksu epoxy resin plastic powder, can deposit thicker thickness, melt curing adhesion is stronger.
The bolt is made of 304 material, which has stronger corrosion resistance.
All bonde products can provide the material inspection report of the main parts.
By CPIC 10 million quality underwrite, quality assurance 2 years, because product itself quality problem pays unconditionally.
Features:
Applicable medium：Water,air, oil
Suitable temperature：-15 degrees Celsius to 80 degrees Celsius
Application field： Municipal construction, chemical industry, water treatment, electricity, petroleum, water supply and drainage, water conservancy projects.

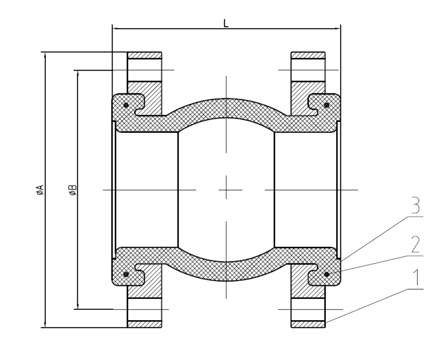

| DN | NPS | L | PN10 | PN16 | PN25 | |||
| ΦA | ΦB | ΦA | ΦB | ΦA | ΦB | |||
| 40 | 1 1/2'' | 95 | 150 | 110 | 150 | 110 | 150 | 110 |
| 50 | 2'' | 105 | 165 | 125 | 165 | 125 | 165 | 125 |
| 65 | 2 1/2'' | 115 | 185 | 145 | 185 | 145 | 185 | 145 |
| 80 | 3'' | 135 | 200 | 160 | 200 | 160 | 200 | 160 |
| 100 | 4'' | 150 | 220 | 180 | 220 | 180 | 235 | 190 |
| 125 | 5'' | 165 | 250 | 210 | 250 | 210 | 270 | 220 |
| 150 | 6'' | 180 | 285 | 240 | 285 | 240 | 300 | 250 |
| 200 | 8'' | 210 | 340 | 295 | 340 | 295 | 360 | 310 |
| 250 | 10'' | 230 | 395 | 350 | 405 | 355 | 425 | 370 |
| 300 | 12'' | 245 | 445 | 400 | 460 | 410 | 485 | 430 |
| 350 | 14'' | 255 | 505 | 460 | 520 | 470 | 555 | 490 |
| 400 | 16'' | 255 | 565 | 515 | 580 | 525 | 620 | 550 |
| 450 | 18'' | 255 | 615 | 565 | 640 | 585 | 670 | 600 |
| 500 | 20'' | 255 | 670 | 620 | 715 | 650 | 730 | 660 |
| 600 | 24'' | 260 | 780 | 725 | 840 | 770 | 845 | 770 |
