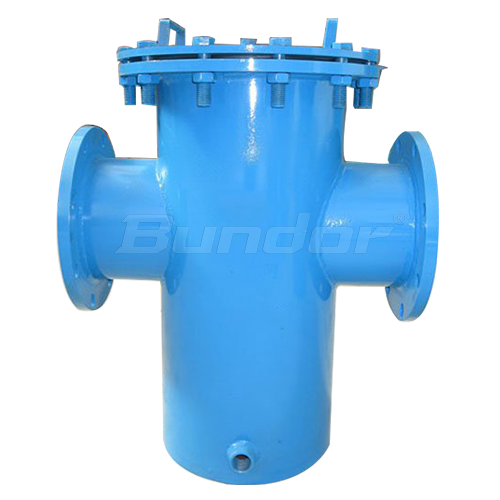

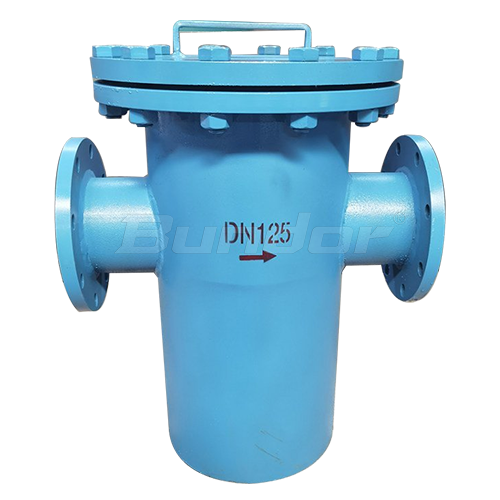

Basket strainer

Size Range: DN15-DN400

Pressure: PN16

Body Materials: carbon steel/ stainless steel

INTRODUTCTION

ADVANTAGES

  • High-quality carbon steel material

    The body is made of high-quality carbon steel, the material composition and performance meet the standards.

  • 304 screen

    The screen is made of stainless steel 304, which is corrosion-resistant and durable;

  • Welding seam is flat and firm

    The welding adopts robot automatic welding to form at one time, the welding seam is flat and firm;

  • Customized filter meshes

    The number of filter meshes can be customized according to customer needs;

  • Good sealing performance

    Using flexible graphite sealing gasket, high temperature resistance and good sealing performance;

  • Strict pressure test

    Each strainer will do pressure test according to national standards before leaving the factory.

FEATURES

Basket filter is mainly composed of connecting pipe, main pipe, filter basket, flange, flange cover and fasteners. When the medium enters the filter basket through the main pipe, the solid impurity particles will be blocked in the filter basket, the clean fluid passes through the filter basket and is discharged from the filter outlet. When cleaning is required, open screw plug at the bottom of the main pipe, drain the fluid, remove the flange cover, and re-install it after cleaning. Therefore, it is very convenient to use and maintain.

Model : SRB-16C
Name : Basket strainer
Size : DN15-DN400
Pressure : PN16
Working temperature :  0℃~300℃
Suitable medium : Water, steam, oil, etc.
Body : carbon steel/ stainless steel
Application : Water treatment, petrochemical,  environmental protection etc.




PARAMETERS

Name Design and manufacture Pressure Test  End flange
Reference standard SH/T 3411-2017 GB/T 13927-2008 HG/T 20592-2009

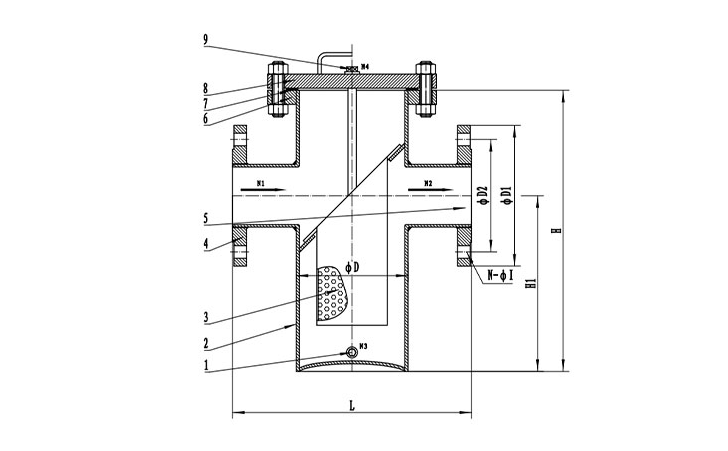

Name 1-sewage outlet 2-Body 3-screen 7-gasket
Material Q235 Q235 304  flexible graphite

SIZE
DN NPS L H H1 ΦD ΦD1 ΦD2 n-ΦI
15 1/2'' 180 260 160 76 95 65 4-14
20 3/4'' 180 260 160 76 105 75 4-14
25 1'' 180 260 160 76 115 85 4-14
32 1  1/4'' 200 270 160 76 140 100 4-18
40 1  1/2'' 260 300 170 108 150 110 4-18
50 2'' 260 300 170 108 165 125 4-18
65 2  1/2'' 330 360 240 133 185 145 8-18
80 3'' 340 400 250 159 200 160 8-18
100 4'' 400 470 300 219 220 180 8-18
125 5'' 480 550 360 273 250 210 8-18
150 6'' 500 630 420 273 285 240 8-22
200 8'' 560 780 530 325 340 295 12-22
250 10'' 660 930 640 426 405 355 12-26
300 12'' 750 1200 840 457 460 410 12-26
350 14'' 810 1370 920 508 520 470 16-26
400 16'' 900 1500 950 559 580 525 16-30
