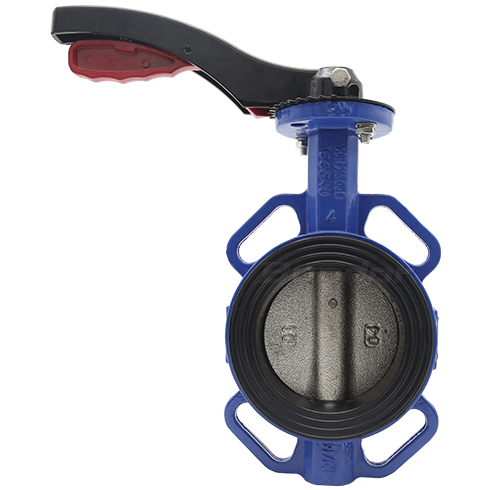

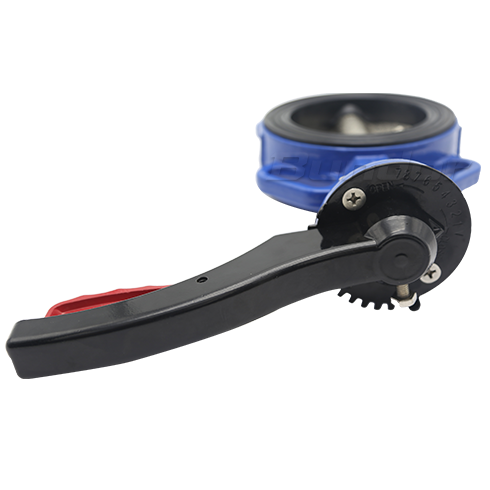

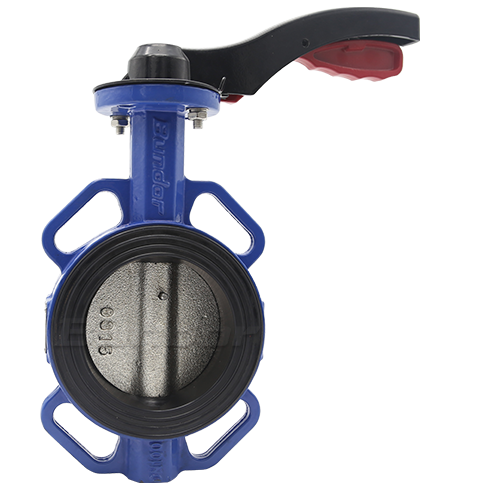

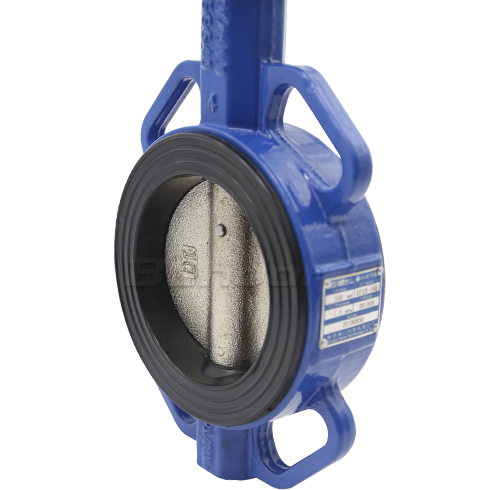

Aluminium Handle Wafer Butterfly Valve

Size Range: DN50-DN200

Pressure: PN16

Body Materials: Ductile Iron

Seat Materials: ([EPDM]/NBR) (50% adhesive content)

Disc Materials: Ductile Iron,CF8,CF8M

Stem Materials: 45#/420/304/316

INTRODUTCTION

ADVANTAGES

  • Bundor patented valve products

    Valve side flange conform to a variety of domestic and foreign standards of multiple pressures, easy connection, wide adaptability.

  • Strong pressure bearing capacity of valve body wall

    Valve body wall thickness to meet the requirements of GB 26640, thick thickness, pressure strength is guaranteed.

  • Spherification rate 3, suitable for higher working pressure

    Valve body is qt450-10 material, mechanical properties are stronger, the same thickness of tensile strength is twice the iron body.

  • The seat has a long service life

    Valve seat is made of imported rubber, with 50% rubber content, long service life and more than 10000 opening and closing times.

  • Wide edge seat with reliable sealing performance

    Convenient installation of valve, wide contact surface with flange boss on pipeline, reliable sealing performance.

  • Solid valve body, more stable

    Valve body is solid body, same caliber weight is heavier than other manufacturers.

FEATURES

Applicable medium:Clear water and neutral liquid
Suitable temperature:- 20 ~ 120 ℃
Application field:Municipal construction, water conservancy projects, water supply and drainage, water treatment, etc

PARAMETERS

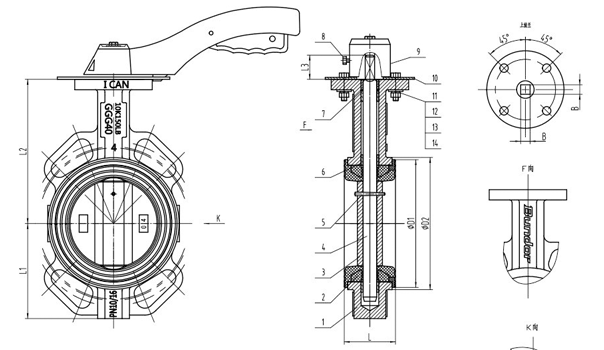

Parts 1 2 3 4 5 6
Name Body Seat Disc Stem O-rings Handle
Material  DI EPDM/NBR  DI/SS304/SS316 SS304/SS316 EPDM/NBR Aluminum

NPS DN L D1 D2 L1 L2 L3 B ISO 5211 Top Flange
2″ DN50 48 86 92.3 75 129 24 9 F05
2.5″ DN65 52 101 107 82 136 24 9 F05
3″ DN80 53 116 122 99 153 24 9 F05
4″ DN100 58 148 153 110 167 24 11 F07
5″ DN125 62 174 179 125 193 24 14 F07
6″ DN150 62 204 208.4 145 209 24 14 F07
8″ DN200 65 252 262.3 170 251 30 17 F10
