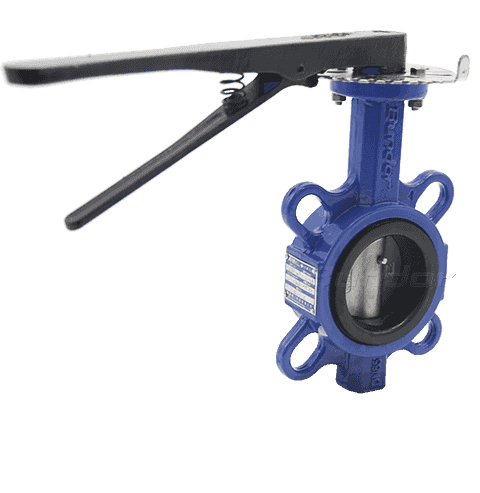

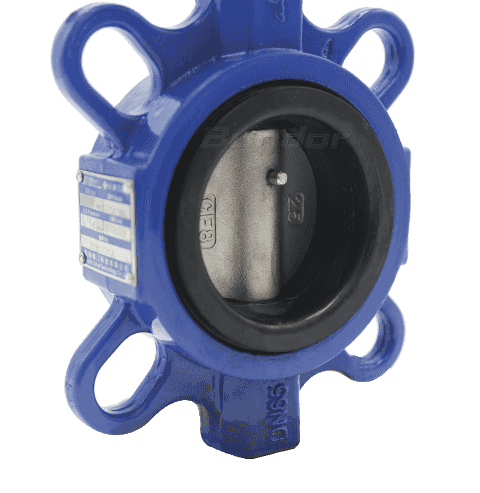

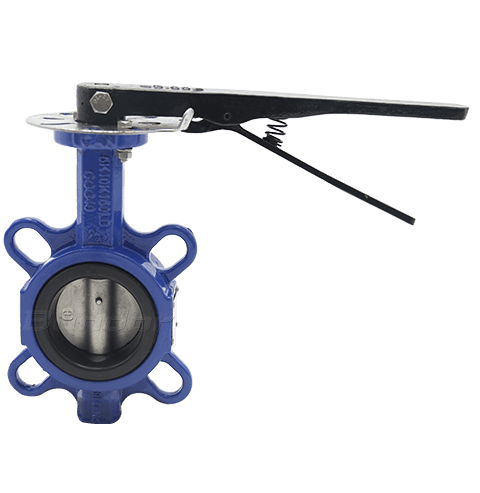

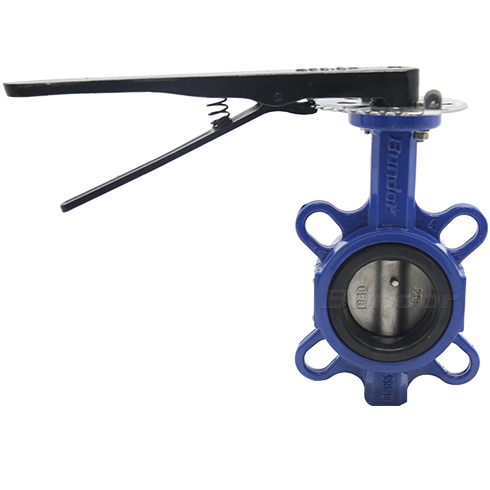

Manual Operated DI Body Wafer Butterlfy Valve

Size Range: 2.5''/DN65

Pressure: 5K/10K/150LB

Body Materials: Ductile Iron

Seat Materials: EPDM

Disc Materials: 304stainless steel

Stem Materials: 304stainless steel

INTRODUTCTION

ADVANTAGES

  • Solid valve body, more stable

    Valve body is solid body, same caliber weight is heavier than other manufacturers.

  • Ultrasonic cleaning before packaging

    Eliminate impurities in the valve body, ensure the cleanliness of the valve and prevent the valve itself to pipe water pollution.

  • Strong pressure bearing capacity of valve body wall

    Valve body wall thickness to meet the requirements of GB 26640, thick thickness, pressure strength is guaranteed.

  • The sign has a beautiful appearance and strong connection

    Laser marking, clear writing, long life.Use stainless steel rivet to fix, the appearance is more beautiful, the connection is more firm.

  • Provide material inspection report of main parts

    All bonde products can provide the material inspection report of the main parts.

  • Pay two back if one bad

    By CPIC 10 million quality underwrite, quality assurance 2 years, because product itself quality problem pays unconditionally.

FEATURES

Applicable medium:fresh water, sewage, sea water, weak acid and alkali, air, steam, etc.
Suitable temperature:according to seat material
Application field: municipal construction, water treatment, power, water supply and drainage, water conservancy projects.

PARAMETERS

Parts 1 2 3 4 5 6
Name Body Seat Disc Stem O-rings Handle
Material  DI EPDM SS304 SS304 NBR Iron

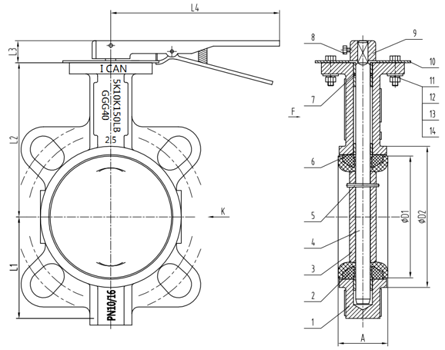

DN NPS A D1 D2 L1 L2 L3 L4 B Top Flange
DN50 2" 45 73.3 92.3 75 129 24 220 9 F05
DN65 2.5" 49 86 107 82 136 24 220 9 F05
DN80 3" 49 100.9 122 99 153 24 220 9 F05
DN100 4" 55 132 153 110 167 24 250 11 F07
DN125 5" 58.5 156 179 125 193 24 250 14 F07
DN150 6" 59 185.4 208.4 145 209 24 302 14 F07
DN200 8" 64.5 235.2 262.3 170 251 30 360 17 F10
