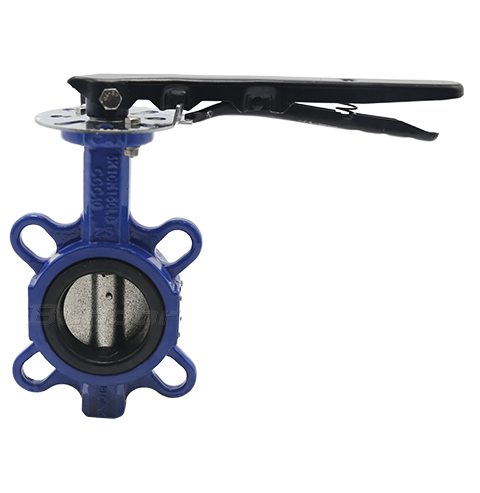

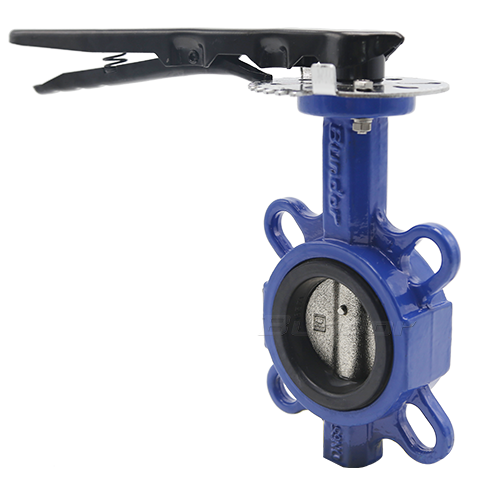

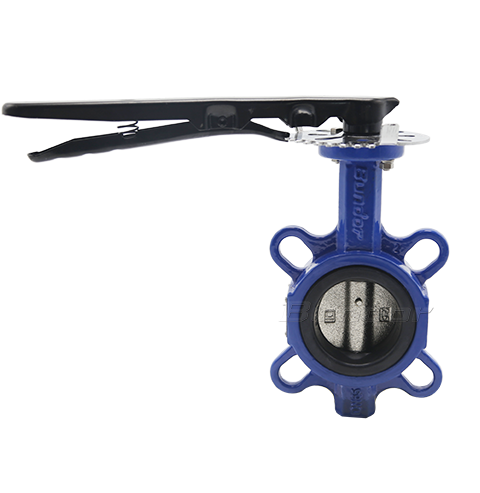

Handle Operated Universal Butterfly Valve

Size Range: 2''/DN65

Pressure: 5K/10K150LB

Body Materials: Ductile Iron

Seat Materials: EPDM

Disc Materials: Ductile Iron

Stem Materials: stainless steel

INTRODUTCTION

ADVANTAGES

  • The seat has a long service life

    Valve seat is made of imported rubber, with 50% rubber content, long service life and more than 10000 opening and closing times.

  • Valve body spray brand epoxy resin plastic powder

    Valve body spray using brand aksu epoxy resin plastic powder, can deposit thicker thickness, melt curing adhesion is stronger.

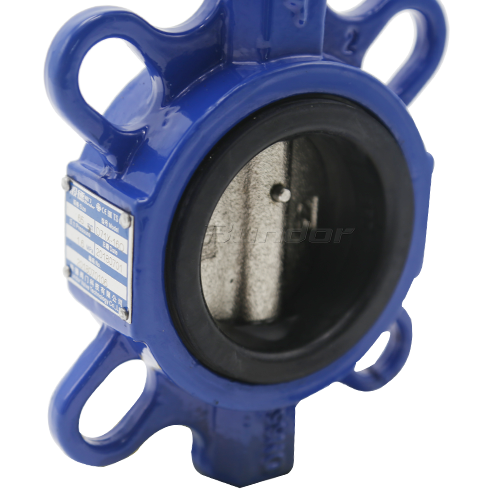

  • The position of signboard is humanized

    The position of the signboard is humanized and set on both sides of the valve body for users to view after installation.

  • The sign has a beautiful appearance and strong connection

    Laser marking, clear writing, long life.Use stainless steel rivet to fix, the appearance is more beautiful, the connection is more firm.

  • Disc pin has high strength and abrasion resistance

    The pin adopts tempering treatment, high strength, abrasion resistance, safe and reliable connection.

  • Provide material inspection report of main parts

    All bonde products can provide the material inspection report of the main parts.

FEATURES

Applicable medium:fresh water, sewage, sea water, weak acid and alkali, air, steam, etc.
Suitable temperature:according to seat material
Application field: municipal construction, water treatment, power, water supply and drainage, water conservancy projects.

PARAMETERS

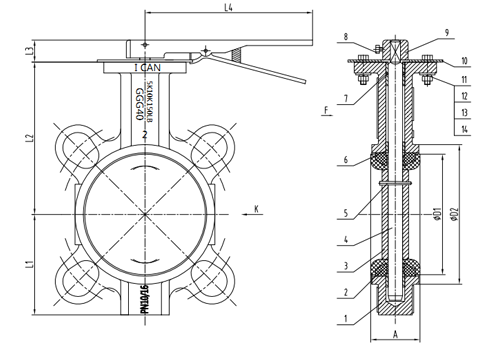

Parts 1 2 3 4 5 6
Name Body Seat Disc Stem O-rings Handle
Material  DI EPDM SS304 SS304 NBR Iron

DN NPS A D1 D2 L1 L2 L3 L4 B Top Flange
DN50 2" 45 73.3 92.3 75 129 24 220 9 F05
DN65 2.5" 49 86 107 82 136 24 220 9 F05
DN80 3" 49 100.9 122 99 153 24 220 9 F05
DN100 4" 55 132 153 110 167 24 250 11 F07
DN125 5" 58.5 156 179 125 193 24 250 14 F07
DN150 6" 59 185.4 208.4 145 209 24 302 14 F07
DN200 8" 64.5 235.2 262.3 170 251 30 360 17 F10
