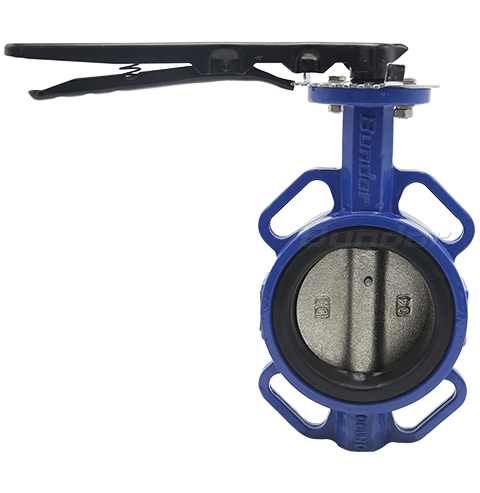

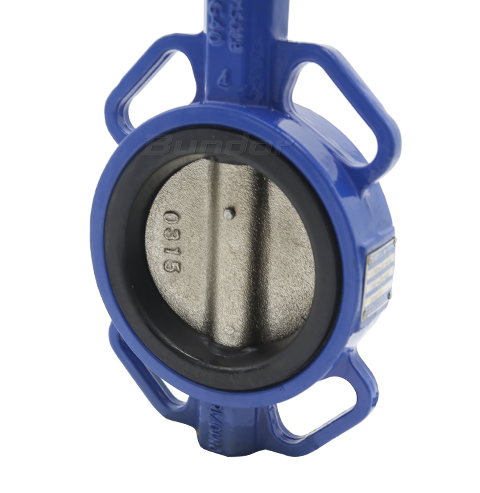

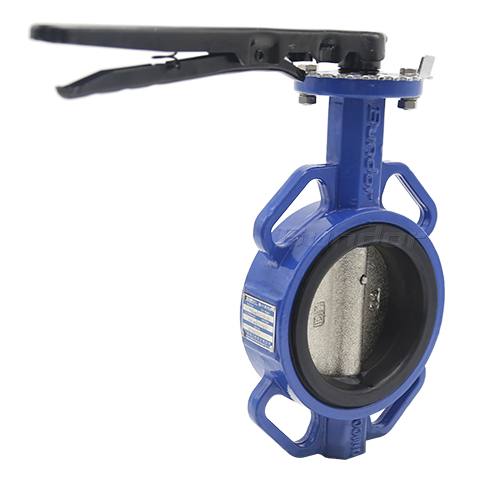

Ductile Iron Body Butterfly Valves

Size Range: 4''/DN100

Pressure: 10K/150LB

Body Materials: Ductile Iron

Seat Materials: EPDM

Disc Materials: Ductile Iron

Stem Materials: stainless steel

INTRODUTCTION

ADVANTAGES

  • Spherification rate 3, suitable for higher working pressure

    Valve body is qt450-10 material, mechanical properties are stronger, the same thickness of tensile strength is twice the iron body.

  • Valve shaft support is strong, axial sealing is reliable

    Valve shaft and valve body with 4 oil-free bearings, 3 O sealing, valve shaft support more powerful, more reliable axial sealing.

  • Ultrasonic cleaning before packaging

    Eliminate impurities in the valve body, ensure the cleanliness of the valve and prevent the valve itself to pipe water pollution.

  • The position of signboard is humanized

    The position of the signboard is humanized and set on both sides of the valve body for users to view after installation.

  • Heat-shrinkable film for independent packaging

    PE thermal shrinkable film is used to package the valve independently, and built-in desiccant, to isolate air dust, avoid damp pollution valve.

  • Disc pin has high strength and abrasion resistance

    The pin adopts tempering treatment, high strength, abrasion resistance, safe and reliable connection.

FEATURES

Applicable medium:fresh water, sewage, sea water, weak acid and alkali, air, steam, etc.
Suitable temperature:according to seat material
Application field: municipal construction, water treatment, power, water supply and drainage, water conservancy projects.

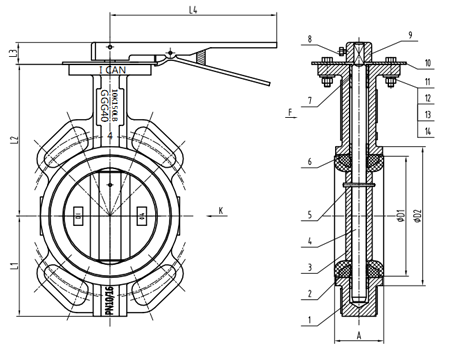

PARAMETERS

Parts 1 2 3 4 5 6
Name Body Seat Disc Stem O-rings Handle
Material  DI EPDM  DI 45#Steel NBR Iron

DN NPS A D1 D2 L1 L2 L3 L4 B Top Flange
DN50 2" 45 73.3 92.3 75 129 24 220 9 F05
DN65 2.5" 49 86 107 82 136 24 220 9 F05
DN80 3" 49 100.9 122 99 153 24 220 9 F05
DN100 4" 55 132 153 110 167 24 250 11 F07
DN125 5" 58.5 156 179 125 193 24 250 14 F07
DN150 6" 59 185.4 208.4 145 209 24 302 14 F07
DN200 8" 64.5 235.2 262.3 170 251 30 360 17 F10
