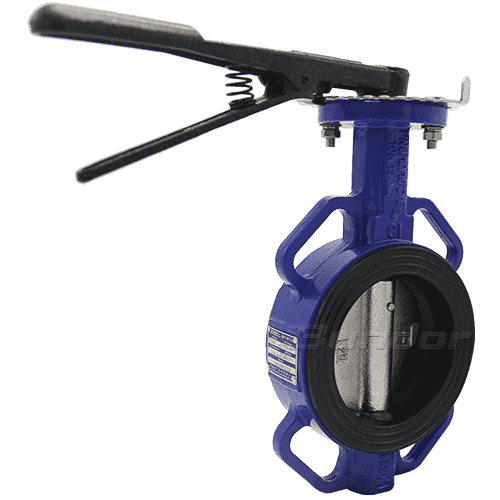

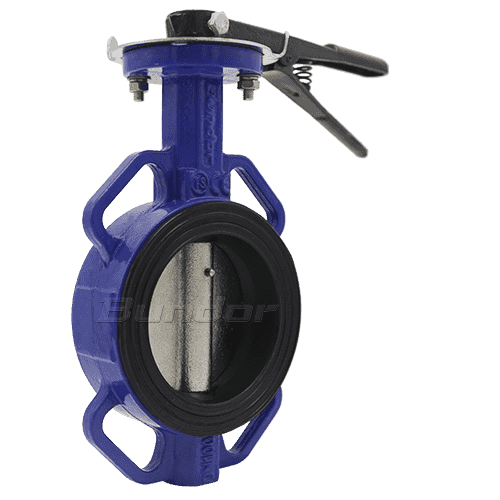

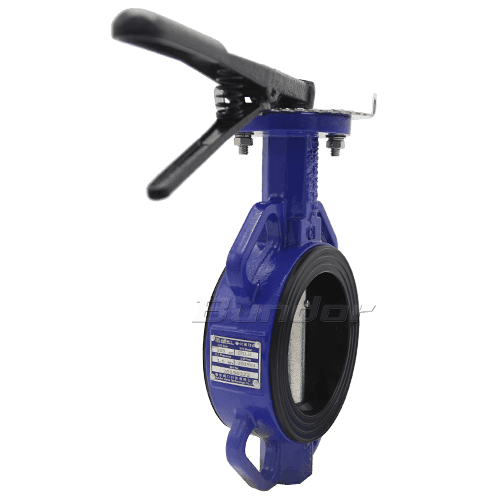

Cast Iron Universal Butterfly Valves

Size Range: DN50-DN200

Pressure: PN16

Body Materials: Cast iron

Seat Materials: ([EPDM]/NBR) (50% adhesive content)

Disc Materials: Ductile Iron,CF8,CF8M

Stem Materials: 45#/420/316/304

INTRODUTCTION

ADVANTAGES

  • Bundor patented valve products

    Valve side flange conform to a variety of domestic and foreign standards of multiple pressures, easy connection, wide adaptability.

  • Strong pressure bearing capacity of valve body wall

    Valve body wall thickness to meet the requirements of GB 26640, thick thickness, pressure strength is guaranteed.

  • The bolt has strong corrosion resistance

    The bolt is made of 304 material, which has stronger corrosion resistance.

  • Disc pin has high strength and abrasion resistance

    The pin adopts tempering treatment, high strength, abrasion resistance, safe and reliable connection.

  • Independent two-dimensional code identification

    Scanning code can query the inspection results of each stage in the production process of products to ensure the quality of products.

  • Provide material inspection report of main parts

    All bonde products can provide the material inspection report of the main parts.

FEATURES

Applicable medium:Clear water and neutral liquid
Suitable temperature:- 20 ~ 120 ℃
Application field:Municipal construction, water conservancy projects, water supply and drainage, water treatment, etc.

PARAMETERS

Parts 1 2 3 4 5 6
Name Body Seat Disc Stem O-rings Handle
Material  CI EPDM  DI SS304 EPDM/NBR Iron

NPS DN L D1 D2 L1 L2 L3 L4 B ISO 5211 Top Flange
2″ DN50 48 86 92.3 75 129 24 240 9 F05
2.5″ DN65 52 101 107 82 136 24 240 9 F05
3″ DN80 53 116 122 99 153 24 240 9 F05
4″ DN100 58 148 153 110 167 24 270 11 F07
5″ DN125 62 174 179 125 193 24 320 14 F07
6″ DN150 62 204 208.4 145 209 24 320 14 F07
8″ DN200 65 252 262.3 170 251 30 380 17 F10
