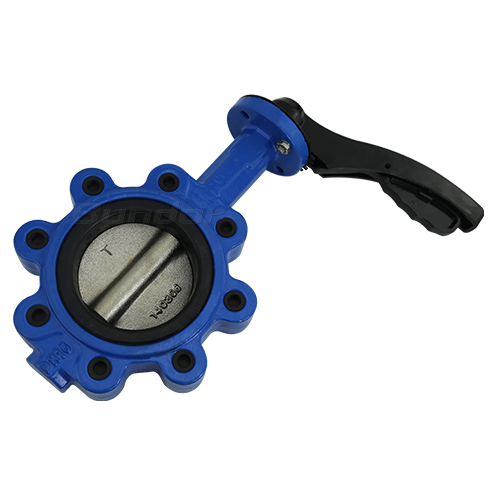

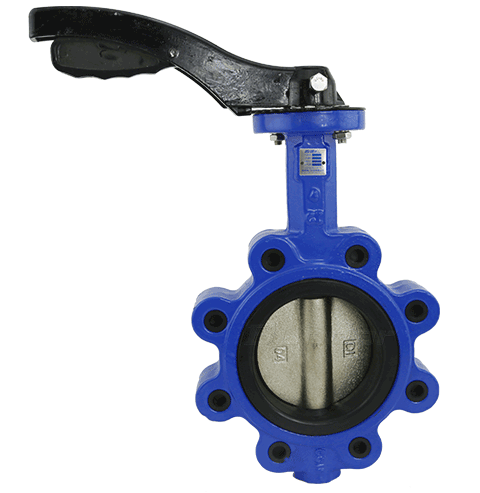

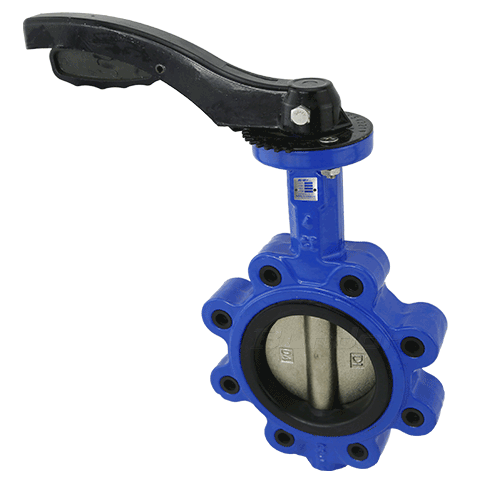

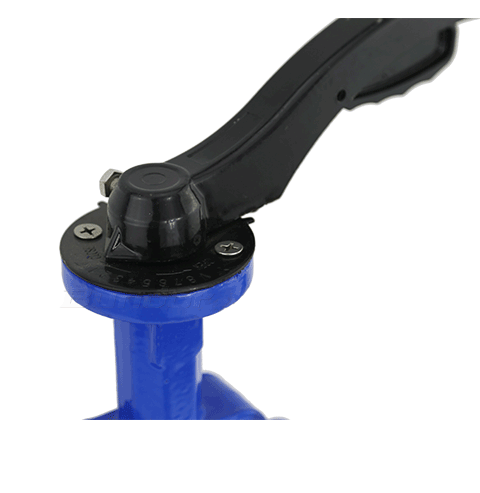

Aluminum Handle Lug Butterfly Valve

Size Range: 2~8"(DN50~DN200)

Pressure: PN10, PN16, Class125

Body Materials: Cast Iron, Ductile Iron

Seat Materials: NBR, EPDM, VITON, PTFE

Disc Materials: Ductile Iron, WCB, CF8,CF8M, Al-bronze C958

Stem Materials: SS416, SS304, SS316

INTRODUTCTION

ADVANTAGES

  • Bundor patented valve products

    Valve side flange conform to a variety of domestic and foreign standards of multiple pressures, easy connection, wide adaptability.

  • Strong pressure bearing capacity of valve body wall

    Valve body wall thickness to meet the requirements of GB 26640, thick thickness, pressure strength is guaranteed.

  • The seat has a long service life

    Valve seat is made of imported rubber, with 50% rubber content, long service life and more than 10000 opening and closing times.

  • Wide edge seat with reliable sealing performance

    Convenient installation of valve, wide contact surface with flange boss on pipeline, reliable sealing performance.

  • Solid valve body, more stable

    Valve body is solid body, same caliber weight is heavier than other manufacturers.

  • Valve shaft support is strong, axial sealing is reliable

    Valve shaft and valve body with 4 oil-free bearings, 3 O sealing, valve shaft support more powerful, more reliable axial sealing.

FEATURES

Adoptive Standards:
Valve Design: API 609,MSS SP-67
Face To Face: API 609,MSS SP-67,DIN3202, BS EN558-1
Pressure Test: API 598
Flange Drilling: ANSI B16.1 class125, BS4504 PN10/PN16, DIN2501 PN10/PN16
Top Flange: ISO5211

PARAMETERS

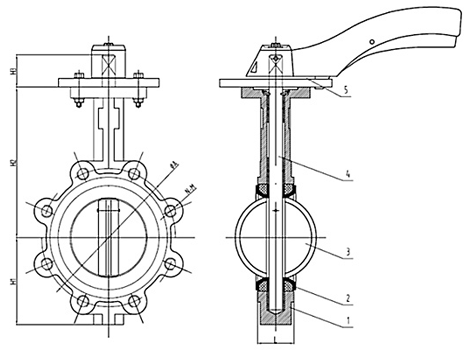

SIZE A B C L ANSI 150B DIN PN 10 DIN PN 16 JIS 10K ISO 5211 Top Flange
mm in øK N-M øK N-M øK N-M øK N-M øD øD1 N-ød
40 1.5" 70 164 32 33 98.5 4-1/2"-13UNC-2B 110 4-M16 110 4-M16 105 4-M16 65 50 4-ø8 F05
50 2" 80 169 32 43 120.6 4-5/8"-11UNC-2B 125 4-M16 125 4-M16 120 4-M16 65 50 4-ø8 F05
65 2 1/2" 89 176 32 46 139.7 4-5/8"-11UNC-2B 145 4-M16 145 4-M16 140 4-M16 65 50 4-ø8 F05
80 3" 95 183 32 46 152.4 4-5/8"-11UNC-2B 160 8-M16 160 8-M16 150 8-M16 65 50 4-ø8 F05
100 4" 114 201 32 52 190.5 8-5/8"-11UNC-2B 180 8-M16 180 8-M16 175 8-M16 90 70 4-ø10 F07
125 5" 127 214 32 56 215.9 8-3/4"-10UNC-2B 210 8-M16 210 8-M16 210 8-M20 90 70 4-ø10 F07
150 6" 139 229 32 56 241.3 8-3/4"-10UNC-2B 240 8-M20 240 8-M20 240 8-M20 90 70 4-ø10 F07
200 8" 175 257 45 60 298.4 8-3/4"-10UNC-2B 295 8-M20 295 12-M20 290 12-M20 125 102 4-ø12 F10
250 10" 203 280 45 68 361.9 12-7/8"-9UNC-2B 350 12-M20 355 12-M24 355 12-M22 125 102 4-ø12 F10
300 12" 242 327 45 78 431.8 12-7/8"-9UNC-2B 400 12-M20 410 12-M24 400 16-M22 125 102 4-ø12 F10
