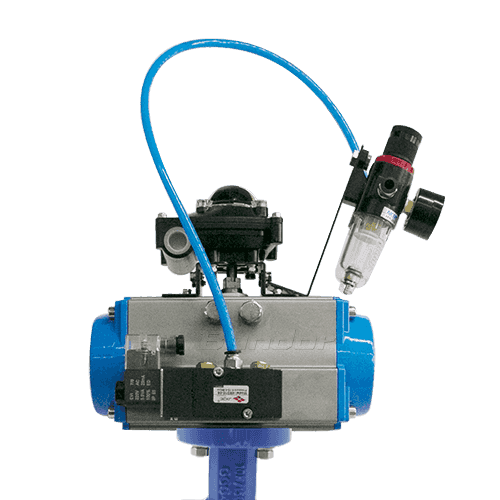

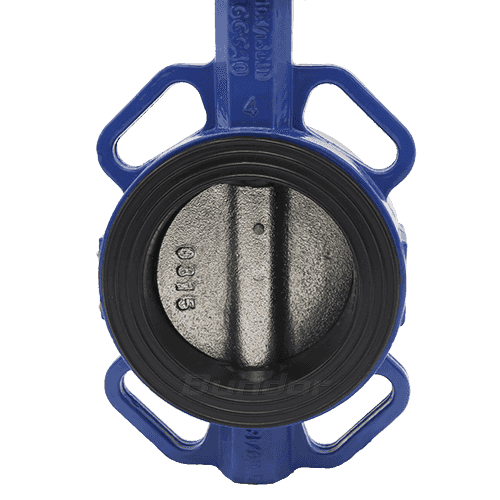

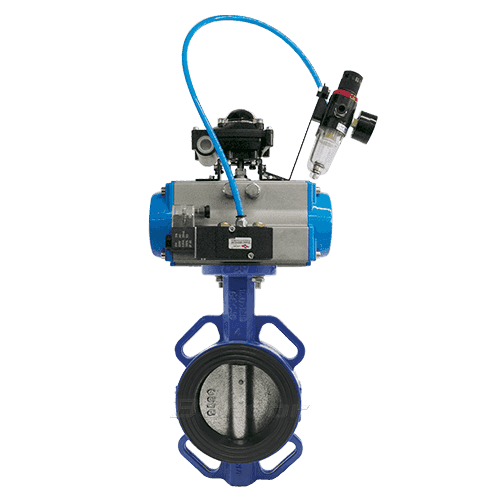

Pneumatic Actuated Butterfly Valve

Size Range: 2''-44''/DN50-DN1200

Pressure: 5K/10K/150LB

Body Materials: CI/DI/WCB/CF3/ CF3M/CF8/ CF8M

Seat Materials: NBR/EPDM/PTFE/SI

Disc Materials: DI/WCB/CF3/ CF3M/CF8/CF8M/ C954

Stem Materials: 45#/410/ 2Cr13/Cr13/304/316stainless steel

INTRODUTCTION

ADVANTAGES

  • Spherification rate 3, suitable for higher working pressure

    Valve body is qt450-10 material, mechanical properties are stronger, the same thickness of tensile strength is twice the iron body.

  • Strong pressure bearing capacity of valve body wall

    Valve body wall thickness to meet the requirements of GB 26640, thick thickness, pressure strength is guaranteed.

  • Bundor patented valve products

    Valve side flange conform to a variety of domestic and foreign standards of multiple pressures, easy connection, wide adaptability.

  • The seat has a long service life

    Valve seat is made of imported rubber, with 50% rubber content, long service life and more than 10000 opening and closing times.

  • Solid valve body, more stable

    Valve body is solid body, same caliber weight is heavier than other manufacturers.

  • Valve shaft support is strong, axial sealing is reliable

    Valve shaft and valve body with 4 oil-free bearings, 3 O sealing, valve shaft support more powerful, more reliable axial sealing.

FEATURES

Pneumatic butterfly valve:
Valve Design: API 609, MSS SP-67
Face To Face: API 609, MSS SP-67, DIN3202, BS EN558-1
Pressure Test: API 598
Flange Drilling: ANSI B16.1 class125, BS4504 PN10/PN16, DIN2501 PN10/PN16
Top Flange: ISO5211

PARAMETERS

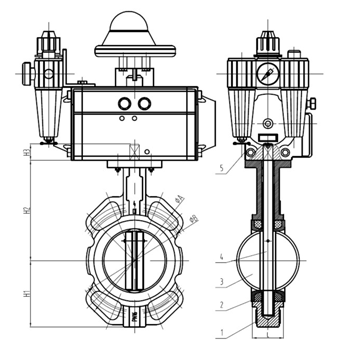

Parts 1 2 3 4
Name Body Seat Disc Stem
Material DI EPDM SS304 SS410

SIZE A B L ANSI 150B DIN PN 10   DIN PN 16 JIS 10K ISO 5211 Top
 Flange
mm in øK N-ød øK N-ød øK N-ød øK N-ød øD øD1 N-øG
40 1.5" 67 141 33 98.5 4-Φ16 110 4-Φ18 110 4-Φ18 105 4-Φ19 65 50 4-Φ8 F05
50 2" 67 141 43 120.6 4-Φ19 125 4-Φ18 125 4-Φ18 120 4-Φ19 65 50 4-Φ8 F05
65 2.5" 75 151 46 139.7 4-Φ19 145 4-Φ18 145 4-Φ18 140 4-Φ19 65 50 4-Φ8 F05
80 3" 95 160 46 152.4 4-Φ19 160 8-Φ18 160 8-Φ18 150 8-Φ19 65 50 4-Φ8 F05
100 4" 111 180 52 190.5 8-Φ19 180 8-Φ18 180 8-Φ18 175 8-Φ19 90 70 4-Φ10 F07
125 5" 129 193 56 215.9 8-Φ22.4 210 8-Φ18 210 8-Φ18 210 8-Φ23 90 70 4-Φ10 F07
150 6" 142 207 56 241.3 8-Φ22.4 240 8-Φ22 240 8-Φ22 240 8-Φ23 90 70 4-Φ10 F07
200 8" 170 240 60 298.4 8-Φ22.4 295 8-Φ22 295 12-Φ22 290 12-Φ23 125 102 4-Φ12 F10
250 10" 206 270 68 361.9 12-Φ25.4 350 12-Φ22 355 12-Φ26 355 12-Φ25 125 102 4-Φ12 F10
300 12" 238 316 78 431.8 12-Φ25.4 400 12-Φ22 410 12-Φ26 400 16-Φ25 125 102 4-Φ12 F10
350 14" 267 368 78 476.2 12-Φ28.4 460 16-Φ22 470 16-Φ26 445 16-Φ25 125 102 4-Φ12 F10
400 16" 298 400 86 539.7 16-Φ28.4 515 12-Φ26 525 16-Φ30 510 16-Φ27 175 140 4-Φ18 F14
450 18" 318 422 105 577.8 16-Φ31.8 565 20-Φ26 585 20-Φ30 565 20-Φ27 175 140 4-Φ18 F14
500 20" 349 479 130 635 20-Φ31.8 620 20-Φ26 650 20-Φ33 620 20-Φ27 175 140 4-Φ18 F14
600 24" 410 562 152 749.3 20-Φ35.1 725 20-Φ30 770 20-Φ36 730 24-Φ33 210 165 4-Φ22 F16
