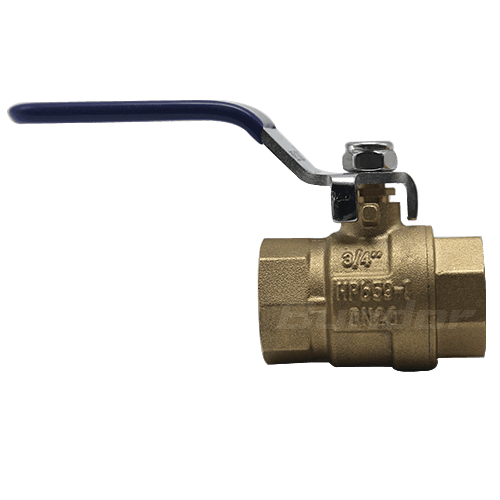

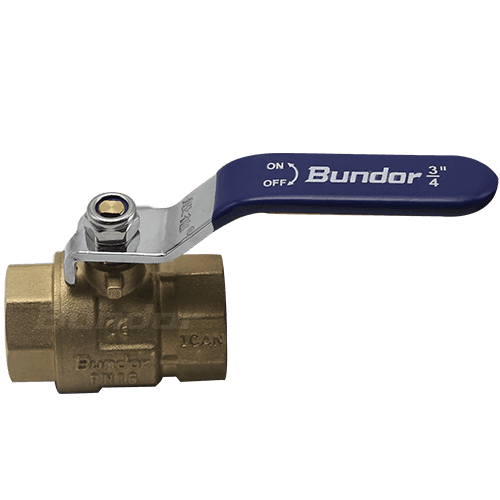

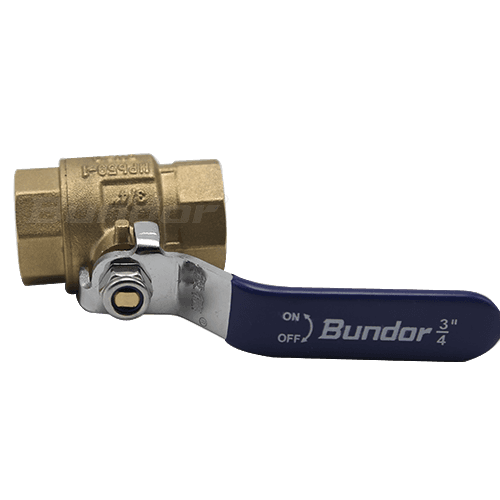

Brass Threaded Ball Valve

Size Range: 1/2’’-2’’/DN15-50

Pressure: PN16/25

Body Materials: Brass

Seat Materials: PTFE

Stem Materials: Brass

INTRODUTCTION

ADVANTAGES

  • Pay two back if one bad

    By CPIC 10 million quality underwrite, quality assurance 2 years, because product itself quality problem pays unconditionally.

  • Mill test report can be provided.

    Material meet the requirements of the national standards. Mill test report can be provided.

  • High sealing precision

    High sealing precision, no need to use sealing oil, valve cavity is clean and hygienic.

  • High-quality lead brass material

    High-quality lead brass material and hot forging process can effectively prevent defects such as pores, shrinkage holes, pinholes, etc.

  • Each valve must be tested

    Each valve must be tested in accordance with national standards. Unqualified products will never be shipped.

  • Two years warranty

    Two years warranty, pay two back if one. Any quality problem of the product itself, we will pay without conditions.

FEATURES

Model: Q11F-16T
Body:Brass
Ball:Brass
Seat:PTFE
Name:Brass Threaded Ball Valve
Size: DN15-DN50
Pressure: PN16/25
Working Temperature: -10℃~120℃
Suitable Medium: Water, Steam, Oil, Nitric Acid,  Acetic Acid, etc
Body: Brass
Application: Municipal construction, water conservancy projects, electricity, water supply and drainage, water treatment, petroleum

PARAMETERS

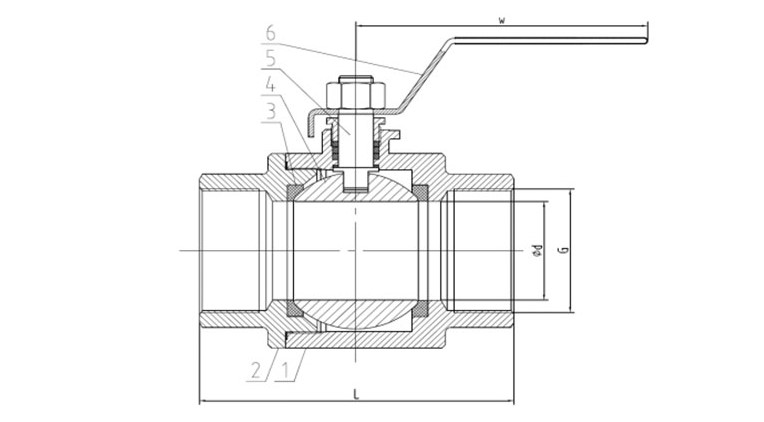

Name 1-Body 2-Bonnet 3-Seat 4-Ball 5-Shaft 6-Lever
Material Brass HPb59-1 Brass HPb59-1 PTFE Brass HPb57-3 Brass Q235
DN NPS(Inch) G L W
15 1/2'' 1/2 51 90.7
20 3/4'' 3/4 57 90.7
25 1'' 1 69.8 110.7
32 1  1/4'' 1  1/4 81 124
40 1  1/2'' 1  1/2 92 124
50 2'' 2 108 153
